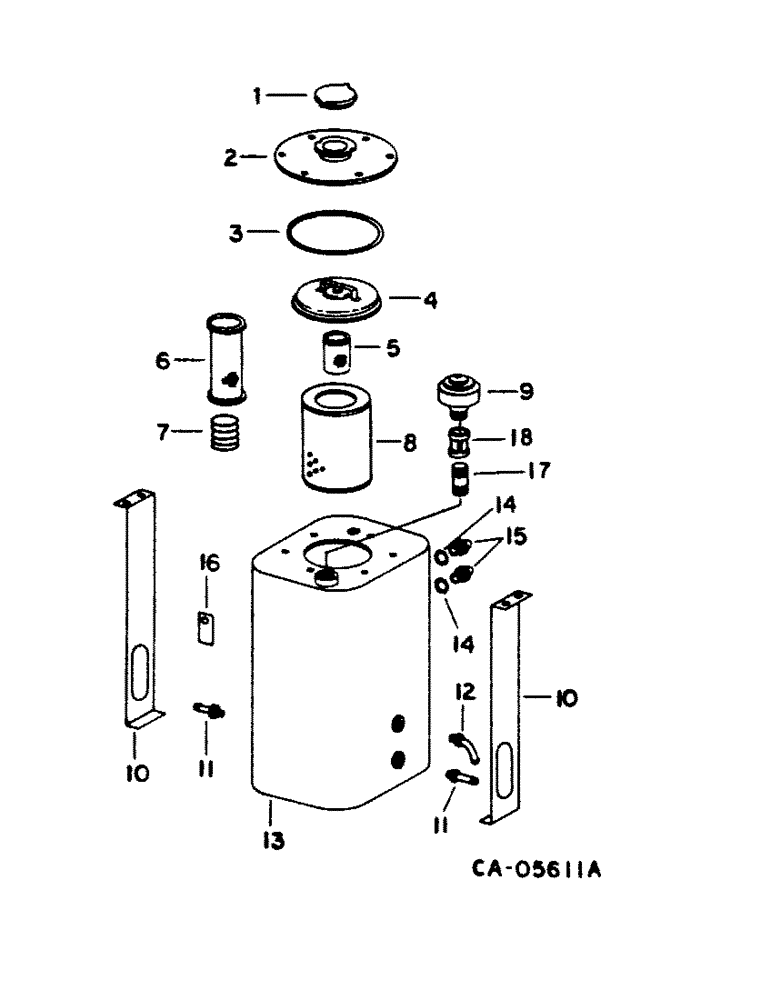

Запчасти Case IH 1440 (10-74) - HYDRAULICS, HYDRAULIC RESERVOIR, S/N 20000 AND BELOW (07) - HYDRAULICS

196824C91

TANK

ASSY, hydraulic oil or

1шт.

183991C91

HYD TUBE

TANK ASSY, hydraulic oil, includes ref nos. 1 thru 8, and 13 thru 15

1шт.

1

361705R91

COVER

CAP ASSY, cover

1шт.

2

179491C1

COVER

ASSY, used w/196824C91

1шт.

2

1301115C1

COVER ASSY

used w/183991C91

1шт.

3

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

cover, used w/196824C91

1шт.

3

3042933R1

O-RING,-437, 70 Duro, 5.975" ID x .275" Thk

cover, used w/183991C91

1шт.

4

173131C1

COVER ASSY

LID ASSY, filter

1шт.

5

179489C1

FILTER, ENGINE OIL

FILTER, cover

1шт.

6

173929C1

STRAINER ELEMENT

STRAINER

1шт.

7

173930C1

SPRING

port

1шт.

8

386120R91

FILTER CARTRIDGE

ELEMENT ASSY

1шт.

9

923745C91

BREATHER ASSY.

BREATHER FILTER ASSY

1шт.

10

193291C1

SUPPORT

hydraulic reservoir

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

11

FITTING, refer to this group under hydrostatic motor, pump and header lift diagram

1шт.

12

ELBOW, charge pump suction, refer to this group under hydrostatic motor, pump and header lift diagram

1шт.

13

TANK ASSY, hydraulic oil, not serviced separately, order tank assy, 196824C91

1шт.

14

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

oil lever sight glass

2шт.

15

244600R92

SIGHTGLASS

GLASS, oil lever sight

2шт.

16

159752C1

SUPPORT

hydraulic reservoir clamp

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

27804R1

HOSE CLAMP,#180, 10.88/11.75 Type F Worm

CLAMP, hydraulic reservoir mounting, not illustrated

2шт.

17

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE, 3/4 x 2-1/2 pln long pipe, breather extension

1шт.

18

111661

COUPLING,3/4" NPT

3/4 pln pipe, breather extension

1шт.
