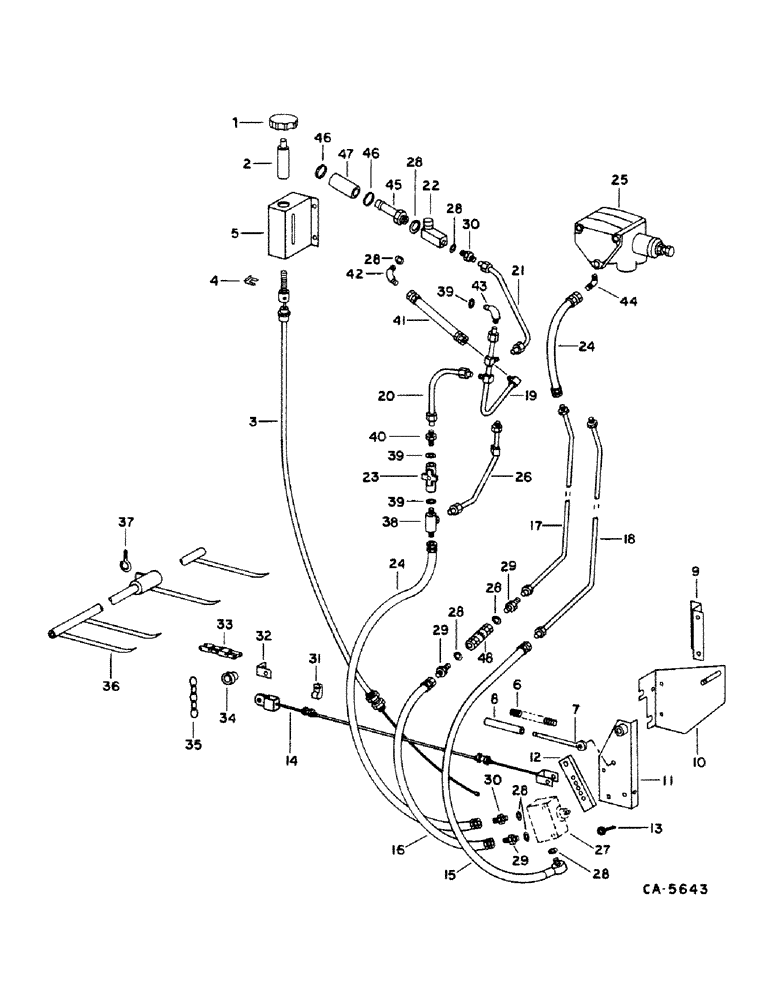

Запчасти Case IH 1440 (10-65) - HYDRAULICS, AUTOMATIC HEADER CONTROL, S/N 1500 AND BELOW (07) - HYDRAULICS

1

198941C1

KNOB

header height control upper cable

1шт.

2

196989C1

UNION

upper control cable

1шт.

3

196887C1

CABLE

header height control upper

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

159967

SCREW,Cross Pan Hd, #10 - 24 x 1 1/2"

no. 10 x 1-1/2 znp P/HDCR mach

1шт.

196922C1

LOCK NUT

upper cable grip

1шт.

4

379187C1

CLIP

upper control cable

1шт.

5

198806C1

SUPPORT

ASSY, upper control cable

1шт.

159947

HYD CONNECTOR

no. 10 x 3/4 znp P/HDCR mach

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

6

391745R1

SPRING

flow control valve pivot support

1шт.

7

198490C1

ROD

auto header control

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

8

196621C2

TUBE,0.402" ID, 0.5" OD, 6.88" Length

rod

1шт.

9

198485C1

SUPPORT

flow control valve

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

10

198486C1

SUPPORT

ASSY, flow control valve pivot

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

11

174235C2

SUPPORT

ASSY, flow control valve

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

174244C1

BAR

flow valve control

1шт.

13

174230C1

PIN

valve control bar to lower cable connecting

1шт.

14

196884C1

CABLE

header height control lower, 98.1 in., for 47 in. feeder and 810 header with 20 in. auger w/o rock trap

1шт.

14

198340C1

CABLE

header height control lower, 104 in., for 47 in. feeder and 810 header with 20 in. auger w/rock trap, for 47 in. feeder and 810 header with 23.6 in. auger w/o rock trap

1шт.

14

189131C1

CABLE PULLING GRIP

CABLE, header height control lower, 80.8 in., for 47 in. feeder and 820 header, for 54.5 in. feeder and 820 header w/o rock trap

1шт.

14

183613C1

CABLE PULLING GRIP

CABLE, header height control lower, 86.8 in., 54.5 in. feeder and 820 header w/rock trap

1шт.

14

174239C1

CABLE

header height control lower, 113.6 in., for 47 in. feeder and 810 header with 23.6 in. auger w/rock trap, for 54.8 in. feeder and 810 header with 20 in. auger w/rock trap, for 54.5 in. feeder and 810 header with 23.6 auger w/o rock trap

1шт.

14

1314085C1

CABLE

header height control lower, 122 in., for 54.5 in. feeder and 810 header with 23.6 in. auger w/rock trap

1шт.

15

174269C1

HOSE,0.50" ID x 25.00", SAE 100R1

Flow Control Valve Return (NSS) 0.50" ID x 25.00", SAE 100R1

1шт.

16

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, flow control valve pressure

1шт.

17

196753C1

HYD TUBE

TUBE ASSY, header control valve pressure

1шт.

18

196754C1

HYD TUBE

TUBE ASSY, header control valve return

1шт.

19

196818C1

HYD TUBE

TUBE ASSY, third cylinder pressure

1шт.

20

196819C1

HYD TUBE

TUBE ASSY, third cyl to header lift pressure

1шт.

21

196817C1

HYD TUBE

TUBE ASSY, third cylinder return upper

1шт.

22

195990C1

LOCK VALVE

VALVE, check

1шт.

23

195989C1

LOCK VALVE

VALVE, needle, Parker Hannifin

1шт.

23

183510C1

VALVE

needle, M & H Products

1шт.

444619

PIPE CLAMP

PLUG, pipe

1шт.

24

574230R91

HOSE ASSY.

HOSE ASSY, auto header control upper return and lower pressure

2шт.

25

VALVE ASSY, header lift control, refer to this group under header lift valve for automatic header control

1шт.

26

196820C2

TUBE

ASSY, header lift cyl pressure

1шт.

27

VALVE ASSY, header automatic flow control, refer to this group under header automatic flow control valve

1шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 in. OD

8шт.

29

384539R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 7/8-14 x 3/4-16 37 deg

1шт.

30

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg flared

1шт.

31

299404C1

CLAMP

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7500032

BUSHING

NUT, 5/16 wing

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

32

179435C1

ANGLE

chain anchor, for use with 810 header

2шт.

33

174266C1

CHAIN (AG)

CHAIN, finger pivot, for use with 810 header

1шт.

34

482635R2

ROLLER

finger pivot, for use with 810 header

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

607895R1

WASHER

.531 x 1.000 x .105

1шт.

22042R1

WASHER

.531 x 2.000 x .105

1шт.

35

167570C1

CHAIN,203.2mm L

finger stop, for use with 810 header

2шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

36

178823C1

BAR ASSY.

BAR ASSY, finger, for use with 810 header, for 10, 13 and 15 ft. headers

1шт.

36

178825C1

BAR ASSY.

BAR ASSY, finger, for use with 810 header, for 16.5, 17.5 and 20 ft. headers

1шт.

37

159780C1

EYEBOLT,3/8" - 16 x 2.20", Full Thd

finger bar, for use with 810 header

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

38

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

7/8-14 37 deg flared, used w/valve 195989C1

1шт.

38

183516C1

TEE

3/4-16 37 deg flared, used w/valve 183510C1

1шт.

39

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 in. OD, 2 used w/valve 195989C1

3шт.

39

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 in. OD, used w/valve 183510C1

2шт.

40

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg flared, used w/valve 195989C1

1шт.

40

384539R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg flared, used w/valve 183510C1

1шт.

41

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

ASSY, header lift cylinder, replaces 587582R91, 31 in.

1шт.

42

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg 90 deg

1шт.

43

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg flared

1шт.

44

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg flared

1шт.

45

178039C1

CONNECTOR, ELEC

CONNECTOR, 3/8 beaded

1шт.

46

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, return hose

2шт.

47

HOSE, third cylinder return, use 26 in. of 3/8 in. from 50 ft. roll marked S118400

1шт.

48

174276C1

FITTING

COUPLING, flow control pressure hose

1шт.
