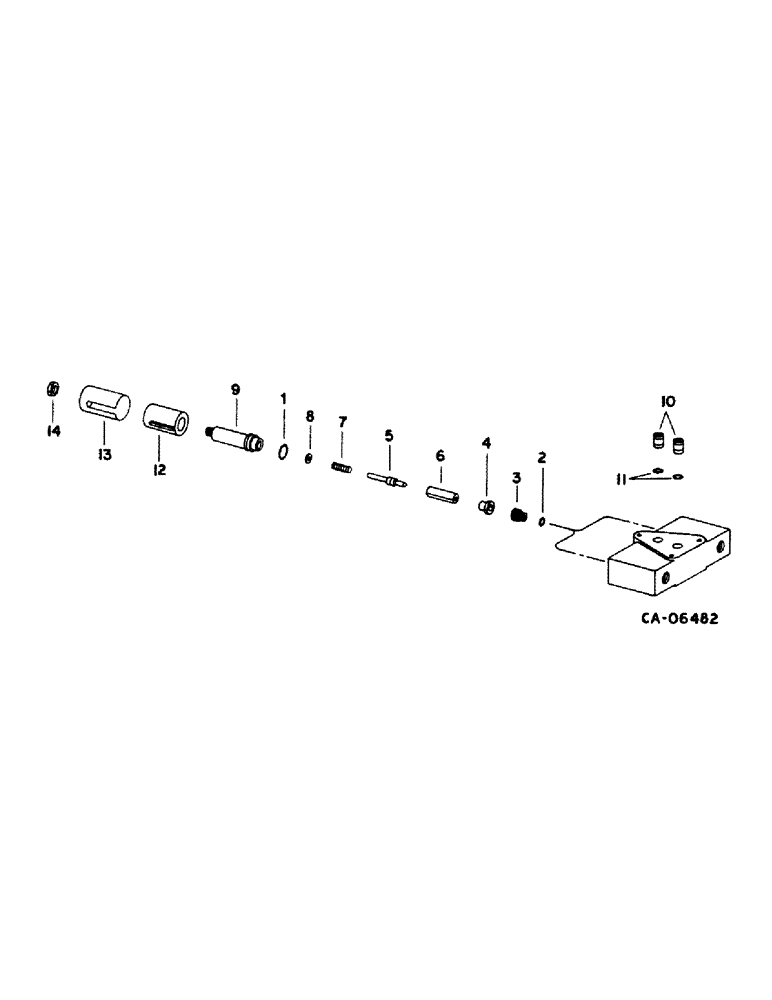

Запчасти Case IH 1440 (10-64) - HYDRAULICS, DUAL VALVE ASSY, FOR FRENCH 825 HEADERS, FOR COMBINE S/N 20001 & ABOVE (07) - HYDRAULICS

1301901C91

VALVE

ASSY, dual, includes ref nos. 1 thru 14

1шт.

1

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 class 6

2шт.

2

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 class 6

2шт.

3

1301625C1

ORIFICE

PISTON

2шт.

4

1301624C1

BUSHING

pole

2шт.

5

1301647C1

POPPET

PIN, bi-direct

2шт.

6

1301648C1

ARMATURE

BUSHING

2шт.

7

1301640C1

SPRING

2шт.

8

1301642C1

WASHER

2шт.

9

1301627C1

STUD

ASSY

2шт.

10

1301630C1

TUBE

PISTON, thru

2шт.

11

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 class 6

4шт.

12

1301633C1

COIL

SWITCH

2шт.

13

1301632C1

CAP

coil

2шт.

14

107825

NUT,Stamped, 1/2"-20

1/2 - NF

2шт.
