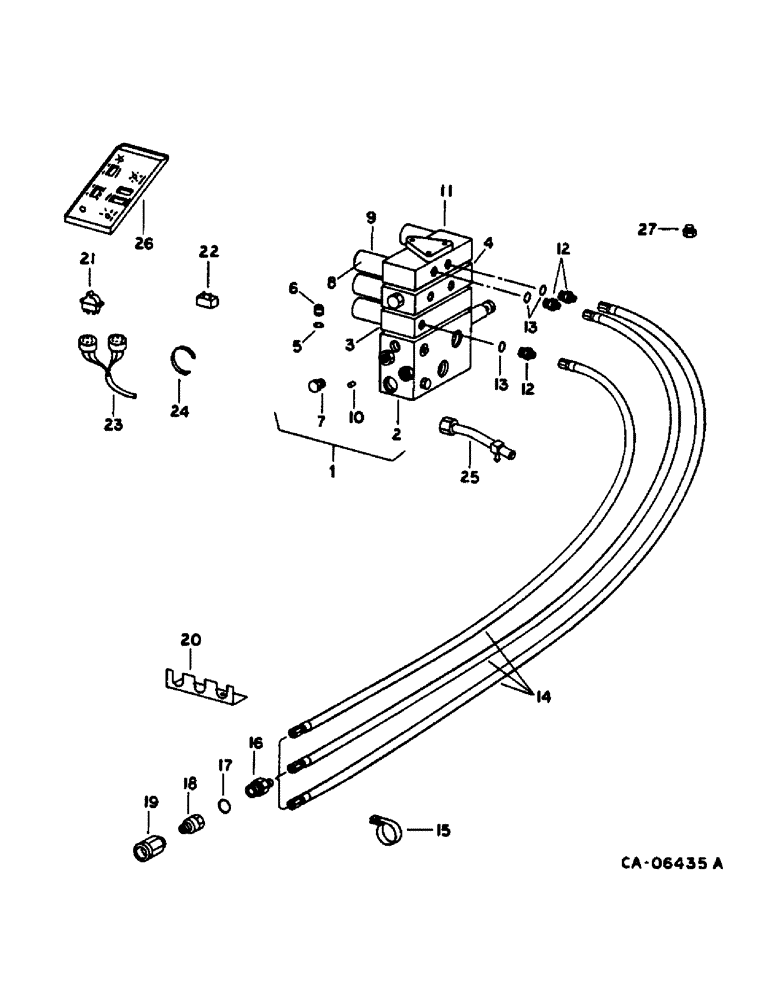

Запчасти Case IH 1440 (10-62) - HYDRAULICS, REEL SPEED CONTROL, FOR FRENCH 825 HEADERS, FOR COMBINE S/N 20001 & ABOVE (07) - HYDRAULICS

1

VALVE ASSY, control, furnish individual valve assemblies as necessary, replaces 1301936C91 valve assy

1шт.

18669R1

BOLT,Hex, 1/4"-20 x 4-1/2", G2

1/4 x 4-1/2 type 1

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

1267033C92

VALVE

ASSY, header, replaces 1301680C91, refer to this group under header valve

1шт.

3

1301652C91

VALVE

ASSY, unload/single bi-directional, refer to this group under unload/single bi-directional valve

1шт.

4

1267035C92

VALVE

ASSY, double piloted, replaces 1301650C91, refer to this group under double piloted valve

1шт.

5

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 class 6

14шт.

6

1301630C1

TUBE

PISTON, thru

6шт.

7

1301634C1

VALVE

CAP, plug

2шт.

8

1301633C1

COIL

SWITCH

6шт.

9

1301632C1

CAP

oil

8шт.

107825

NUT,Stamped, 1/2"-20

1/2-NF CAD stamped

1шт.

18668R1

BOLT,Hex, 1/4" - 20 x 6", Gr 2

1/4 x 6 type 1

1шт.

NLS

NO LONGER SERVICED

1/4 ext tooth lock

1шт.

10

1301637C1

ORIFICE

PLUG, orifice

2шт.

121432

NUT, no. 10-NF pln mach screw brs

1шт.

11

1301901C91

VALVE

ASSY, dual, refer to this group under dual valve assy

1шт.

12

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 hyd swivel

2шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

14

1301350C1

HOSE ASSY.

HOSE ASSY, reel

3шт.

15

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1.875 dia. znp coated

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

16

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, hyd 5/8 to 3/8 sht

3шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

3шт.

18

3161090R1

COUPLING, BREAK AWAY

COUPLING, 7/8-14 hyd

3шт.

19

3177270R1

COUPLING, BREAK AWAY

COUPLING, hyd quick attach

3шт.

20

1301916C1

ANGLE

coupling support

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21

1301920C1

SWITCH

ASSY, reel

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6 x 1/2 znp P/HDCR mach

1шт.

22

262965C91

BREAKER

circuit, replaces 928405C1

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

23

1301941C1

HARNESS

ASSY, reel control

1шт.

24

702093C1

CABLE TIE

STRAP, harness

3шт.

25

1310756C1

HYD TUBE,0.75, 0.5" OD, 198, 33 mm Length

TUBE ASSY, hyd lift & str return

1шт.

26

1301940C3

COVER

extension

1шт.

Ref.26, Is for French 825 Header for NAO, See GR 11, Ref. 13, P/N 1301223C3.

1шт.

27

9410361

PLUG

3/4 C-Z str thd O-ring Boss, for hyd. reservoir

1шт.
