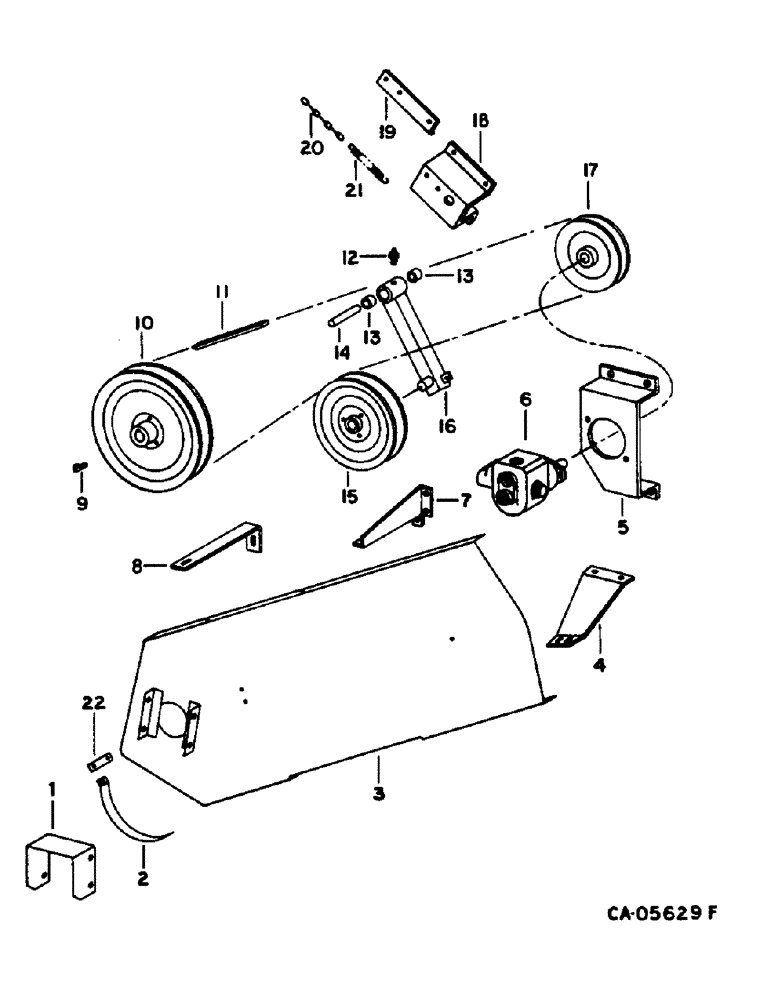

Запчасти Case IH 1440 (10-54) - HYDRAULICS, HYDRAULIC REEL DRIVE, WITHOUT ROCK TRAP OR FEEDER REVERSER, SEPARATOR PARTS (07) - HYDRAULICS

1

197646C1

SHIELD

CHANNEL, feeder jackshaft LH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

2

189470C1

SUPPORT

shield upper LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

3

189459C3

SHIELD

ASSY, pump drive, for 47 in. feeder

1шт.

3

189460C3

SHIELD

ASSY, pump drive, for 54.5 in. feeder

1шт.

4

189468C2

SUPPORT

shield lower rear, for 47 in. feeder

1шт.

4

189469C1

SUPPORT

shield lower rear, for 54.5 in. feeder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

5

198409C2

SUPPORT

reel drive pump, Serial Range: -20000

1шт.

5

198409C2

SUPPORT

reel drive pump, Start Serial: 50001

1шт.

5

187698C1

SUPPORT

reel drive pump, Serial Range: 20001-50000

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

198381C92

PUMP

ASSY, reel drive, Cessna, Serial Range: -20000

1шт.

6

198382C91

PUMP

ASSY, reel drive, Webster, Serial Range: -20000

1шт.

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

1/2 x 1-1/2 hex-hd flange

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

6

PUMP ASSY, reel drive, Ross, for service parts refer to this group under reel drive pump, Serial Range: 20001-50000

1шт.

6

PUMP ASSY, reel drive, Cessna, refer to this group under reel drive pump, Start Serial: 50001

1шт.

7

189466C1

SUPPORT

shield upper rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

8

189464C2

SUPPORT

shield upper front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

9

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 square-gib hd tapered

1шт.

10

176562C2

PULLEY

pump drive, 13.5 in.

1шт.

11

197411C1

V-BELT,132" L

131.69" L, Hydraulic reel drive, For 47 in. feeder

1шт.

11

197414C2

BELT,22.33 mm W x 3706.69 mm L

V-BELT , Hydraulic reel drive, OC, for 54.5 in. feeder 22.33 mm W x 3706.69 mm L

1шт.

12

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tapping

1шт.

13

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

tightener arm

2шт.

14

198410C1

SPACER

tightener arm

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

20704R1

WASHER

1.031 x 1.500 x .105

1шт.

15

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, belt idler, 8.75 O.D.

1шт.

18830R1

BOLT,Hex, 5/8"-11 x 5", G2

5/8 x 5 type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

16

195528C92

ARM

LEVER ASSY, tightener, includes ref no. 13

1шт.

17

193252C1

PULLEY

ASSY, pump driven, 7.5" O.D., 7/8" I.D., Serial Range: -20000

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 znp sq/hd c/pt set

1шт.

17

187697C1

PULLEY ASSY.

PULLEY ASSY, pump driven, 7.13 in. OD x 3/4 in bore, Start Serial: 20001

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 znp sq/hd c/pt set

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 jam type 5

1шт.

18

195526C1

SUPPORT

pivot anchor

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

19

195531C1

SUPPORT

spring anchor

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20

167570C1

CHAIN,203.2mm L

reel drive idler pulley arm

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

21

NLS

NO LONGER SERVICED

reel drive idler pulley arm tightener

1шт.

22

(Not used this application)

1шт.

67055C1

SEAL KIT

ASSY, seal repair, for pump 198381C92, consists of gasket, back-up (NSS), plate, thrust (NSS), gasket, protector (NSS), diaphragm, seal (NSS), (2) O-ring, 3/32 x 5 in. ID (NSS), ring, retaining (NSS), (2) ball, steel (NSS), (2) spring (NSS), seal, sha

1шт.

187918C1

KIT

ASSY, seal repair, for pump 198382C92, consists of seal, oil (NSS), (2) plate, wear (NSS), (2) seal, pre-load (NSS), (2) seal, load (NSS), (2) seal, ring (NSS)

1шт.
