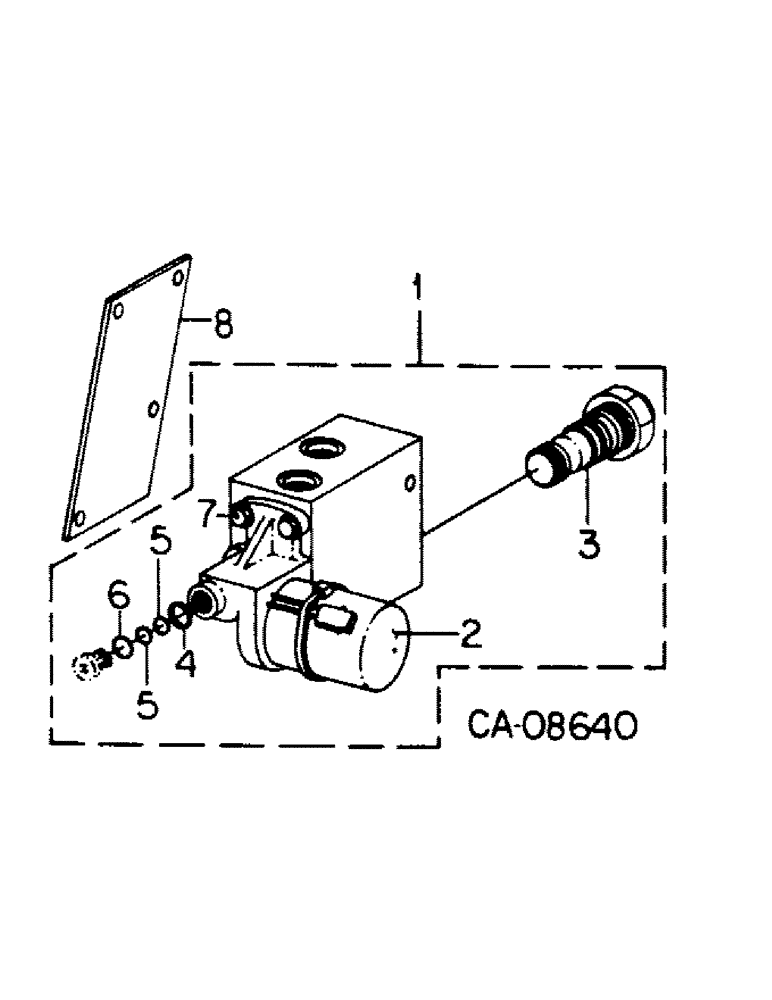

Запчасти Case IH 1440 (10-53) - HYDRAULICS, REEL DRIVE VALVE, S/N 50001 AND ABOVE (07) - HYDRAULICS

1

1282369C91

VALVE

ASSY, reel drive

1шт.

180735

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

5/16 x 3-1/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

1301336C1

MOTOR, ELECTRIC

MOTOR ASSY

1шт.

3

1301996C1

VALVE

ASSY, compensator

1шт.

4

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 x 3/4 class 5

1шт.

5

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 x 7/16 class 6

2шт.

6

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

7

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8 type 5

3шт.

8

1315461C1

BRACKET

reel drive valve

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
