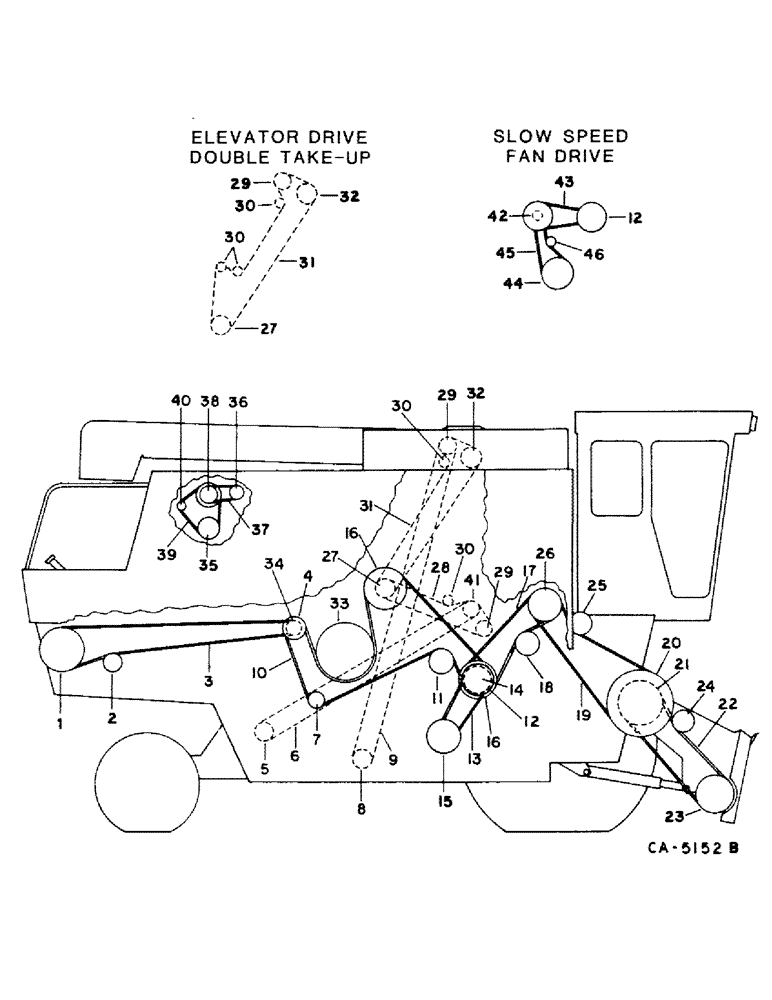

Запчасти Case IH 1440 (02-03) - MISCELLANEOUS, PULLEY, BELT, SPROCKET AND CHAIN DIAGRAM, RIGHT SIDE, S/N 20714 & BELOW Accessories & Attachments / Miscellaneous

1

557917R92

PULLEY

ASSY, straw spreader driven, 15.8 in. OD

1шт.

2

564745R91

PULLEY

spreader tightener drive, 5.5 in. OD

1шт.

3

153359C1

V-BELT,0.63" W x 186.87" L

Straw Spreader Drive 0.63" W x 186.87" L

1шт.

4

195161C1

PULLEY

ASSY, beater drive, 8.375 in. OD

1шт.

5

165292C1

SPROCKET ASSY.

SPROCKET, tailing elevator boot, 6T, Serial Range: -10000

1шт.

5

168683C1

SPROCKET

tailing elevator boot, 7T, Start Serial: 10001

1шт.

6

192736C93

ELEVATOR CHAIN,C550, 111 Links x 41.4mm = 4595.4mm

CONVEYOR, tailing elevator, Serial Range: -10000

1шт.

6

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR, tailing elevator, Start Serial: 10001

1шт.

7

673214R91

PULLEY

elevator drive fixed idler, 7.15 in. OD

1шт.

8

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 6T, Serial Range: -10000

1шт.

8

168683C1

SPROCKET

grain elevator boot, 7T, Start Serial: 10001

1шт.

9

192699C92

CHAIN,149 Links x 41.4mm = 6168.6mm

CONVEYOR, grain elevator, Serial Range: -10000

1шт.

9

1302201C91

ELEVATOR CHAIN,CA550, 150 Links x 41.4mm = 6210mm

CONVEYOR, grain elevator, Start Serial: 10001

1шт.

10

192360C1

BELT,0.879" W x 255.39" L

V-BELT , Elevator drive 0.879" W x 255.39" L, Serial Range: -1500

1шт.

10

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Elevator drive, OC 0.879" W x 255.99" L, Start Serial: 1501

1шт.

11

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, elevator drive tightener, Serial Range: -1500

1шт.

11

673214R91

PULLEY

ASSY, elevator drive, Start Serial: 1501

1шт.

12

PULLEY ASSY, fan drive adjustable, refer to group 24 under fan drive

1шт.

13

195396C2

BELT,31.80 mm W x 1881.58 mm L

V-BELT , Fan drive, OC 31.80 mm W x 1881.58 mm L

1шт.

14

193948C1

PULLEY,39.61mm W x 254mm OD

ASSY, elevator jackshaft drive, 9.75 in. OD

1шт.

15

PULLEY ASSY, fan driven fixed, refer to group 24 under fan drive

1шт.

16

PULLEY ASSY, jackshaft driven and cleaning unit drive, 13.0 in. OD, refer to group 20 under belt drive RH side

2шт.

17

191305C1

V-BELT,0.879" W x 112.19" L

Fan jackshaft drive, OC 0.879" W x 112.19" L

1шт.

18

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

fan jackshaft drive idler, 8 in. OD

1шт.

19

192738C1

BELT,22.225 mm W x 3814.70 mm L, 3, Ribs

V-BELT , Feeder drive, OC 22.225 mm W x 3814.70 mm L, 3, Ribs

1шт.

20

197387C1

PULLEY

feeder driven, 25.56 in. OD, Serial Range: -10000

1шт.

20

1305297C1

PULLEY

feeder driven, 22.56 in. OD, Start Serial: 10001

1шт.

21

176575C1

PULLEY

feeder jackshaft drive, 16.7 in. OD, Serial Range: -10000

1шт.

21

1305288C1

PULLEY

feeder jackshaft drive, 16.70 in. OD, Start Serial: 10001

1шт.

22

197413C1

BELT

Feeder jackshaft drive, Set of 3, 132 in. OC, for 47 in. feeder

1шт.

22

1313097C3

V-BELT,22.33 mm W x 3706.69 mm L

Feeder Jackshaft Drive, Set of 3, for 54.5 in. Feeder 22.33 mm W x 3706.69 mm L

1шт.

23

176573C4

PULLEY

feeder jackshaft driven, 13.5 in. OD

1шт.

24

176579C1

IDLER

jackshaft drive tightener, 8 in. OD

1шт.

25

174757C1

PULLEY

feeder drive idler, 8.0 in. OD

1шт.

26

191603C2

PULLEY

feeder drive, 12 in. OD

1шт.

27

192139C2

SPROCKET

ASSY, grain and tailings elevator drive, 25T

2шт.

28

CHAIN ASSY, tailings elevator drive, use 153 links from 10 ft roll marked 1791D and one connecting link 1310D

1шт.

29

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 6T, Serial Range: -10000

1шт.

29

1302200C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 7T, Start Serial: 10001

1шт.

29

188188C1

SPROCKET ASSY.

SPROCKET, grain and tailings elevator drive, 27T

2шт.

30

631905R91

SPROCKET

grain and tailings elevator drive idler, 17T

1шт.

31

CHAIN ASSY, grain elevator drive, use 229 links from 10 ft roll marked 1791D and one connecting link 1310D, Serial Range: -10000

1шт.

31

CHAIN ASSY, elevator drive, use 259 links from 10 ft roll marked 1791D and one connecting link 1310D, Start Serial: 10001

1шт.

32

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator driven, 33T, slow speed

1шт.

32

188188C1

SPROCKET ASSY.

SPROCKET, grain elevator driven, 27T, fast speed

1шт.

32

168149C2

SPROCKET ASSY.

SPROCKET, grain elevator driven, 24T, parts accessory

1шт.

33

195288C1

RETAINER

shaker shaft driven, 24.8 in. OD, Serial Range: -1500

1шт.

33

193682C1

PULLEY

ASSY, shaker shaft driven, 25.0 in. OD, Start Serial: 1501

1шт.

34

195163C2

PULLEY

ASSY, straw spreader drive, 5.0 in. OD

1шт.

35

DAMPER ASSY, vibration, refer to Eng-5 engine catalog

1шт.

36

117820C1

PULLEY

ASSY, compressor

1шт.

37

874097C1

V-BELT,39.50" L

Compressor 39.50" L

1шт.

38

537071R1

PULLEY

water pump and air conditioner

1шт.

39

537072R91

SET OF BELTS

Matched, Engine fan

1шт.

40

PULLEY, alternator-generator, refer to group 8 under alternator, generator and mountings

1шт.

41

165292C1

SPROCKET ASSY.

SPROCKET, tailings elevator head, 6T, Serial Range: -10000

1шт.

41

168683C1

SPROCKET

tailings elevator head, 7T, Start Serial: 10001

1шт.

41

188188C1

SPROCKET ASSY.

SPROCKET, tailings elevator drive, 27T

1шт.

42

181360C1

PULLEY ASSY.

PULLEY ASSY, slow speed fan jackshaft, 5 in. OD

1шт.

43

181359C1

BELT,1.25" W x 66.54" L

V-BELT , Fan jackshaft, OD 1.25" W x 66.54" L

1шт.

44

564569R11

PULLEY ASSY.

PULLEY ASSY, fan hub, 12.68 in. OD

1шт.

45

610521R1

V-BELT

Slow speed fan jackshaft, 76 in. OC

1шт.

46

564745R91

PULLEY

idler, 5.5 in. OD

1шт.
