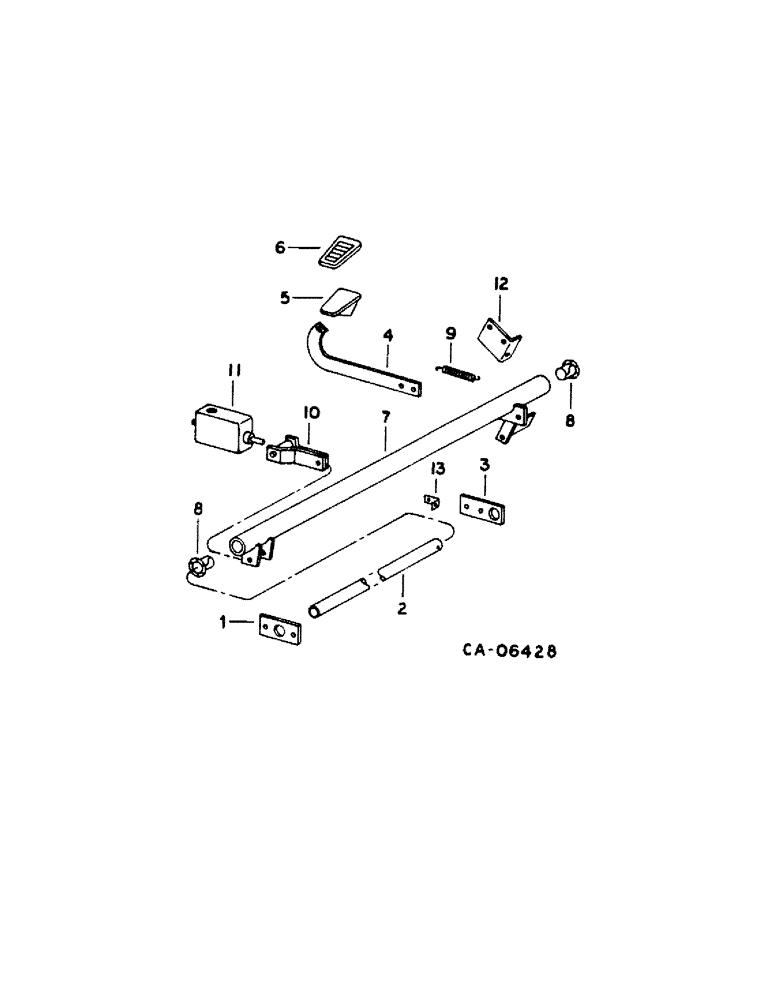

Запчасти Case IH 1440 (10-40[A]) - HYDRAULICS, FOOT-N-INCH CONTROLS, S/N 20715 AND ABOVE (07) - HYDRAULICS

1

165901C1

BAR

brake pivot shaft support

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

1302148C1

SHAFT

foot-n-inch clutch lever pivot

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

3

1302147C1

BAR

foot-n-inch pivot shaft support

1шт.

4

184166C2

SUPPORT ASSY.

SUPPORT, foot-n-inch pedal, replaces 192970C1

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

163425C1

PEDAL

foot-n-inch

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

6

863426R1

PAD

foot-n-inch pedal

1шт.

7

195563C1

TUBE ASSY.

TUBE ASSY, foot-n-inch pedal

1шт.

8

277523R1

BUSHING

pedal pivot tube

2шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

9

635503R1

SPRING,148.8mm Free Length

foot-n-inch pedal return

1шт.

10

165504C91

YOKE

ASSY, foot-n-inch valve

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN, 5/16 x .940 clevis

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

11

VALVE ASSY, foot-n-inch, for details refer to this group under foot-n-inch valve

1шт.

12

195582C1

BRACKET

safety starting switch

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

187628C1

ANGLE

pivot shaft retainer

1шт.
