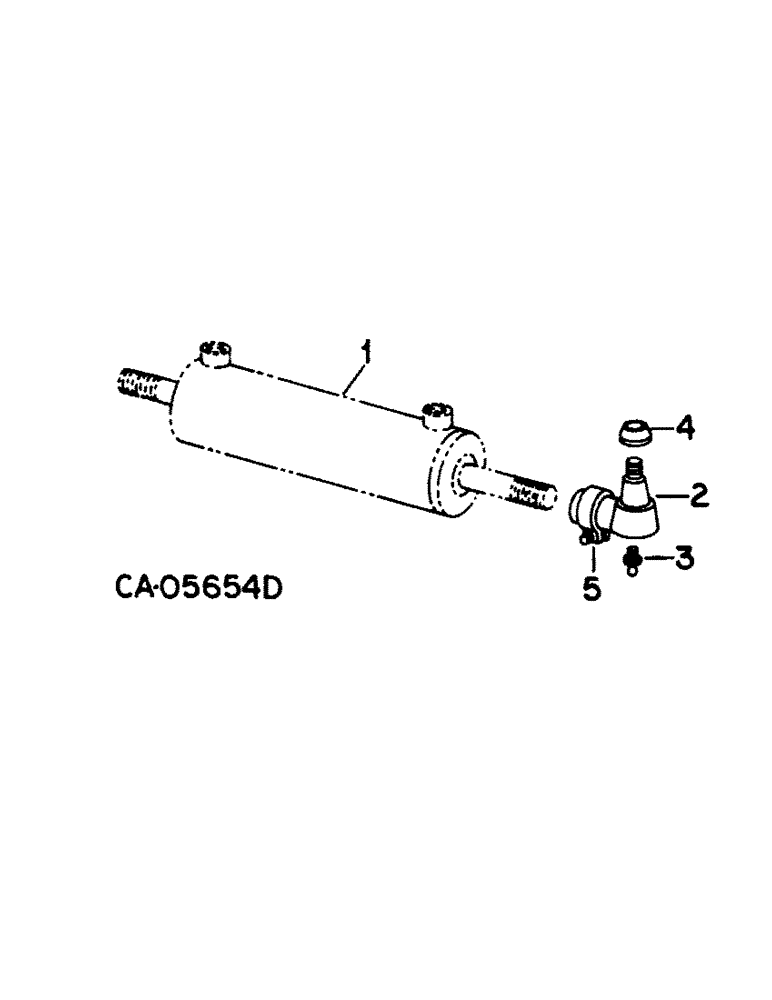

Запчасти Case IH 1440 (10-39) - HYDRAULICS, STEERING CYLINDER, W/O POWER GUIDE WHEELS (07) - HYDRAULICS

1

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

CYLINDER ASSY, steering, for service parts refer to Cyl-1 Section B

1шт.

548357R91

SEAL KIT

cylinder service

1шт.

2

186796C1

BALL JOINT

SOCKET ASSY, steering cyl end, includes ref. no. 5

2шт.

NLS

NO LONGER SERVICED

5/8-NF slt type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

575812R1

WASHER

.719 x 1.500 x .105 pln

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

4

382562R1

SEAL

steering cylinder end socket

2шт.

5

384371R1

CLAMP

ASSY, socket assy

1шт.

180152

BOLT,Hex, 7/16" - 14 x 1 7/8", Gr 5

7/16 x 1-7/8 type 5

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 CAD P/T lock type 5

1шт.
