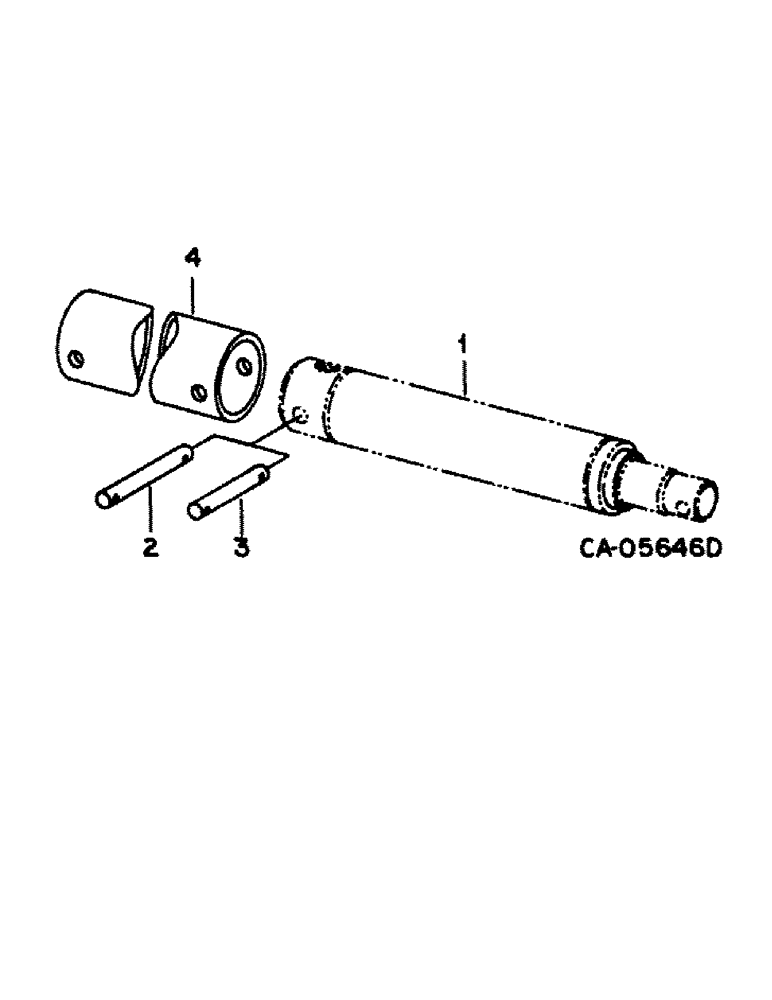

Запчасти Case IH 1440 (10-38) - HYDRAULICS, HEADER LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSY, hydraulic, for service parts refer to Cyl-1 Section A

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1440 CASE IH AXIAL-FLOW COMBINE (NORTH AMERICA), Assy, hydraulic (1/77-12/84)

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

224718C92

SEAL KIT

KIT, cylinder service

1шт.

2

195822C1

PIN,25.4mm OD x 228.6mm L

header lift cylinder, used w/third cylinder

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

3

573762R1

PIN,25.4mm OD x 130.97mm L

header lift cylinder, 2 used w/third cylinder, 4 used w/o third cylinder

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

4

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

EXTENSION, lift cylinder, 12.23 in. 310.75mm, replaces 1320145C1, used with 54.5 in. feeder and rock trap

1шт.

4

1319896C1

SUPPORT ASSY.

EXTENSION, lift cylinder, 8.27 in., 210mm, replaces 1302617C1, used with 47 in. feeder and rock trap, with 54.5 in. feeder without rock trap, Serial Range: 5001-10000

1шт.

Ref. 4 1319896C1 is 6.24" overall and 4" effective.

1шт.

4

1320870C1

TUBE,2.75" ID, 3.5" OD

EXTENSION, lift cylinder, 54.5 in. feeder and rock trap, 14.25 in. long, Serial Range: -10000

1шт.
