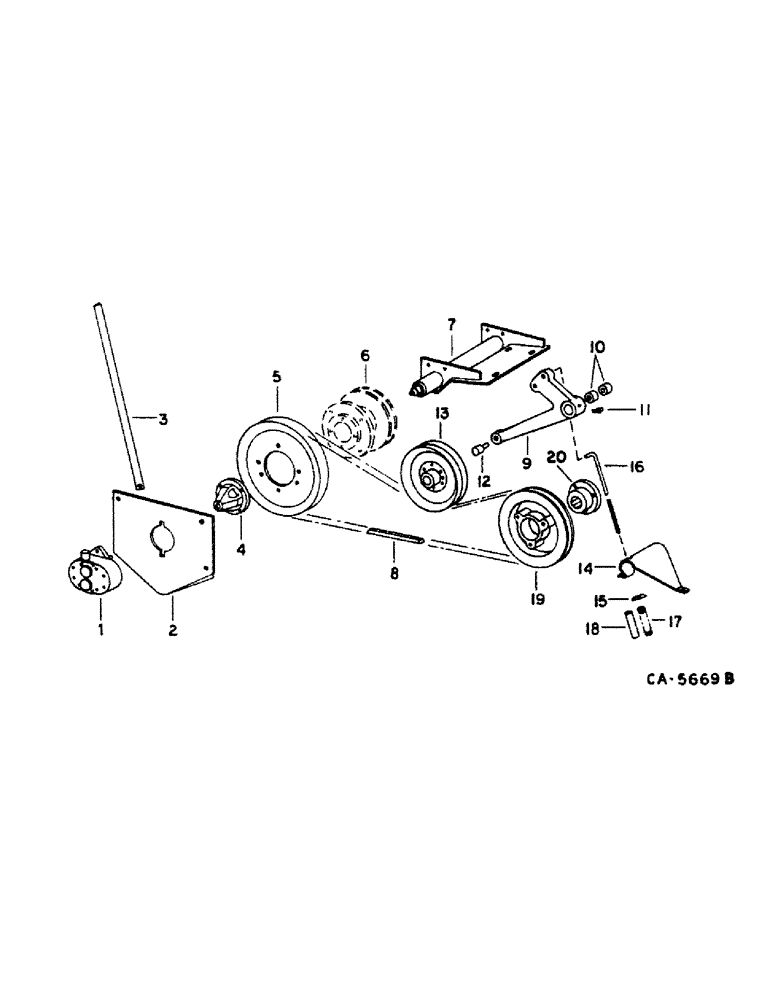

Запчасти Case IH 1440 (10-33) - HYDRAULICS, AUXILIARY HYDRAULIC PUMP, HEADER LIFT (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1272257C91
PUMP, HYDRAULIC
PUMP ASSY, hydraulic, header lift, Cessna, 12 GPM, replaces 195706C91 and 195704C91
1шт.
Pump assy. has key ZA 703292 that is not listed.
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4 type 5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
2
192958C2
BAR
PLATE, hydraulic pump
1шт.
3
192957C1
ANGLE
hydraulic pump plate
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 type 1
1шт.
9411655
LOCK NUT,3/8"-16, GB
NUT, 3/8 CAD P/T lock type 5
1шт.
4
191207C1
HUB
hydraulic pump
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
5
192943C1
PULLEY ASSY.
PULLEY ASSY, auxiliary shaft driven, 11.65 in. OD
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
47-410
RIVET,FH, 1/4" x 5/8"
1/4 x 5/8 pln f/hd sol
1шт.
180125
SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5
BOLT, 3/8 x 1-1/2 type 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
6
PULLEY ASSY, auxiliary pump drive, refer to group 26 under grain tank unloader drive
1шт.
7
191203C1
SUPPORT
ASSY, auxiliary drive rear, not used w/straw chopper, Serial Range: -20976
1шт.
7
181338C1
SUPPORT ASSY.
SUPPORT ASSY, auxiliary drive rear, all machines w/straw chopper, Start Serial: 20977
1шт.
485734R1
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd
BOLT, 1/2 x 1-1/4 crg type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
9413971
LOCK NUT,3/4"-10, GB
NUT, 3/4 CAD all metal prevailing torque hex. lock
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4 type 5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
NLS
NO LONGER SERVICED
.531 x 1.062 x .074
1шт.
21211R1
WASHER
.781 x 1.500 x .164
1шт.
8
191288C2
BELT,0.879" W x 96.11" L
V-BELT , Auxiliary pump drive, OC 0.879" W x 96.11" L
1шт.
9
192946C92
LEVER ASSY.
LEVER ASSY, auxiliary pump drive, includes ref. no. 10
1шт.
11
87569
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
FITTING, 1/4-28 45 deg self-tap lub
1шт.
12
274844R91
BEARING ASSY,30mm OD x 73.66mm L
flat idler pulley
1шт.
13
192865C1
PULLEY
ASSY, flat idler, 8 in. OD
1шт.
14
192092C1
SUPPORT
auxiliary pump drive pivot
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
15
194652C1
PIVOT
BAR, auxiliary drive pivot
1шт.
16
182752C1
ROD
auxiliary drive jackshaft
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
18481R1
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
1шт.
120396
WASHER
.531 x 1.062 x .074
1шт.
460908R1
WASHER
.531 x 1.500 x .105
1шт.
17
SPRING, auxiliary drive rod, used with spacer 1-1/8 OD x 5, order package 1300023C1
1шт.
17
V368
SPRING
auxiliary drive rod, used with 181119C1
1шт.
18
SPACER, auxiliary drive rod, 1-1/8 OD x 5, order package 1300023C1
1шт.
18
181119C1
SPACER
auxiliary drive rod, 1-3/16OD x 5.83
1шт.
19
186701C1
PULLEY
auxiliary pump drive, S/N 8068 and below, Serial Range: -8068
1шт.
19
196481C1
PULLEY
auxiliary pump drive, 9.25 in. OD, Start Serial: 8069
1шт.
168392R1
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8
1/2 x 2-1/2 type 8
1шт.
NLS
NO LONGER SERVICED
.531 x 1.062 x .074
1шт.
20
196482C2
HUB
pump drive pulley, Start Serial: 8069
1шт.
178385C2
SEAL KIT
seal repair, for use w/pump 195706C91
1шт.
168318C93
SEAL KIT
seal repair, for use w/pump 195704C91
1шт.
1272638C1
GASKET KIT
KIT, seal repair, for use w/pump 1272257C91
1шт.
1300023C1
SPRING
PACKAGE, tightener spring & spacer, consists of
1шт.
V368
SPRING
1шт.
181119C1
SPACER
1шт.
Выбрано товаров: 60
