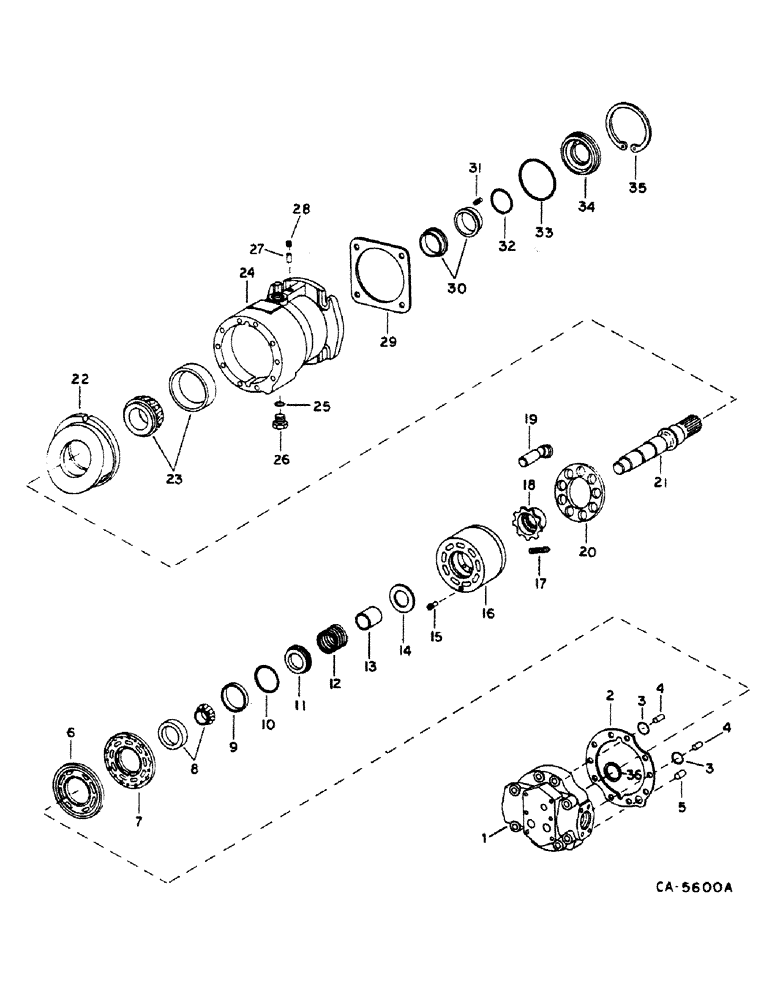

Запчасти Case IH 1440 (10-28) - HYDRAULICS, HYDROSTATIC MOTOR, SUNDSTRAND, MOTOR HOUSING (07) - HYDRAULICS

1252350C91

REMAN-HYD MOTOR

MOTOR ASSY, hydrostatic, renewed

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

283856C1

WASHER

17/32 x 1 x .188

1шт.

1

530732R1

COVER

motor bearing rear end

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

394881R1

WASHER

13/32 x 11/16 x .106

1шт.

2

394218R1

GASKET

motor rear end

1шт.

3

393886R1

WASHER

WASHER, manifold valve

2шт.

4

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel

2шт.

5

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel end cover to valve plate

1шт.

6

530771R1

PLATE

cyl block valve

1шт.

7

399406R1

PLATE

cyl block brg.

1шт.

8

394200R91

BEARING ASSY,1.0005" ID x 2.3442" OD x 0.923, 0.72"

ASSY, drive shaft rear pilot

1шт.

9

394197R1

RING

cyl block brg plate pilot

1шт.

10

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, drive shaft rear spring

1шт.

11

394195R1

RETAINER

drive shaft rear spring

1шт.

12

532303R2

SPRING

cyl block

1шт.

13

394193R1

BUSHING

drive shaft rear spring

1шт.

14

394192R1

SEAT

piston cyl block spring

1шт.

15

527636R1

PIN

cyl block brg plate

1шт.

16

BLOCK ASSY, piston cyl (NSS), order kit, 133789C92

1шт.

17

67789C1

SPRING

slipper retainer

6шт.

18

394188R1

GUIDE

cyl block piston

1шт.

19

142484C1

PISTON ASSY.

PISTON ASSY, cylinder block

9шт.

20

394189R1

RETAINER

cyl block piston

1шт.

21

405096R1

SHAFT

hyd motor drive

1шт.

22

71890C1

HOUSING

SWASHPLATE, hyd. motor

1шт.

23

394181R91

BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"

ASSY, drive shaft front

1шт.

24

405095R1

HOUSING

hyd motor

1шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

26

9410360

PLUG

7/8-14 C-Z str-thd

1шт.

27

19879R1

SPLIT PIN/SAFETY PIN

PIN, 5/16 x 3/4 dowel

1шт.

28

444687

PLUG,Hex Soc, 1/8"-27

Pipe Hex Soc, 1/8"-27

1шт.

29

166506C1

GASKET,0.81mm Thk

hydrostatic ground motor

1шт.

30

SEAL (NSS), order O-ring & seal package, 403072R92

1шт.

31

393882R1

SPRING

drive shaft face

6шт.

32

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

19/16 x 1-3/4 x 3/32

2шт.

33

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8

1шт.

34

393881R91

RETAINER

ASSY, drive shaft

1шт.

35

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face 3.346", Int, #334

1шт.

36

404780R1

SHIM

motor drive shaft, .010 in.

1шт.

403072R92

O-RING KIT

O-ring and seal, consists of seal (NSS), seal (NSS)

1шт.

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 class 7

2шт.

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 class 5

1шт.

393882R1

SPRING

6шт.

133789C92

KIT

piston cylinder block, consists of ref. no. 7, 9 thru 20

1шт.
