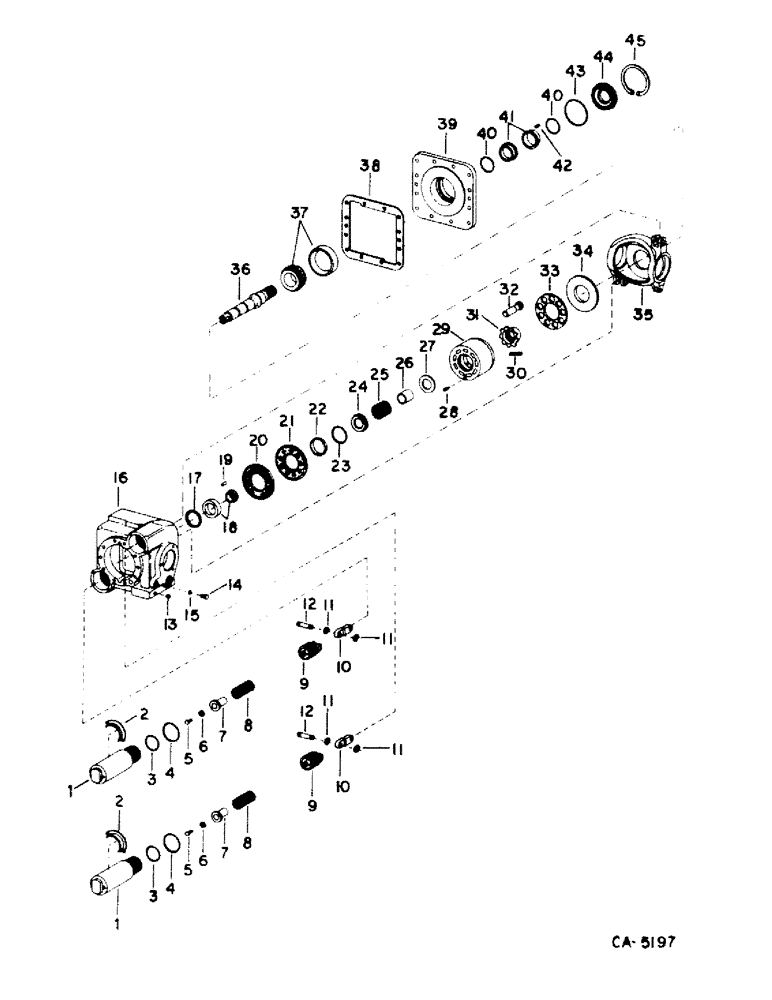

Запчасти Case IH 1440 (10-19) - HYDRAULICS, HYDROSTATIC PUMP, CYLINDER BLOCK, SUNDSTRAND (07) - HYDRAULICS

1252351C91

REMAN-HYDROSTAT PUMP

PUMP ASSY, hydrostatic transmission, renewed

1шт.

1252350C91

REMAN-HYD MOTOR

Remanufactured Hydraulic Pump - N.A Only

1шт.

1949135C1

CORE-HYDRAULIC PUMP

Return No, Hydraulic Pump - N.A. Only

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

283856C1

WASHER

17.32 x 1 x .188

1шт.

1

403074R2

SLEEVE

servo piston

2шт.

2

394213R1

RETAINER

servo piston

2шт.

536291R1

SCREW

10-24 x 3/, self-tap

1шт.

3

21005R1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

2-3/8 x 2-9/16 x 3/32

2шт.

4

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

2шт.

5

537762R1

SCREW

1/4-20 x 5/8 hex-hd cap nylon coated

2шт.

6

394207R1

WASHER

servo piston bolt

2шт.

7

394211R1

GUIDE

servo piston spring

2шт.

8

549726R1

SPRING

servo piston

2шт.

9

537761R1

PISTON

servo

2шт.

10

549725R1

LINK

servo piston

2шт.

11

267805R1

RING

servo piston link

8шт.

12

65797C1

PIN

servo piston link

4шт.

13

444687

PLUG,Hex Soc, 1/8"-27

Automotive, Pipe Hex Soc, 1/8"-27

1шт.

14

9410356

PLUG

7/16-20 hex-hd O-ring Boss

3шт.

15

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

16

394179R1

HOUSING

transmission pump

1шт.

17

404780R1

SHIM

.010 rear bearing

1шт.

Ref.17 P/N 404780R1, See SB 046-87

1шт.

18

394200R91

BEARING ASSY,1.0005" ID x 2.3442" OD x 0.923, 0.72"

ASSY, drive shaft rear pilot

1шт.

19

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel, end cover to valve plate

1шт.

20

530769R1

PLATE

cyl block valve LH

1шт.

21

399406R1

PLATE

cyl. block bearing

1шт.

22

394197R1

RING

cyl. block brg plate pilot

1шт.

23

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, drive shaft rear

1шт.

24

394195R1

RETAINER

drive shaft rear spring

1шт.

25

532303R2

SPRING

cyl block

1шт.

26

394193R1

BUSHING

drive shaft rear spring

1шт.

27

394192R1

SEAT

piston cyl block spring

1шт.

28

527636R1

PIN

cyl block bearing plate

1шт.

29

BLOCK ASSY, piston cyl (NSS), order kit, 133789C92

1шт.

30

67789C1

SPRING

slipper retainer

6шт.

31

394188R1

GUIDE

cyl block piston slipper

1шт.

32

142484C1

PISTON ASSY.

PISTON ASSY, cyl block

9шт.

33

394189R1

RETAINER

cyl block piston slipper

1шт.

34

394186R3

PLATE

piston slipper thrust

1шт.

35

405071R1

PLATE

SWASHPLATE, transmission pump

1шт.

36

71889C1

SHAFT

pump drive

1шт.

37

394181R91

BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"

ASSY, drive shaft front

1шт.

38

394184R1

GASKET

transmission pump front cover

1шт.

39

404778R1

COVER

transmission pump front

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 pln type 5

1шт.

394881R1

WASHER

13/32 x 11/16 x .106

1шт.

40

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

2 x 2-3/16 x 3/32, drive shaft face seal

2шт.

Ref. 40 is, IS 1 9/16" X 1 3/4" class 7

1шт.

41

SEAL, shaft (NSS), order O-ring & seal package, 403072R92

1шт.

42

393882R1

SPRING

drive shaft face

6шт.

43

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8

1шт.

44

393881R91

RETAINER

ASSY, drive shaft face seal

1шт.

45

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face seal 3.346", Int, #334

1шт.

403072R92

O-RING KIT

O-ring & seal, consists of seal (NSS), seal (NSS)

1шт.

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 class 7

2шт.

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 class 5

1шт.

393882R1

SPRING

6шт.

133789C92

KIT

piston cylinder block, consists of ref. no. 21 thru 24 and 26 thru 33

1шт.
