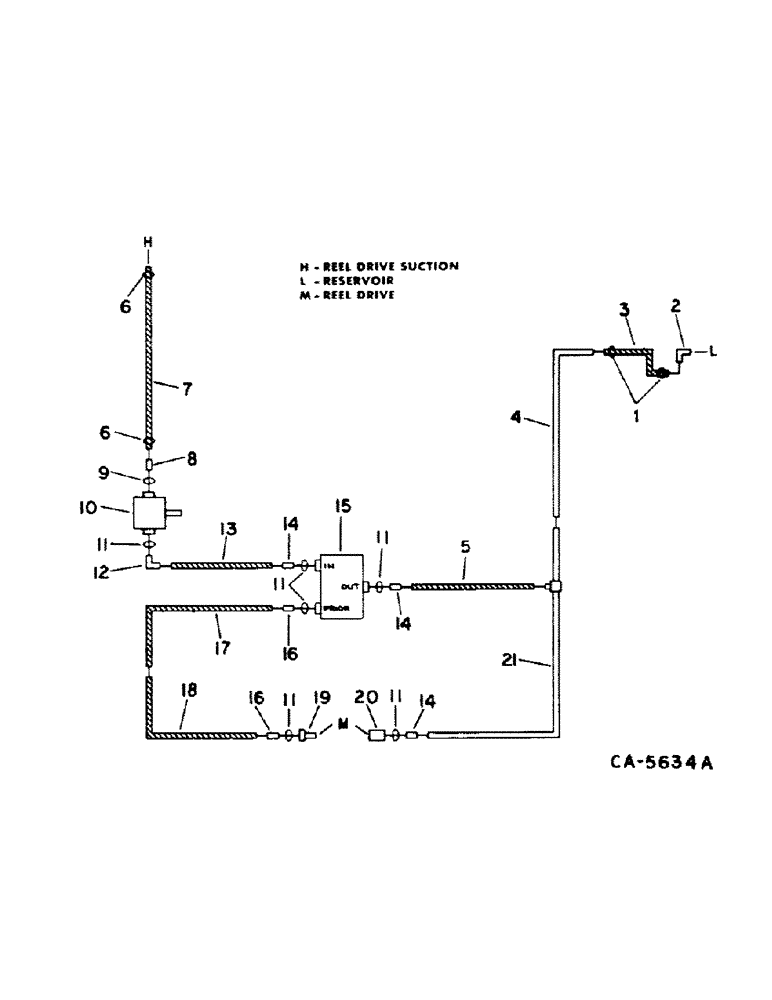

Запчасти Case IH 1440 (10-16) - HYDRAULICS, REEL DRIVE DIAGRAM, SERIAL NO. 20000 AND BELOW (07) - HYDRAULICS

1

995218R1

CLAMP

hose

2шт.

2

171949C1

ELBOW

reel drive return

1шт.

3

HOSE, reel drive return, use 18 in. of 5/8 ID from 25 ft roll marked S118576

1шт.

4

196746C1

HYD TUBE

TUBE ASSY, reel drive return

1шт.

5

196815C1

HOSE

ASSY, flow divider return, 48 in.

1шт.

6

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, reel drive suction hose

2шт.

7

198303C1

HYDRAULIC HOSE,1.00" ID x 40.00", SAE 100R4 Class 4

Reel Drive Suction 1.00" ID x 40.00", SAE 100R4 Class 4

1шт.

8

180182C1

FITTING

CONNECTOR, 1-5/16-12 1 in. str

1шт.

9

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 in. OD tube

1шт.

10

PUMP ASSY, reel drive, refer to this group under reel drive pump

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

6шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg flared tube

1шт.

13

196814C1

HOSE

ASSY, reel drive pressure, 80 in.

1шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd

3шт.

15

VALVE, flow divider, refer to this group under flow divider valve

1шт.

16

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 x 3/4-16 37 deg hyd

2шт.

17

196857C1

HOSE

ASSY, reel drive pressure

1шт.

18

196858C1

HOSE ASSY.

HOSE ASSY, reel drive priority, 49 in., for 47 in. feeder

1шт.

18

196878C1

HOSE

ASSY, reel drive priority, 56 in., for 54.5 in. feeder

1шт.

19

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male

1шт.

20

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self-sealing female

1шт.

21

196745C1

HYD TUBE

TUBE ASSY, reel drive return

1шт.
