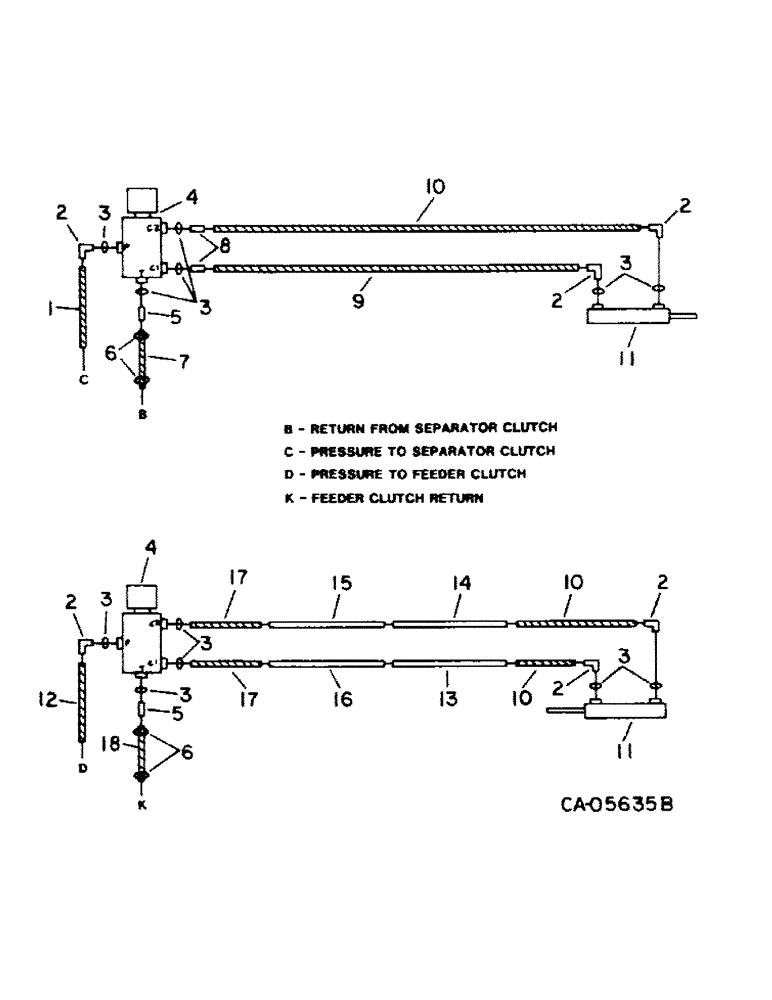

Запчасти Case IH 1440 (10-14) - HYDRAULICS, FEEDER AND SEPARATOR CLUTCH CYLINDER DIAGRAM, MODULAR CONTROL (07) - HYDRAULICS

1

178961C1

HOSE,7.9 mm ID x 1270.00 mm, SAE 100R1

- Separator Clutch 7.9 mm ID x 1270.00 mm, SAE 100R1

1шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

6шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

12шт.

4

187505C91

VALVE

feeder and separator clutch, refer to this group under feeder and separator clutch valve

2шт.

5

178036C1

CONNECTOR, ELEC

CONNECTOR, 9/16-18 x 3/8 beaded tube

2шт.

6

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, clutch return hose

4шт.

7

HOSE, separator clutch return, use 22 in. of 3/8 ID hose from 50 ft roll marked 180730C1

1шт.

8

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short

2шт.

9

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE ASSY, separator clutch cylinder, 17 in.

1шт.

10

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

Feeder and Separator Clutch 0.31" ID x 20.00", SAE 100R1

3шт.

11

108635C91

CYLINDER ASSY.

CYLINDER ASSY, feeder and separator clutch, use cylinder 133408C91 and package 180075C91, for contents of package 180075C91 refer to group 7 under separator drive, Serial Range: -1500

1шт.

63884C92

SEAL KIT

KIT, cylinder service

1шт.

11

133405C92

CYLINDER

ASSY, feeder clutch

1шт.

11

87337239R

REMAN-HYD CYLINDER

1440 CASE IH AXIAL-FLOW COMBINE (NORTH AMERICA), Assy, Feeder Clutch (1/77-12/84), Reman for New PN 133405C92

1шт.

11

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

11

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSY, separator clutch, for service parts for cylinders refer to Cyl-1 Section B, Start Serial: 1501

1шт.

63884C92

SEAL KIT

KIT, cylinder service

1шт.

12

632455R91

HOSE

feeder clutch pressure, 14 in.

1шт.

13

196823C2

HYD TUBE

TUBE ASSY, feeder clutch lower

1шт.

14

196793C1

HYD TUBE

TUBE ASSY, feeder clutch lower

1шт.

15

196748C1

HYD TUBE

TUBE ASSY, feeder clutch upper rearward

1шт.

16

196792C1

HYD TUBE

TUBE ASSY, feeder clutch upper forward

1шт.

17

548745R1

HYDRAULIC HOSE,0.38" ID x 12.00", SAE 100R1

Feeder Clutch to Cylinder Upper 0.38" ID x 12.00", SAE 100R1

2шт.

18

HOSE, feeder clutch return, use 12.5 in. of 3/8 ID hose from 50 ft roll marked S118400

1шт.
