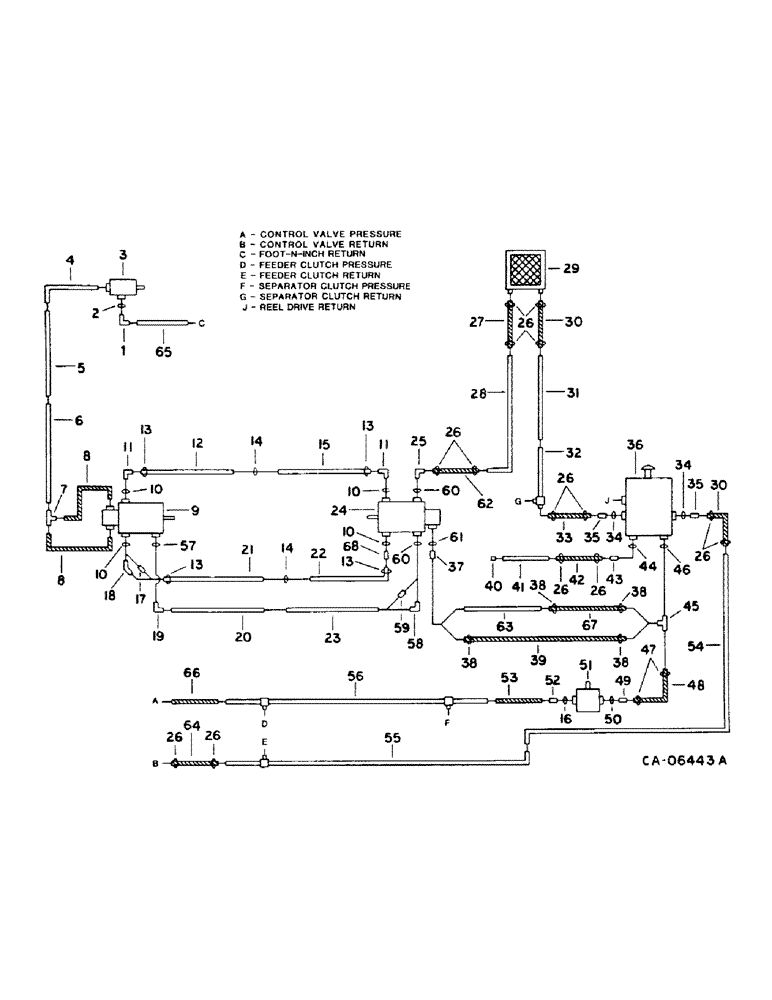

Запчасти Case IH 1440 (10-06) - HYDRAULICS, HYDROSTATIC MOTOR, PUMP AND HEADER LIFT DIAGRAM, S/N 20001 & ABOVE (07) - HYDRAULICS

1

164596C1

ELBOW

9/16-18 37 deg hyd flared tube 90 deg

1шт.

3

VALVE, foot-n-inch, refer to this group under foot-n-inch valve

1шт.

4

187730C1

HYD TUBE

TUBE ASSY, foot-n-inch upper

1шт.

5

187731C1

TUBE

ASSY, foot-n-inch center

1шт.

6

197508C1

HYD TUBE

TUBE ASSY, foot-n-inch lower

1шт.

7

9402979

TEE,7/16"-20, 37 Degree

7/16-20 37 deg flared tube

1шт.

8

175760C1

HOSE ASSY.

HOSE ASSY, foot-n-inch

2шт.

9

MOTOR, hydrostatic, refer to this group under hydrostatic motor

1шт.

10

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 in. OD tube

6шт.

11

595408R1

90 ELBOW

1-5/16-12 x 1 in. OD tube end 90 deg

2шт.

12

196533C2

TUBE

ASSY, hydrostatic drive reverse lower pressure, includes ref. no. 13

1шт.

13

165722C1

SLEEVE

tube nut rubber

4шт.

14

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 x 1/8

2шт.

15

196992C2

PIPE

TUBE ASSY, hydrostatic drive reverse upper pressure, includes ref. no. 13

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 type 8

1шт.

123920

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 in. OD tube

1шт.

17

(Not used this application)

1шт.

18

595406R1

ELBOW

45 deg adj

1шт.

19

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube 90 deg, for Sundstrand

2шт.

19

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 90 deg hyd flared, for Eaton

1шт.

20

196750C1

HYD TUBE

TUBE ASSY, hydrostatic bleed lower, for Sundstrand

1шт.

20

183763C2

HYD TUBE

TUBE ASSY, hydrostatic bleed lower, for Eaton

1шт.

21

196531C2

TUBE

ASSY, hydrostatic drive forward lower pressure, includes ref. no. 13

1шт.

22

196991C2

PIPE

TUBE ASSY, hydrostatic drive forward upper pressure, includes ref. no. 13

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 type 8

1шт.

123920

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

196749C1

HYD TUBE

TUBE ASSY, hydrostatic bleed upper, for Sundstrand

1шт.

23

183764C1

HYD TUBE

TUBE ASSY, hydrostatic bleed upper, for Eaton

1шт.

24

PUMP, hydrostatic, refer to this group under hydrostatic pump

1шт.

25

387489R91

ELBOW

7/8-14 x 3/4 OD tube end 90 deg, for Sundstrand

1шт.

25

387006R91

ELBOW

1-1/16-12 90 deg hyd flared, for Eaton

1шт.

26

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, hose

1шт.

27

HOSE, hydrostatic pump to oil cooler, use 18 in. of 5/8 ID hyd hose from 25 ft roll marked S118576

1шт.

28

183831C1

HYD TUBE

TUBE ASSY, hyd, Serial Range: pump-cooler

1шт.

29

OIL COOLER, refer to this group under oil cooler

1шт.

30

HOSE, reservoir to oil cooler & header lift return, use 18 in. of 3/4 ID hyd hose from 25 ft roll marked 180720C2

2шт.

31

183830C1

HYD TUBE

TUBE ASSY, Serial Range: reservoir-cooler

1шт.

32

196762C1

HYD TUBE

TUBE ASSY, reservoir to oil cooler

1шт.

33

HOSE, reservoir to oil cooler, use 18 in. 3/4 ID hyd hose from 25 ft roll marked 180720C2

1шт.

34

O-RING, refer to this group under hyd reservoir

1шт.

35

FITTING, refer to this group under hyd reservoir

1шт.

36

RESERVOIR, hydraulic, refer to this group under hydraulic reservoir

1шт.

37

387488R1

CONNECTOR, ELEC

CONNECTOR, 7/8-14 and 3/4 beaded hyd flared tube reducing, for Sundstrand

1шт.

37

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-5/16-12 37 deg hyd flared, for Eaton

1шт.

38

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, suction hose, for Sundstrand

2шт.

38

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, suction hose, for Eaton

2шт.

39

HOSE, charge suction, use 24.5 in. of 3/4 in. ID hose from 25 ft. roll S118569, for Sundstrand

1шт.

40

9403373

CAP,37 Degree, 7/8"-14

reservoir drain hose

1шт.

41

187822C1

HYD TUBE,5/8" OD, 14, 1.2" Length

TUBE ASSY, reservoir drain

1шт.

42

HOSE, reservoir drain, use 15 in. of 5/8 I.D. hose from 25 ft roll marked S118576

1шт.

43

FITTING, refer to this group under hyd reservoir

1шт.

44

O-RING, refer to this group under hyd reservoir

1шт.

45

1301300C1

TEE

charge pump suction, for Sundstrand

1шт.

45

1301506C1

TEE

charge pump suction, for Eaton

1шт.

46

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1/2 in. OD tube

1шт.

47

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, header lift suction hose

2шт.

48

1310703C1

HOSE

header lift suction

1шт.

49

180182C1

FITTING

CONNECTOR, 1-5/16-12 x 1 in. beaded

1шт.

50

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD

1шт.

51

PUMP, hydraulic, refer to this group under auxiliary hydraulic pump

1шт.

52

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg flared

1шт.

53

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

header lift pressure

1шт.

54

196743C1

TUBE ASSY.

TUBE ASSY, header lift return rear

1шт.

55

196744C1

HYD TUBE

TUBE ASSY, header lift return front

1шт.

56

196747C1

HYD TUBE

TUBE ASSY, header lift pressure

1шт.

57

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 in. OD tube, for Sundstrand

1шт.

57

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 in. OD tube, for Eaton

1шт.

58

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 90 deg. flared hyd, for Sundstrand

1шт.

59

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1-1/16-12 hyd flared, for Eaton

1шт.

60

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 in. OD tube, for Sundstrand

1шт.

60

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 in. OD tube, for Eaton

1шт.

61

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 in. OD tube, for Sundstrand

1шт.

61

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 in. OD tube, for Eaton

1шт.

62

HOSE, hydrostatic pump to oil cooler, use 18 in. of 3/4 ID hyd hose from 25 ft roll marked 180720C2, for Eaton

1шт.

63

183593C1

HYD TUBE

TUBE ASSY, charge suction, for Eaton

1шт.

64

HOSE, header lift return, use 7 in. of 3/4 in. ID hose from 25 ft roll marked 180720C2

1шт.

65

1301539C1

HYD TUBE

TUBE ASSY, foot-n-inch return

1шт.

66

156436H1

HYDRAULIC HOSE,0.50" ID x 20.00", SAE 100R1 Class 7

Header Lift Pressure 0.50" ID x 20.00", SAE 100R1 Class 7, Start Serial: 30485

1шт.

66

155225C91

HOSE ASSY.

HOSE ASSY, header lift pressure, Serial Range: -30484

1шт.

67

183601C1

HOSE,25.4 mm ID x 355.60 mm, SAE 100R4 CLASS 4, SAE 100R3 CLASS 5

charge suction, for Eaton

1шт.

68

163915C1

FITTING

CONNECTOR, 1-5/16-12 37 deg hyd flared

1шт.

2

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
