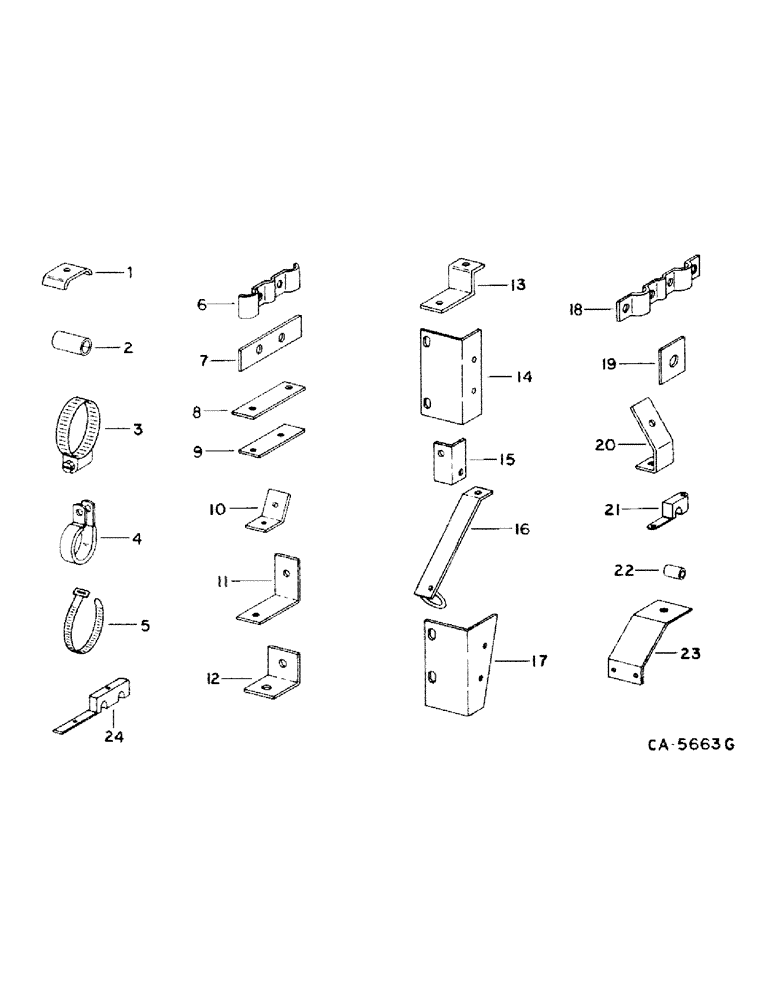

Запчасти Case IH 1440 (10-01) - HYDRAULICS, HYDRAULIC CLAMPS, STRIPS AND SUPPORTS (07) - HYDRAULICS

1

165601C1

CLAMP

.406 dia. hole, for use with automatic header control lower pressure (AR), header list (AR), pump to cooler reel drive (AR), reservoir to cooler (AR), reservoir drain, reel drive

1шт.

1

165602C1

CLAMP

.344 dia. hole, for use with feeder clutch and steering tubes (AR), reel lift (AR), steering rearward unloader swint (AR)

1шт.

2

163489C1

STRIP

for 1/4 in. OD tube, for use with foot-n-inch unloader swing

1шт.

2

163490C1

RUBBER INSULATOR

STRIP, 3/8 in. OD tube, for use with feeder clutch and steering (AR), reel lift (AR), steering (AR)

1шт.

2

163492C1

RUBBER INSULATOR

STRIP, for 5/8 in. OD tube, for use with automatic header control lower pressure (AR), header lift (AR), pump to cooler reel drive (AR), reservoir to cooler, reservoir drain, reel drive

1шт.

2

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

for 3/4 in. OD tube, for use with header lift (AR), pump to cooler, reservoir to cooler (AR)

1шт.

2

163491C1

RUBBER INSULATOR

STRIP, for 1/2 in. OD tube, for use with automatic header control reel drive

1шт.

2

183827C1

STRIP

hyd tube clamp

1шт.

2

187935C1

STRIP

hyd tube clamp

1шт.

3

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, no. 12, for use with cooler to reservoir (AR), header lift return (AR), pump to cooler (AR), reel drive return (AR), reservoir drain (AR)

1шт.

3

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, no. 24 header lift suction

1шт.

3

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

For use with clutch return (AR), feeder clutch return (AR), steering return (AR), swing valve return (AR) #06, .44/.78 Type F Worm

1шт.

3

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, no. 32 unloader swing cylinder

1шт.

3

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, no. 16 charge suction

1шт.

3

995219R1

CLIP

CLAMP, no. 24 reel drive suction

1шт.

4

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

steering, insulated

1шт.

4

126166

GEAR

CLIP, foot-n-inch, uninsulated

1шт.

5

702093C1

CABLE TIE

STRAP, separator clutch

1шт.

5

306132C1

CABLE TIE,14.5" L

STRAP, steering hand pump hose, reel drive suction hose

1шт.

6

178984C1

CLAMP

hydrostatic drive lower tube

1шт.

7

150779C1

TUBE

STRAP, 1/4 in. hydrostatic drive lower tube

1шт.

7

150780C1

STRAP

1/8 in. hydrostatic drive lower tube

1шт.

8

187509C1

BAR

header lift

1шт.

8

187510C2

BAR

header lift

1шт.

9

196868C1

BAR

SUPPORT RESERVOIR TO COOLER, reel drive return and foot-n-inch tube

1шт.

10

178960C1

BRACKET

ANGLE, steering rearward

1шт.

11

178950C1

ANGLE

header lift support

1шт.

11

183899C1

ANGLE

steering hand pump hose

1шт.

12

176394C1

ANGLE

header lift tube

1шт.

13

196517C1

SUPPORT TUBE

SUPPORT, for use with feeder clutch and steering tubes (AR), hydrostatic, Serial Range: pump-cooler

1шт.

14

187936C2

BRACKET

ANGLE, hydrostatic support rear

1шт.

15

196872C1

ANGLE

steering support

1шт.

16

173143C1

SUPPORT ASSY.

SUPPORT ASSY, header lift hose

1шт.

17

187937C2

BRACKET

ANGLE, hydrostatic support front

1шт.

18

187934C1

CLAMP

hydrostatic tube

1шт.

19

156715C1

BAR

tube clamp

1шт.

19

573186R1

PLATE

BAR, tube clamp, for use with automatic header control

1шт.

20

183829C1

BRACKET

hyd tube, reservoir to cooler tube

1шт.

21

183820C1

CLAMP

hyd tube, for 1/4 OD tube

1шт.

21

183821C1

CLAMP

hyd tube, for 3/8 OD tube

1шт.

21

183822C1

CLAMP

hyd tube, for 5/8 OD tube, reel drive

1шт.

21

183823C1

CLAMP

hyd tube, for 3/4 OD tube

1шт.

22

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

.407 x .625 x 1.00

1шт.

23

(Not used this application)

1шт.

24

183824C1

CLAMP

1/4 x 1/4

1шт.

24

183825C1

CLAMP

3/8 x 3/8

1шт.

24

183826C1

CLAMP

3/4 x 3/4

1шт.

24

121714C1

CLAMP

3/4 x 5/8

1шт.

24

1301178C1

CLAMP

1/2 x 1/2

1шт.
