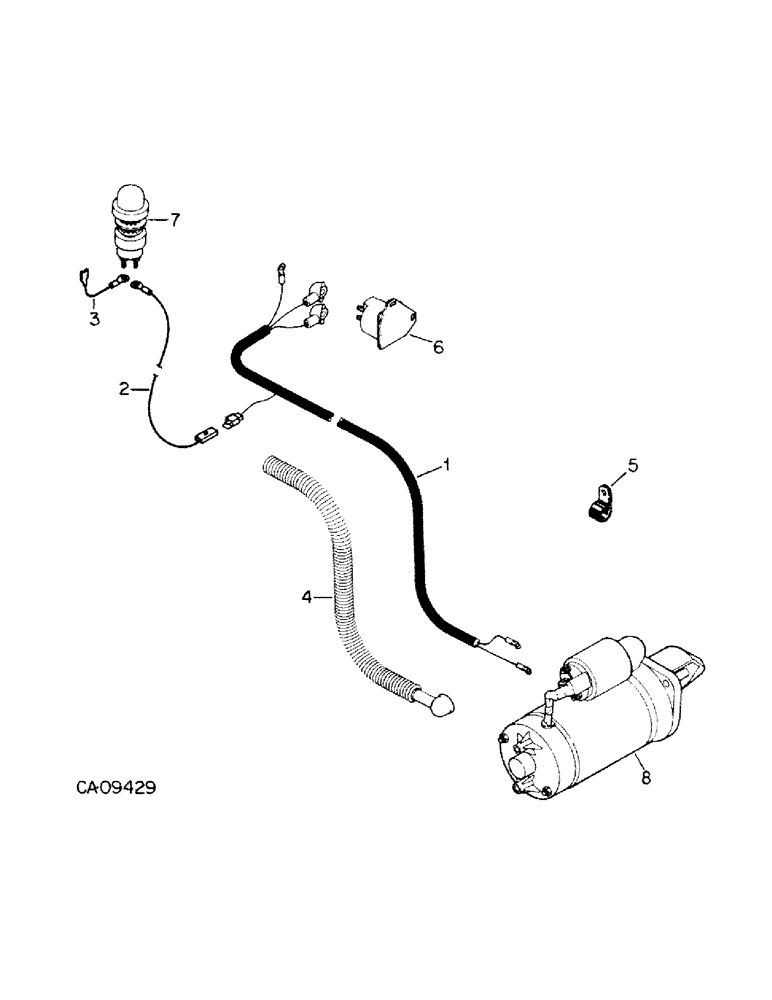

Запчасти Case IH 1440 (08-35) - ELECTRICAL, FEEDER REVERSER WIRING (06) - ELECTRICAL

1

245957C1

HARNESS

ASSY, feeder reverser

1шт.

2

92157C1

CABLE

feeder reverser switch

1шт.

3

92158C1

CABLE

feeder reverser jumper

1шт.

4

92024C1

ELECTRICAL WIRE

CABLE ASSY, positive battery

1шт.

5

299269C91

CLAMP

cable rubber cushioned

10шт.

6

121613C1

IGNITION SWITCH

SWITCH, magnetic relay

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

7

453453C1

SWITCH

feeder reverser push-button

1шт.

8

MOTOR, feeder reverser, refer to this unit under feeder reverser motor

1шт.
