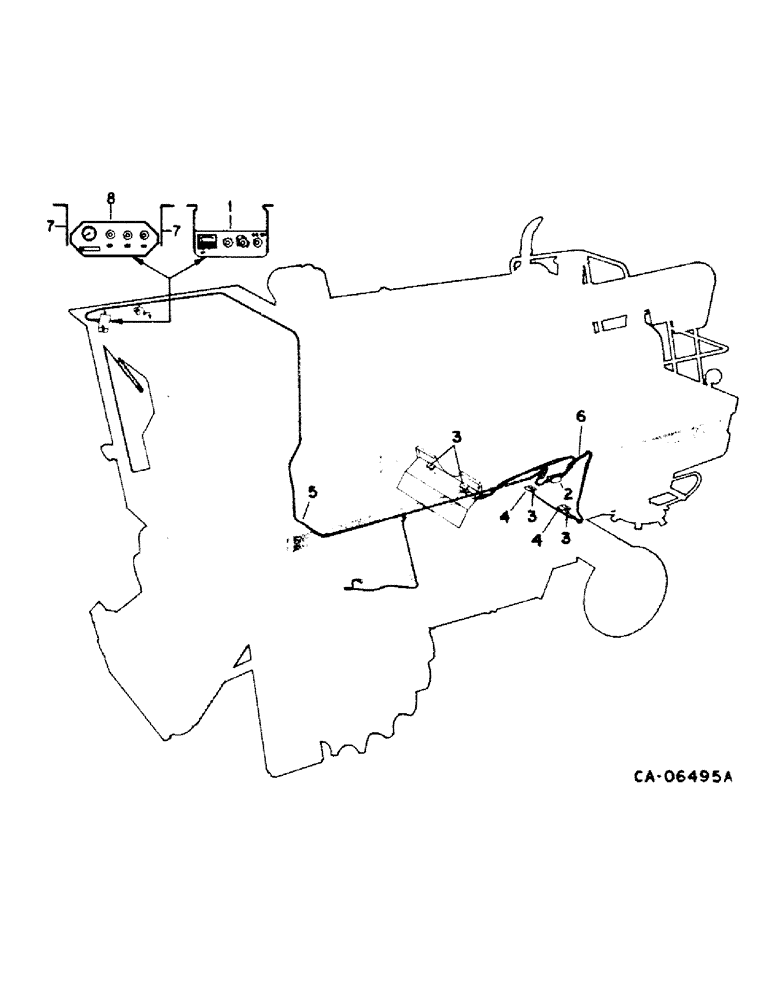

Запчасти Case IH 1440 (08-31) - ELECTRICAL, GRAIN LOSS MONITOR (06) - ELECTRICAL

1

1310676C2

CONTROL

grain loss monitor, Sed

1шт.

2

245736C1

BLOCK

monitor control junction, replaces 1310677C1 and 245069C2, Sed

1шт.

2

245306C1

HARNESS

ASSY, Y-connector, Dickey John

1шт.

Ref. 2a P/N 245306c1 should be changed to Ref. 9.

1шт.

3

1301700C1

TRANSMITTER

SENSOR, monitor control, Sed

4шт.

3

245283C1

SENSOR

AND BRACKET, sieve, Dickey John

2шт.

3

245285C1

SENSOR

AND BRACKET, rotor, Dickey John

2шт.

4

1310680C1

SUPPORT

sensor mounting, Sed

2шт.

5

245067C1

HARNESS

ASSY, main, replaces 1310678C1, Sed

1шт.

5

245304C1

HARNESS

ASSY, main, Dickey John

1шт.

Ref. 5a P/N 245304c1. Is the main harness for Dickey-John system. It goes the full length of the Machine. It does not send a lead to theTransmission Sensor. It goes directly to the sensors without going through a monitor control junction block, like SED uses.

1шт.

6

245737C1

HARNESS

ASSY, distance cable, replaces 1310679C1 and 245068C1, Sed

1шт.

Ref. 6 P/N 245737c1 Is the rear sensor harness for SED, not the distance harness.

1шт.

6

245305C1

HARNESS

ASSY, distance cable, Dickey John

1шт.

Ref. 6a 245305C1 Should be changed to Ref. 10. This is the distance cable for the Dickey-John System. It hooks to the Y-Patch Cable at the Transmission Sensor and parallels Ref. 5 all the way to the monitor in the roof of the cab.

1шт.

7

1319499C1

SUPPORT

BRACKET, monitor control mounting, Dickey John

2шт.

8

245757C1

INSTRUMENT CLUSTER

CONTROL, grain loss monitor, replaces 245250C1, Dickey John

1шт.

145510

FUSE,1 Amp, Type 3AG

1 amp

1шт.

245328C1

EXTENSION

battery cable, not illustrated, used with Dickey John monitor 245250C1 only, connects monitor to 12 volt power supply

1шт.
