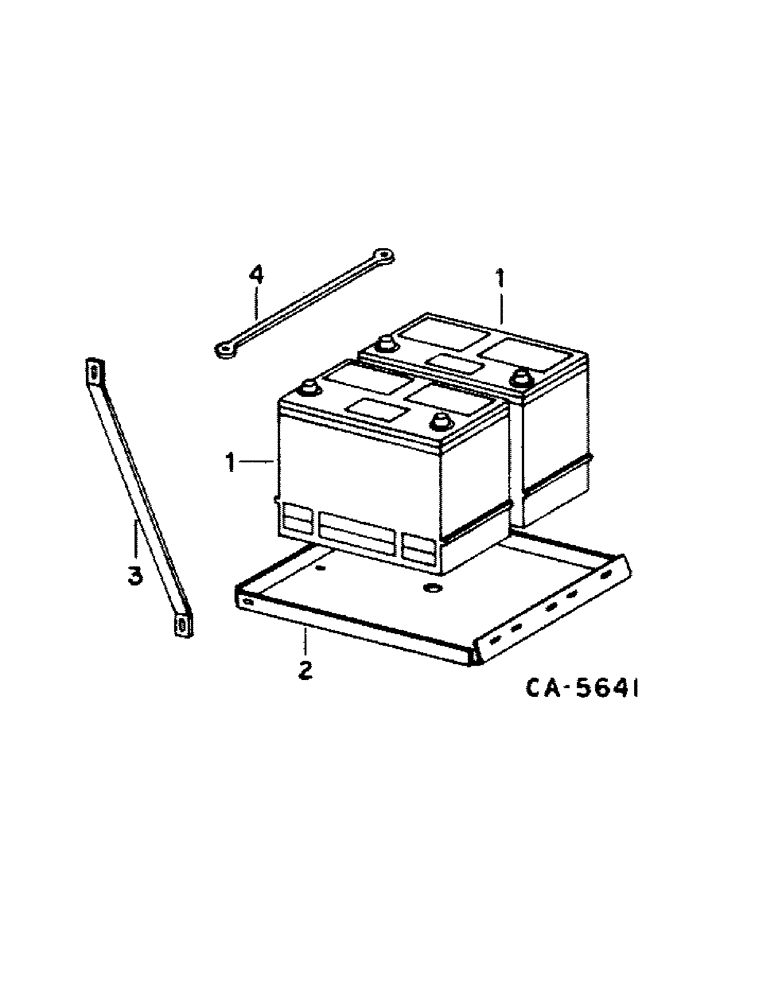

Запчасти Case IH 1440 (08-30) - ELECTRICAL, BATTERY AND MOUNTING (06) - ELECTRICAL

1

A186013

DRY BATTERY

12 volt, replaces 121787C1

2шт.

2

194267C3

TRAY

battery

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 1 znp slt-truss-hd

1шт.

3

194266C1

SUPPORT

battery tray

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

188116C1

CLAMP

battery hold down

1шт.

21080R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT, 5/16 x 9 crg type 1

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

935736R1

NUT, WING

NUT, 5/16 wing

1шт.
