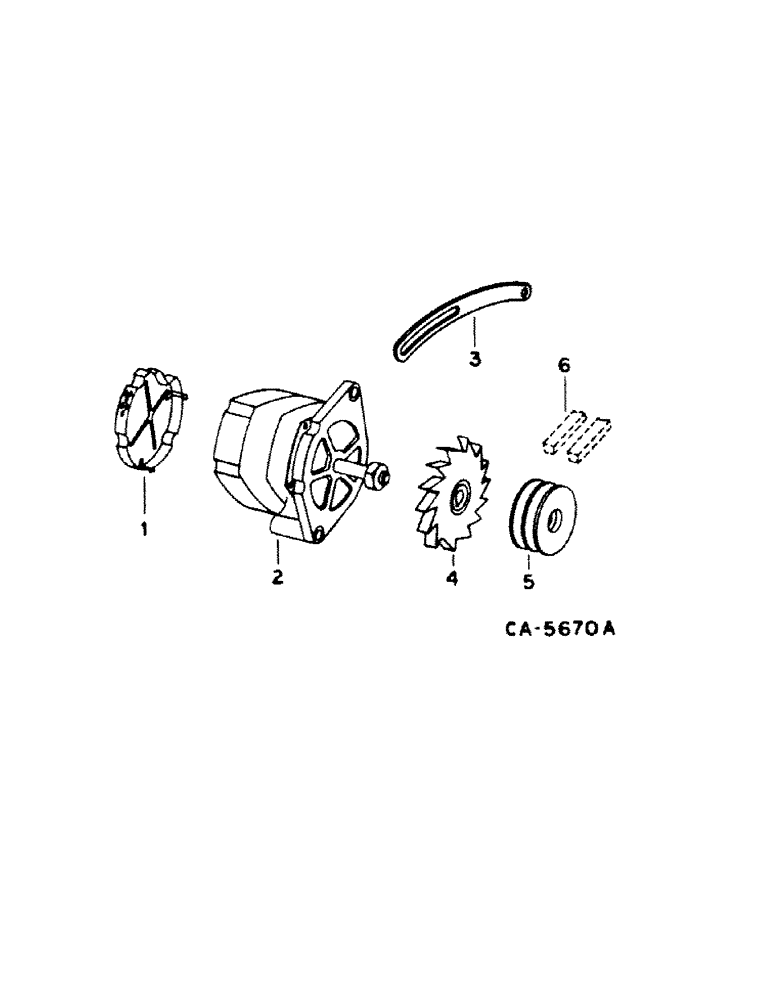

Запчасти Case IH 1440 (08-20) - ELECTRICAL, ALTERNATOR-GENERATOR AND MOUNTINGS, ALL EXCEPT 90 AMP MOTOROLA ALTERNATOR (06) - ELECTRICAL

1

1851153

SHIELD

cover, for alternator 1102922 & 1103160 & 1103184

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

2

ALTERNATOR-GENERATOR, refer to this group under alternator-generator

1шт.

3

532418R1

BRACE

adjusting

1шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

M8 x 30 pln class 8.8

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

221425R1

FAN

alternator-generator

1шт.

5

537070R1

PULLEY

alternator-generator, 4.35 in. dia., for alternators 1102922, 1103160, 1103184 and 1105178, for alternator 1105574, Serial Range: -50073

1шт.

5

107686C1

PULLEY

alternator-generator, 4.35 in., dia., for alternator 146466C91, Serial Range: -50073

1шт.

5

1252602C1

X

PULLEY, alternator-generator, 3.5 in. dia., or

1шт.

5

131042C1

PULLEY

alternator-generator, for alternators 1105574 and 146466C91, Start Serial: 50074

1шт.

6

BELT, matched set, refer to group 12 under engine belt diagram

1шт.
