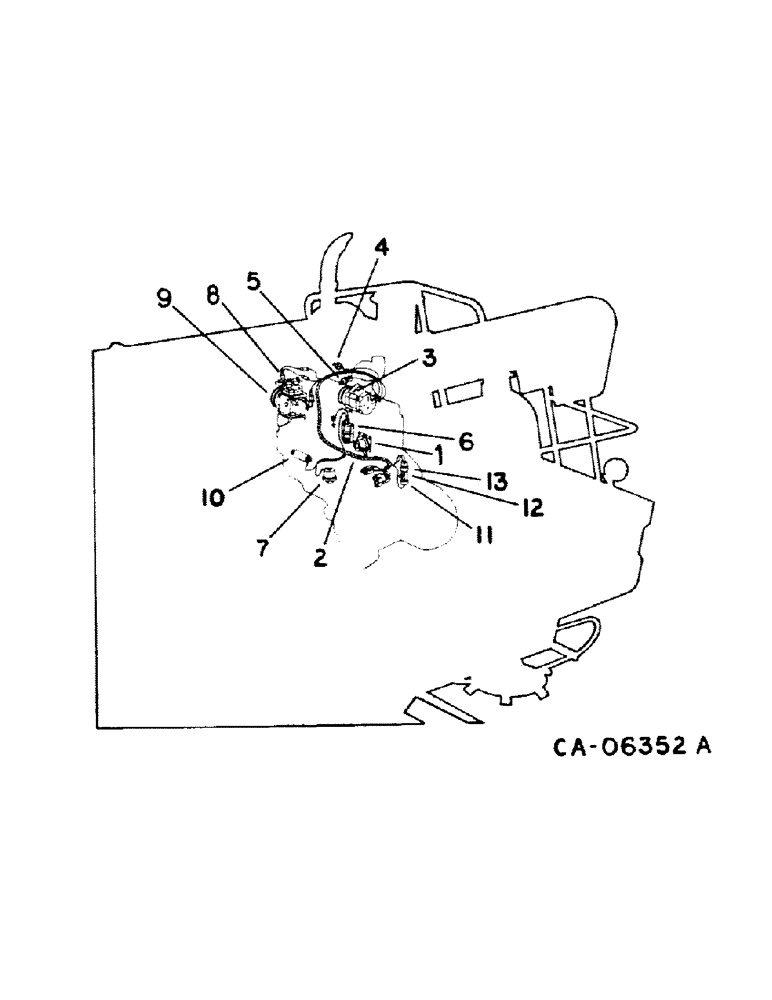

Запчасти Case IH 1440 (08-07) - ELECTRICAL, WIRING DIAGRAM, ENGINE (06) - ELECTRICAL

1

RELAY, cranking motor solenoid, refer to this group under wiring diagram main harness, starter and battery

1шт.

2

107642C1

HARNESS

ASSY, engine, Serial Range: -20000

1шт.

2

245950C1

HARNESS

ASSY, engine, replaces 107643C2, Start Serial: 20001

1шт.

Ref. 2, P/N 107642C1 harness has a 3 prong connector that goes to the alternator, item, 2a, P/N 245950c1 harness, has a 2 prong connector that goes to the alternator.

1шт.

3

ALTERNATOR-GENERATOR, refer to this group under alternator-generator

1шт.

4

121756C2

SENSOR

SENDER, water temperature gage

1шт.

5

130861C1

SWITCH

water hi-temp light

1шт.

6

SOLENOID ASSY, ether injection, refer to group 12 under ether starting

1шт.

7

130707C3

SENDER UNIT

SENDER, oil pressure gage

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

8

SWITCH, high pressure, refer to group 13 under air conditioner, compressor and condenser

1шт.

9

CLUTCH ASSY, compressor, refer to group 13 under air conditioner, compressor and condenser

1шт.

10

681494C92

RELAY

SOLENOID ASSY, injection pump

1шт.

11

392249R92

SWITCH

low oil pressure light

1шт.

12

9409939

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

1/8-27 int/int/ext pipe, Serial Range: -20001

1шт.

443998

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

1/8-27 pln auto pipe

1шт.

13

131424C1

SWITCH

pressure, Start Serial: 20001

1шт.
