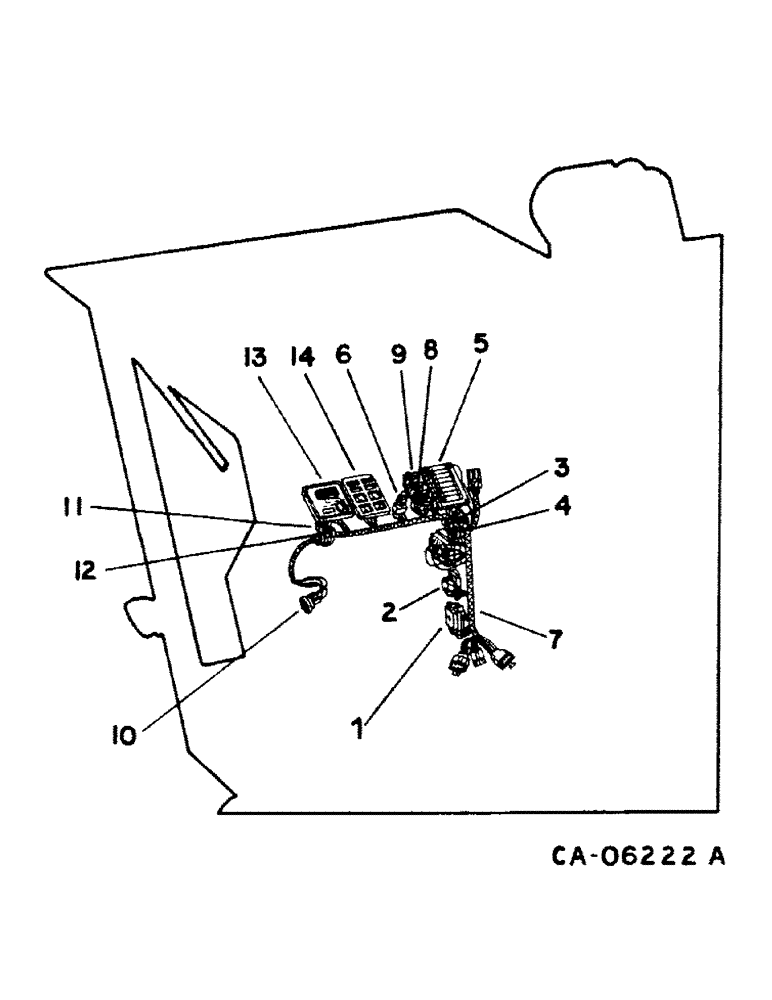

Запчасти Case IH 1440 (08-04) - ELECTRICAL, WIRING DIAGRAM, INSTRUMENT PANEL, S/N 20000 AND BELOW (06) - ELECTRICAL

1

187609C1

RECTIFIER

ASSY, diode, Prestolite

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

2

107655C1

SOLENOID SWITCH

SWITCH ASSY, magnetic start

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

196876C91

CIRCUIT BREAKER

BREAKER ASSY, circuit, 30 amp

1шт.

262969C91

FUSE

BREAKER, circuit, 30 amp

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

4

121590C1

RELAY

alternator

1шт.

Ref. 5a P/N 245304c1. Is the main harness for Dickey-John system. It goes the full length of the Machine. It does not send a lead to theTransmission Sensor. It goes directly to the sensors without going through a monitor control junction block, like SED uses.

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

5

196875C1

BLOCK

fuse panel

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3118918R1

FUSE

cartridge type, 5 amp

1шт.

117142

FUSE,10 Amp, Type 3AG

cartridge type, 10 amp

4шт.

432644

FUSE,20 Amp, Type SFE

cartridge type, 20 amp

2шт.

223-31

FUSE,10 Amp, Type 3AG

cartridge type, 30 amp

1шт.

6

107682C1

SWITCH

ASSY, key starting

1шт.

365502R1

NUT

switch mtg

1шт.

131313C1

KEY, IGNITION

switch

1шт.

7

195784C4

HARNESS

console

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

86511922

SCREW,Pan, #10 - 24 x 3/4"

no. 10 x 3/4 P/HDCR mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

8

198960C1

SWITCH

ASSY, ether starting and rotor

2шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

9

195605C1

SWITCH

ASSY, lights

2шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

10

121628C1

BUZZER

audible alarm

1шт.

11

1301522C1

SWITCH

ASSY, feeder clutch, machines w/o feeder reverser

1шт.

11

245634C1

SWITCH

ASSY, feeder reverser, machines w/feeder reverser

1шт.

12

187560C1

SWITCH

ASSY, separator clutch

1шт.

13

TACHOMETER, multi-position, refer to group 11 under instruments and gages

1шт.

14

GAGE CLUSTER, refer to group 11 under instruments and gages

1шт.
