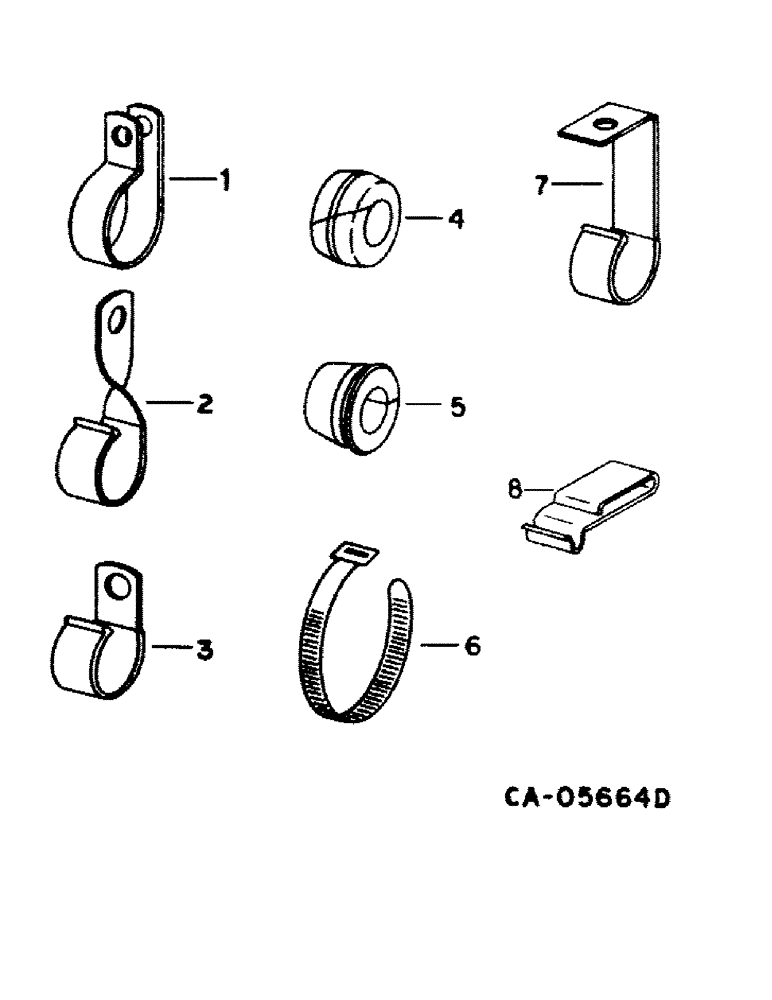

Запчасти Case IH 1440 (08-01) - ELECTRICAL, CLIPS, GROMMETS AND STRIPS (06) - ELECTRICAL

1

129355H1

NO LONGER SERVICED

CLIP, center harness

1шт.

Uninsulated

1шт.

1

299607C1

CLIP,1 3/16", Insul, 1/4" Bolt

console harness

1шт.

Insulated

1шт.

1

573099R2

CLIP

battery cable

1шт.

Insulated

1шт.

1

1300542C1

CLAMP,1 3/8", 5/16" Bolt

CLIP, center harness

1шт.

Uninsulated

1шт.

1

245738C2

CLAMP

CLIP PACKAGE, grain loss monitor, consists of (6) clamps, (NSS), (6) nuts (NSS)

1шт.

Insulated

1шт.

2

363660R1

CLIP

front harness, (2) alternator cable, (2) cranking motor

1шт.

Insulated

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, front harness, fan motor lower harness (AR), throttle bracket, shaft speed (AR), limit switch, tachometer and RH light harness (AR), rotor harness support

1шт.

Insulated

1шт.

3

362126R1

CLIP

center harness long, condensate hose support, RH (AR)

1шт.

Insulated

1шт.

3

362127R1

CLIP

shaft speed monitor control

1шт.

Insulated

1шт.

3

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP

1шт.

Steering column harness, center harness, console harness (AR), front harness (AR), rear harness (AR), tach and RH light harness (AR), fuel filter, operators platform harness (AR), feeder harness (AR), automatic header control (AR), shaft speed (AR), engine

1шт.

Insulated

1шт.

3

366460R1

CABLE CLIP

CLIP, center harness (AR), front work light harness (AR)

1шт.

Insulated

1шт.

3

362123R1

CLIP

crankcase and water pump (AR), trim sheet brace

1шт.

Insulated

1шт.

3

362667R1

CLIP

either start bracket, A/C compressor clutch wire

1шт.

Insulated

1шт.

3

362666R1

CLIP

monitor control

1шт.

Insulated

1шт.

4

117959

GROMMET,5/16" ID x .719" x .062"

5/16 x .75, rotor sensor, tachometer and RH light harness

1шт.

4

117972

GROMMET,1/4" ID x 1" x .062", Diag Cut

5/16 x 1 rear harness

1шт.

4

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

1/2 x 1-1/16 x 7/16 tachometer

1шт.

4

128449C1

GROMMET

feeder transducer

1шт.

4

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

5/16 x .72 center harness

1шт.

4

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

5/16 x 1 RH light harness

1шт.

5

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

wiring harness, shaft speed monitor

1шт.

5

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

wiring harness, operator's platform harness

1шт.

5

195806C1

GROMMET

1.12 x .750, used for, operators platform harness

1шт.

6

702093C1

CABLE TIE

STRAP, TIE

1шт.

Steering column harness (AR), center harness (AR), rear harness (AR), engine harness (AR), front harness (AR), fuel tank ground cable, indicator lights ground cable, tachometer and RH light harness (AR), shaft speed monitor control (AR), monitor harness (AR), console harness (AR), feeder harness (AR), condensate hose, RH, automatic header control (AR), RH console (AR), fan motor lower harness (AR)

1шт.

6

291207C1

CLAMP

STRAP, tie

1шт.

6

289862C1

CABLE TIE,3/16" x 7"

STRAP, tie, headlight ground cable

1шт.

7

(Not used this application)

1шт.

8

(Not used this application)

1шт.
