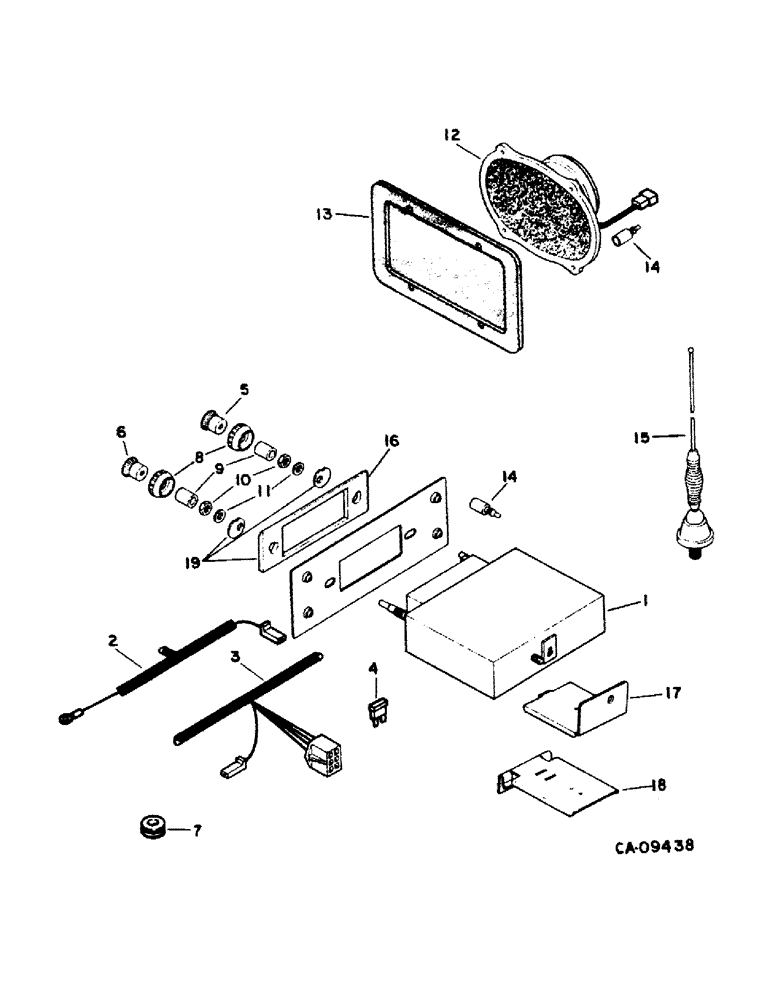

Запчасти Case IH 1440 (13-35) - SUPERSTRUCTURE, RADIO, 15 WATT/CHANNEL (05) - SUPERSTRUCTURE

1

245344C91

RADIO

15W/channel AM, audiovox

1шт.

1

245160C91

RADIO

15W/channel AM-FM stereo, audiovox

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

2

92051C1

HARNESS

power

1шт.

3

91729C1

HARNESS

radio and speaker, includes ref no. 4

1шт.

4

131220C1

FUSE

auto type ATC 5, tan

1шт.

5

111381C1

KNOB

volume control

1шт.

6

111382C1

KNOB

tuning control

1шт.

7

365919R1

GROMMET,3/8" ID x 5/8" Groove Dia

antenna cable

1шт.

8

385532C1

KNOB

inner control, chrome

2шт.

9

84240C1

SPACER

3/8 x 5/8 x 19mm

2шт.

10

142921C1

NUT

shaft

2шт.

11

142920C1

WASHER

shaft

2шт.

12

84099C1

SPEAKER

4 x 8 4 ohm

2шт.

13

118258C1

PANEL

GRILLE, speaker

2шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 polyseal

8шт.

14

117995C1

PACKAGE

spacer toggle, consists of (5) fastener, toggle (NSS)

3шт.

15

111237C1

ANTENNA

ASSY, complete

1шт.

16

187625C2

PLATE

radio dial cover

1шт.

Ref.16 P/N 187625C2 line stemming from number 16 in the diagram should go to the right, not the left.

1шт.

17

84048C1

BRACKET

rear support slide

1шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 1/2"

1шт.

18

84049C1

BRACKET

rear support

1шт.

19

84103C1

PANEL

radio trim highlight

1шт.

91667C1

PACKAGE

PARTS ACCESSORY, radio installation, consists of ref nos 2 thru 19 and instructions (NSS)

1шт.

118154C91

ACCESSORIES

PARTS ACCESSORY, headphone connecting jack, consists of cable (NSS), harness (NSS)

1шт.

118106C1

WASHER

cup trim

1шт.

INSTRUCTIONS (NSS)

1шт.
