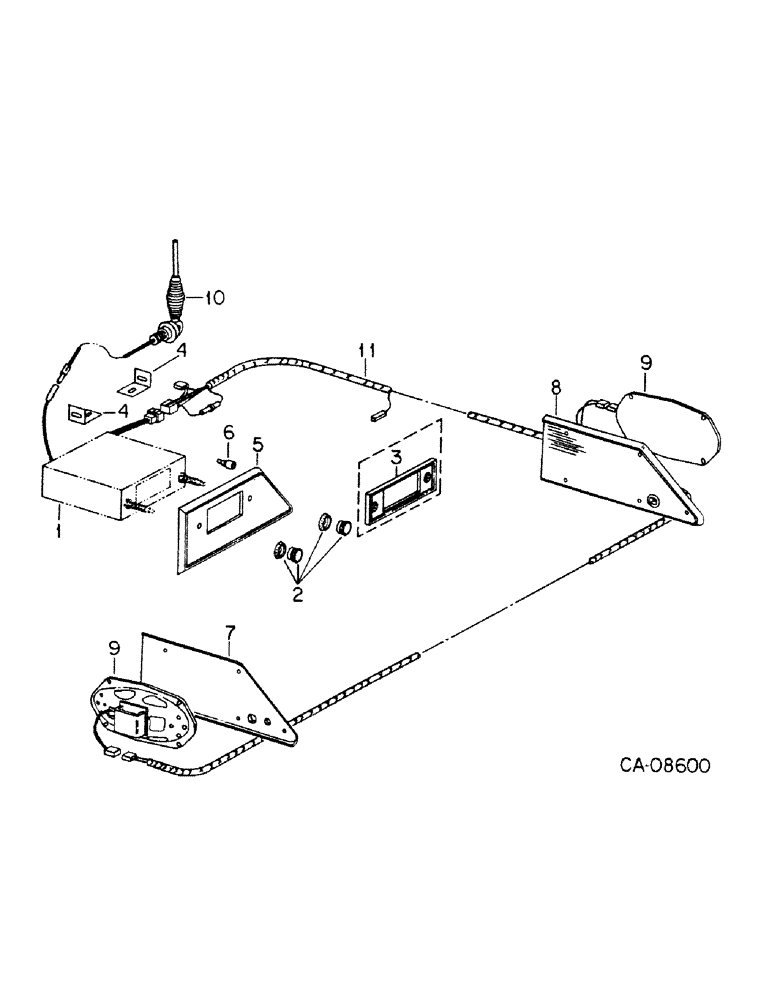

Запчасти Case IH 1440 (13-32) - SUPERSTRUCTURE, RADIO, ALL EXCEPT AM/FM/CB MULTIPLEX AND 15 WATT/CHANNEL RADIOS (05) - SUPERSTRUCTURE

111640C92

RADIO

PARTS ACCESSORY, AM radio w/fader control, consists of radio 111643C1, ref. nos. 2 thru 11 and instructions

1шт.

Radio completing kit, 143186C92 must also be furnished

1шт.

111641C92

RADIO

PARTS ACCESSORY, AM/FM monaural radio w/fader control, consists of radio 111645C1, ref. nos. 2 thru 11 and instructions

1шт.

Radio completing kit, 143186C92 must also be furnished

1шт.

111642C92

RADIO

PARTS ACCESSORY, AM/FM MPX radio with 8 track tape player, consists of radio, 111647C1, ref. nos. 2 thru 11 and instructions

1шт.

Radio completing kit, 143186C92 must also be furnished

1шт.

146558C91

RADIO

PARTS ACCESSORY, AM/FM push button MPX stereo radio, consists of radio, 146560C1, ref. nos. 2 thru 11 and instructions

1шт.

Radio completing kit, 143186C92 must also be furnished

1шт.

146559C91

PACKAGE

PARTS ACCESSORY, AM/FM stereo push button radio w/cassette tape player, consists of radio, 111648C1, ref. nos. 2 thru 11 and instructions

1шт.

Radio completing kit, 143186C92 must also be furnished

1шт.

1

111643C1

RADIO

AM w/fader, Boman

1шт.

1

111645C1

RADIO

AM/FM monaural, Boman

1шт.

1

111647C1

RADIO

AM/FM w/8 track tape, Boman

1шт.

1

111648C1

RADIO

AM/FM stereo cassette push button, Boman

1шт.

1

146560C1

RADIO

AM/FM stereo push-button, Boman

1шт.

142919C1

NUT

large shaft

2шт.

For use w/Bowman radios

1шт.

142920C1

WASHER

shaft

2шт.

For use w/Bowman radios

1шт.

142921C1

NUT

small shaft

2шт.

For use w/Bowman radios

1шт.

2

117993C1

PACKAGE

KIT, radio control knobs, consists of (2) knob, chrome (NSS), knob, volume (NSS), knob, tuning (NSS)

1шт.

For use w/Bowman radios

1шт.

2

385531C1

KNOB

tone and balance

2шт.

For use w/Motorola radios

1шт.

3

117992C1

PLATE

trim

1шт.

For use w/Bowman radios

1шт.

4

117818C1

ANGLE

radio mounting

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

5

118376C1

PANEL

radio trim

1шт.

For use w/Bowman radios

1шт.

5

142955C1

PANEL

radio trim

1шт.

For use w/Motorola radios

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 PHC O/HDCR tap

1шт.

6

117995C1

PACKAGE

KIT, trim panel fastener, consists of 5 fasteners

3шт.

7

111402C2

PANEL

speaker trim, LH

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 PHC O/HDCR tap

1шт.

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

353-406

PLUG,Dome, .625" hole, Nylon

plastic 5/8 in. hole

1шт.

8

111403C1

PANEL

speaker trim, RH

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 PHC O/HDCR tap

1шт.

9

70727C3

SPEAKER

4 x 8 8 ohm

2шт.

9

142956C1

SPEAKER

4 x 8 8 ohm

2шт.

10

111237C1

ANTENNA

ASSY, complete

1шт.

11

118440C2

HARNESS

ASSY, radio and speaker, for 8 ohm speakers, includes fuse

1шт.

11

143177C1

HARNESS

ASSY, radio and speaker, for 4 ohm speakers, includes fuse

1шт.

445635

FUSE,3 Amp, Type 1AG

1AG 3, 3 amp

1шт.

118154C91

ACCESSORIES

PARTS ACCESSORY, headphone connecting jack, consists of cable (NSS), harness assy, ear phone jack ext. (NSS)

1шт.

118106C1

WASHER

cup trim

1шт.

INSTRUCTIONS (NSS)

1шт.

143186C92

RADIO

PARTS ACCESSORY, radio completing consists of

1шт.

118258C1

PANEL

2шт.

P/N 118258c1 Panel is a square Plate.

1шт.

28058R1

SCREW

8шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

8шт.

142995C1

CABLE

ASSY

1шт.

118070C1

CABLE

ASSY

1шт.

187626C2

ANGLE

1шт.

118120C1

SUPPORT

1шт.

24198R1

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

187625C2

PLATE

COVER

1шт.

365919R1

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL

1шт.

118441C1

LARGE PLATE

PLATE

1шт.

1252467C1

COVER

1шт.
