Запчасти Case IH 1440 (13-22) - SUPERSTRUCTURE, WIRING DIAGRAM, OPERATORS CAB (05) - SUPERSTRUCTURE

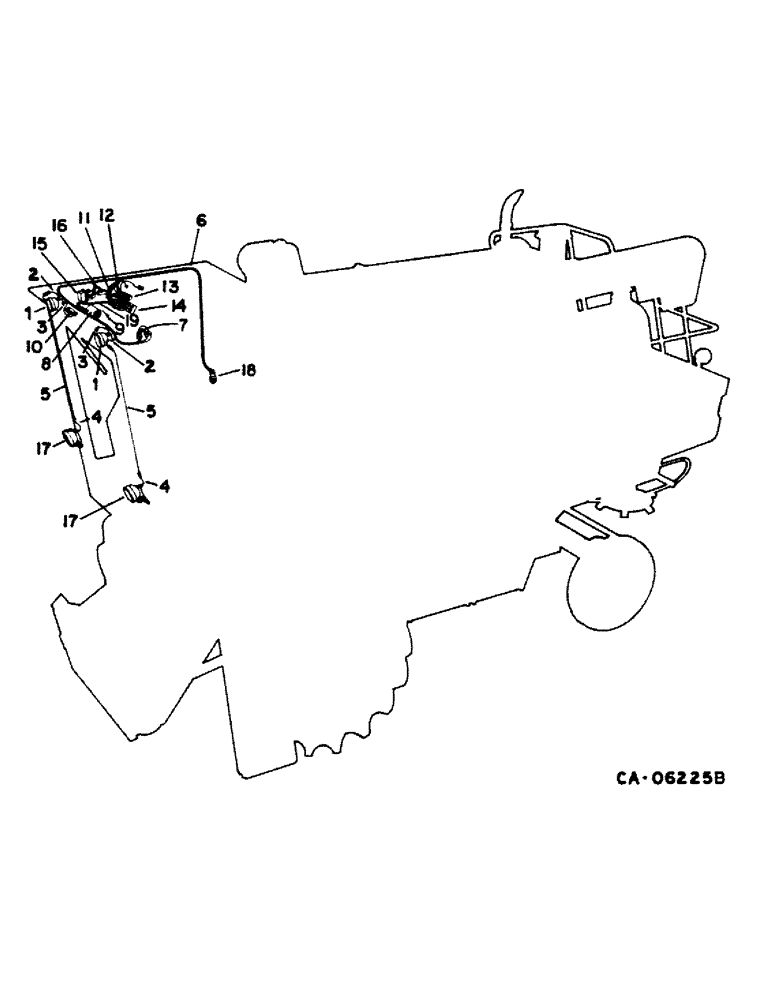

Схема запчастей Case IH 1440 - (13-22) - SUPERSTRUCTURE, WIRING DIAGRAM, OPERATORS CAB (05) - SUPERSTRUCTURE
2
17
1
12
19
18
16
4
1
13
6
4
17
3
10
5
2
9
5
11
15
8
3
14
7

Артикул

Название

Примечание

Количество

1

LAMP ASSY, night light, refer to group 8 under lights and mountings

2шт.

2

188393R1

CONNECTOR, ELEC

CONNECTOR

7шт.

3

198162C1

CABLE

ASSY, upper night light ground

2шт.

4

167412C1

CABLE

front lights, Serial Range: -50000

2шт.

5

196928C1

CABLE

CALBE ASSY, lower light bottom, Serial Range: -50000

2шт.

5

245690C1

CABLE

ASSY, front lower light

1шт.

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

, Start Serial: 50001

1шт.

6

196808C3

HARNESS

ASSY, cab main

1шт.

7

SWITCH, lower pressure, refer to this group under air conditioner evaporator

1шт.

8

BLOWER ASSY, cab, refer to this group under cab blower assy

1шт.

9

187671C1

CABLE

ASSY, blower ground

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

10

111397C2

LAMP

LIGHT ASSY, dome

1шт.

24416R1

SCREW,Cross Oval Hd, #6 x 3/8"

no. 6-20 x 3/8 O/HDCR tap

1шт.

117940C1

LENS

dome light

1шт.

33686

BULB

LAMP, 1141 bulb

1шт.

11

L70872

SWITCH

night light

1шт.

111282C1

KNOB

1шт.

162214R1

NUT

jam

1шт.

12

109268C2

SWITCH

operators cab

1шт.

111282C1

KNOB

1шт.

162214R1

NUT

jam

1шт.

13

109369C91

LIGHT ASSY.

LAMP ASSY, air conditioner low pressure indicator light, serviceable items are

1шт.

71652C1

LENS

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP NO. 1815

1шт.

14

168822C2

SWITCH

blower

1шт.

111282C1

KNOB

1шт.

162214R1

NUT

jam

1шт.

15

437882C1

RELAY

air conditioner low pressure indicator light

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

16

187526C1

BLOCK

ASSY, junction

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

17

LAMP ASSY, front, refer to group 8 under lights and mountings

1шт.

18

449797C1

CONTACT HOUSING,Male, 6 Pole

CONNECTOR, cab harness to combine

1шт.

19

83829C1

HARNESS

ASSY, blower motor, replaces 1255875C1

1шт.

25741R1

BOLT,Hex, 1" - 8 x 4", Gr 8

FUSE, 20 amp, for use w/1255878C91 blower assy

1шт.

19

142988C1

HARNESS

ASSY, blower motor, for use w/143166C91 and 109246C94 blower assy

1шт.
