Запчасти Case IH 1440 (13-16) - SUPERSTRUCTURE, OPERATOR CAB BOTTOM (05) - SUPERSTRUCTURE

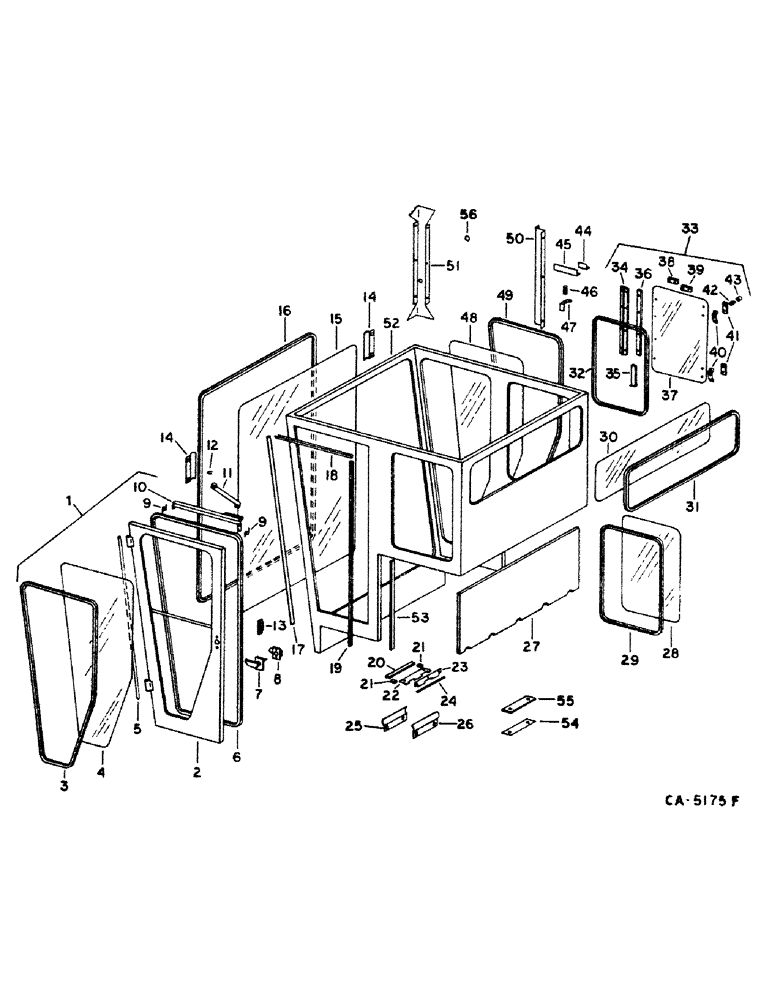

Схема запчастей Case IH 1440 - (13-16) - SUPERSTRUCTURE, OPERATOR CAB BOTTOM (05) - SUPERSTRUCTURE
52
37
56
36
23
53
9
9
50
25
47
8
46
4
7
33
13
32
31
20
2
28
16
18
49
14
21
3
35
19
55
51
6
24
44
54
38
17
5
42
10
30
12
15
14
21
45
48
27
40
29
34
1
22
43
41
39
26

Артикул

Название

Примечание

Количество

198212C96

CAB

ASSY, operator w/heater and air conditioner

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW, 3/8 x 1-1/2 h/hd flange

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

1

198521C92

DOOR ASSY.

DOOR ASSY, cab, includes ref. nos. 2 thru 10

1шт.

2

DOOR, not serviced separately order door assy 198521C92

1шт.

3

STRIP, door glass, use 130.5 in. from bulk stock marked 198131C3

1шт.

4

198184C1

GLASS

cab door

1шт.

5

STRIP, door front, use 53.5 in. from bulk stock marked 198522C2

1шт.

6

STRIP, door rear and bottom, use 118 in. from bulk stock marked 198522C2

1шт.

7

175566C1

HANDLE

ASSY, door outside lock

1шт.

28595R1

SCREW

ov hd c/r mach 10-32 x 3/4 zncst

1шт.

8

178748C2

LOCK

LATCH ASSY, door inside

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 P/HDCR tap

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

9

198844C1

SPRING

cab door check

2шт.

654859R1

SELF-TAP SCREW,1/4" - 20 x 1 1/2"

SCREW, 1/4 x 1-1/2 h/hd tap

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

10

198839C1

STOP

CHECK ASSY, cab door

1шт.

11

198845C1

ARM

ASSY, cab door check

1шт.

12

378066R1

SNAP RING,#X74, .616" Dia, E-Type

Ring, Retaining, #X74, .616" Dia, E-Type

1шт.

13

392801R3

LATCH

CATCH, door

1шт.

157391

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

1/4 x 1/2 znp O/HDCR mach

1шт.

138604

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, 1/4 ctsk-ext tooth lock

1шт.

14

196742C2

SUPPORT

windshield side

2шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

15

198242C1

GLASS

cab windshield

1шт.

16

STRIP, windshield glass, use 225 in. from bulk stock marked 198131C2

1шт.

17

STRIP, door opening front, use 54.6 in. from bulk stock marked 196707C1

1шт.

18

STRIP, door opening top, use 26.1 in. from bulk stock marked 196707C1

1шт.

19

STRIP, door opening rear, use 54 in. from bulk stock marked 196707C1

1шт.

20

STRIP, front door cleanout door long, use 2 pieces 10.7 in. from bulk stock marked 198530C1, Serial Range: -10000

1шт.

21

STRIP, front drop cleanout door end, use 2 pieces .75 in. from bulk stock marked 198530C1, Serial Range: -10000

1шт.

22

198142C1

DOOR

HINGE, clean-out door, Serial Range: -10000

1шт.

195974C1

FASTENER

1шт.

196548C1

SPRING

1шт.

190447H1

WASHER

1шт.

929734C1

RETAINER

1шт.

1301128C1

NUT

RECEPTACLE (Replaces 871811C1)

1шт.

196880C1

RIVET

1шт.

23

198165C1

HINGE

clean-out door, Serial Range: -10000

1шт.

163485C1

RIVET

.187 x .402 pop

1шт.

24

196881C1

PIN

clean-out door hinge, Serial Range: -10000

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

25

196742C2

SUPPORT

windshield moulding outer retainer, replaces 198174C1

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

26

196742C2

SUPPORT

ASSY, windshield moulding inner retainer, replaces 198173C1

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27

198290C1

INSULATOR

INSULATION, rear acoustical

1шт.

28

198244C1

GLASS

cab LH rear

1шт.

29

STRIP, LH rear glass, use 87 in. from bulk stock marked 198131C3

1шт.

30

198247C1

GLASS

cab rear

1шт.

31

STRIP, rear glass, use 123 in. from bulk stock marked 198131C3

1шт.

32

183539C1

STRIP

RH rear window weather, Serial Range: -10000

1шт.

32

109594C1

SEAL

STRIP, RH window weather, Start Serial: 10001

1шт.

33

183580C91

GLASS

WINDOW ASSY, RH rear, Serial Range: -10000

1шт.

33

1301231C91

WINDOW ASSY

RH rear, includes ref nos. 34, 36 thru 40, 42 & 43, Start Serial: 10001

1шт.

34

198195C1

HINGE

ASSY, RH rear window, Serial Range: -1500

1шт.

34

183582C1

HINGE

RH rear window, Serial Range: 1501-10000

1шт.

34

1301233C1

HINGE

RH rear window, Start Serial: 10001

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

, Start Serial: 10001

1шт.

35

STRIP, RH rear window, use 21.5 in. from bulk stock marked 198133C1, Serial Range: -1500

1шт.

36

196921C

STRIP, cab RH rear window, Serial Range: -1500

1шт.

36

183583C1

BAND

STRIP, cab RH rear window (Replaces 180583C1), Serial Range: 1501-10000

1шт.

36

1301234C1

STRIP

cab RH rear window, Start Serial: 10001

1шт.

196922C1

LOCK NUT

no. 10-24 UNC 2B

1шт.

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

37

198196C1

GLASS

RH rear window, Serial Range: -1500

1шт.

37

183581C1

GLASS

RH rear window, Serial Range: 1501-10000

1шт.

37

1301232C1

GLASS

RH rear window, Start Serial: 10001

1шт.

38

156185C91

HANDLE

ASSY, RH rear window, includes ref. no. 39, Serial Range: -1500

1шт.

38

183584C1

STRIP

RH rear window, Start Serial: 1501

1шт.

39

STRIP, RH rear window finger pull, use 2.25 in. from bulk stock marked 195591C1, Serial Range: -1500

1шт.

39

183585C1

STRIP

RH rear window

1шт.

40

170404C1

HANDLE

ASSY, cab RH rear window

2шт.

159972

SCREW,Cross Pan Hd, #10 - 24 x 1 3/4"

no. 10 x 1-3/4 P/HDCR mach

1шт.

196922C1

LOCK NUT

no. 10-24 UNC 2B

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

86511922

SCREW,Pan, #10 - 24 x 3/4"

no. 10 x 3/4 znp P/HDCR mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

41

196925C1

STRIP

window lock bolt, Serial Range: -1500

4шт.

41

183585C1

STRIP

RH rear window, Start Serial: 1501

1шт.

42

896274C1

BUSHING

window retainer cushion

5шт.

43

196926C1

END FITTING

GRIP, window lock bolt

4шт.

44

STRIP, RH rear window latch outer, use 1.5 in. from bulk stock marked 195594C2

1шт.

45

STRIP, RH rear window latch inner, use 3 in. from bulk stock marked 195594C2

1шт.

46

183615C1

SPRING

RH rear window latch

1шт.

47

195611C1

SUPPORT

RH rear window

1шт.

160578

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/2"

1/4 x 1-1/2 znp P/HDCR mach, rec

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT, 1/4 high torque

1шт.

48

198184C1

GLASS

cab RH front

1шт.

49

STRIP, RH front glass, use 130 in. from bulk stock marked 198131C3

1шт.

50

198293C1

PANEL

RH filler, 18.3 in. between mounting tabs

1шт.

50

1301548C1

PANEL

ASSY, RH filler, 16.4 in. between mounting tabs

1шт.

167156

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

no. 10NF x 3/8 P/HDCR tap

1шт.

51

198292C1

PANEL

hose cover LH

1шт.

167156

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

no. 10NF x 3/8 P/HDCR tap

1шт.

52

BOTTOM, cab, not serviced separately order cab assy 198212C96

1шт.

53

1301236C1

SEALING STRIP

STRIP, cab to deck, right console

2шт.

54

1301129C1

DOOR

clean-out, Start Serial: 10001

1шт.

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

thumb

1шт.

1301128C1

NUT

1шт.

55

STRIP, clean-out door seal, use 9.7 in. from bulk stock marked 1300025C1, Start Serial: 10001

1шт.

56

188003

PLUG,7/16"

7/16 button heater valve mounting screw hole

1шт.

56

192769

PLUG,3/4"

(button), Heater valve hose 3/4"

1шт.

929460C1

FLUID

ADHESIVE, rear acoustical

1шт.

1300409C91

STRIPPER PACKAGE

PACKAGE ASSY, cab adapter, required to install new cab combines, consists of, Serial Range: -10000

1шт.

1301218C1

PLATE

1шт.

1301334C1

SUPPORT

CLIP

1шт.

1301897C1

TUBE,4" Length

ADAPTER

1шт.

1301898C1

TUBE,4" Length

ADAPTER

1шт.

AND INSTRUCTION MANUAL

1шт.
