Запчасти Case IH 1440 (13-08) - SUPERSTRUCTURE, RIGHT CONSOLE, S/N 20001 AND ABOVE (05) - SUPERSTRUCTURE

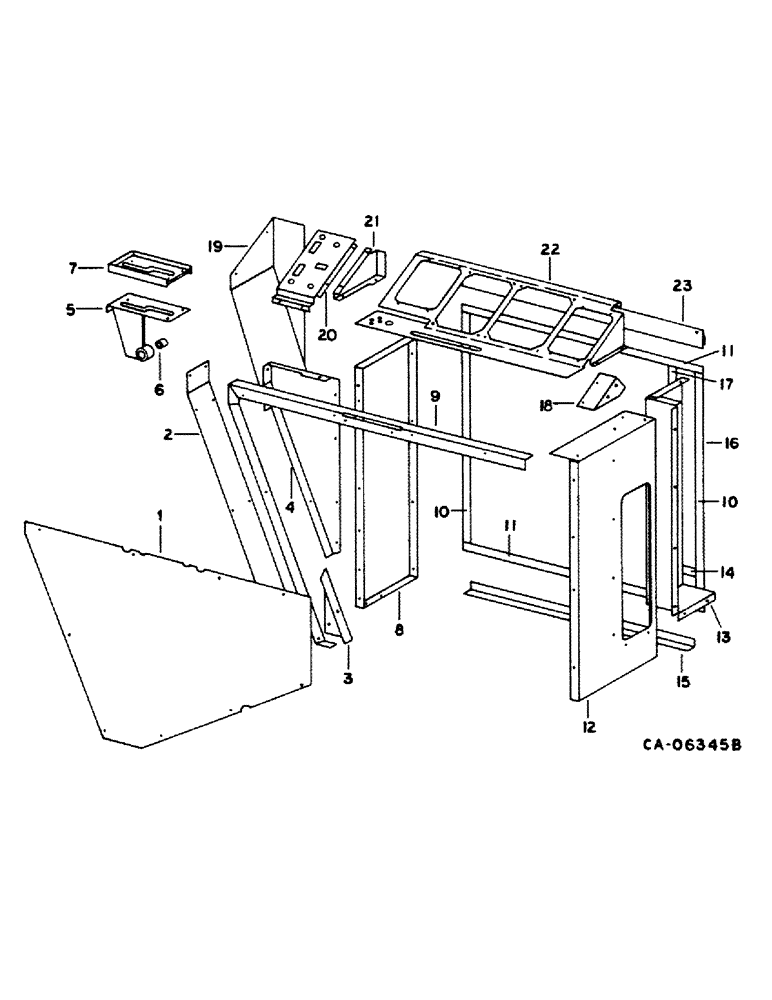

Схема запчастей Case IH 1440 - (13-08) - SUPERSTRUCTURE, RIGHT CONSOLE, S/N 20001 AND ABOVE (05) - SUPERSTRUCTURE
17
11
4
15
8
10
2
19
7
12
23
14
6
1
13
3
11
18
10
16
5
21
20
9
22

Артикул

Название

Примечание

Количество

1

193035C3

LARGE PLATE

PLATE, right console inner

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

1шт.

2

193034C1

SUPPORT

right console extension front

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

1шт.

3

195991C1

SUPPORT

RH console extension lower

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

195992C2

SUPPORT

RH console extension

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

193277C91

SUPPORT ASSY.

SUPPORT ASSY, console extension, includes ref. no. 6

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 P/HDCR tap

1шт.

6

165704C1

BUSHING

console extension support

1шт.

7

198988C1

COVER

hydrostatic drive console

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 PHC O/HDC tap

1шт.

8

193064C8

SUPPORT

right console front

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

193031C3

SUPPORT

ASSY, right console front

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1254276C1

PUSH-ON NUT

pal fastener

1шт.

10

STRIP, console cover, use 26.7 in. from bulk stock marked 195917C2

2шт.

11

STRIP, console cover, use 27.2 in. from bulk stock marked 195917C2

2шт.

12

1301214C1

SUPPORT

right console rear

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

1301215C4

PLATE ASSY.

SUPPORT, right console electrical

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

14

STRIP, console cover, use 3.0 in. from bulk stock marked 195917C2

1шт.

15

193033C2

ANGLE

right console outer lower

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

16

1301218C1

PLATE

right console outer

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

17

STRIP, console cover, use 25.4 in. from bulk stock marked 195917C2

1шт.

18

1301217C1

ANGLE

fuse holder mounting

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

19

1301213C1

SUPPORT

right console front extension lower

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

1шт.

20

1301212C3

SUPPORT

right console front top

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

1шт.

21

1301211C1

SUPPORT

right console top front

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

22

1301210C4

SUPPORT

right console top

1шт.

1329861C1

PLATE

throttle control, used w/support, 1301210C4 only

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

23

1301334C1

SUPPORT

RH outer cover

1шт.

Выбрано товаров: 57
