Запчасти Case IH 1440 (13-01) - SUPERSTRUCTURE, OPERATORS PLATFORM (05) - SUPERSTRUCTURE

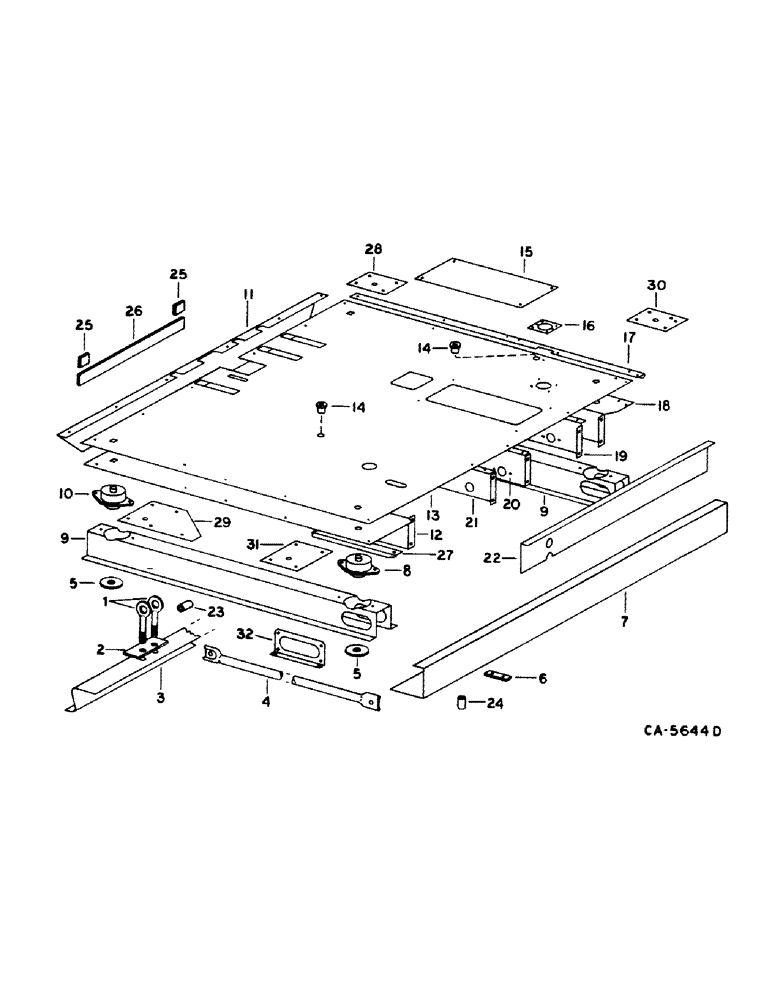

Схема запчастей Case IH 1440 - (13-01) - SUPERSTRUCTURE, OPERATORS PLATFORM (05) - SUPERSTRUCTURE
28
18
25
16
21
3
9
5
1
11
23
30
27
15
29
12
4
14
2
8
24
7
5
25
26
10
32
20
19
17
22
31
14
9
6
13

Артикул

Название

Примечание

Количество

1

165648C2

BOLT,3/4" - 10 x 4 1/2"

platform front leveling eye

4шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

2

196592C2

BAR

platform front leveling

2шт.

3

193021C6

SUPPORT

operators platform front

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

4

193038C1

ROD

operator platform extension

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

5

196591C1

WASHER

isolation mount

4шт.

6

195715C1

BAR

rear mounting channel, .5 in.

2шт.

6

193428C1

BAR

rear mounting channel, .625 in.

2шт.

7

193022C2

SUPPORT

operators platform rear

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

8

196950C2

MOUNTING PARTS

INSULATOR, rear vibration

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT, 3/4 x 4-1/2 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

280954

NUT,3/4"-10, G5

1шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

9

195507C6

SUPPORT

operator platform side

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

10

117722C4

INSULATOR

front vibration

2шт.

10

117722C4GV

INSULATOR

front vibration

2шт.

1317014C1

CARRIAGE BOLT,Short Sq Nk, 3/4" - 10 x 5", Type 5

BOLT, 3/4 x 5 crg type 5

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

22266R1

WASHER

1.156 x 1.750 x .027

1шт.

478258R1

WASHER

1.156 x 1.750 x .105

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

11

195517C4

SUPPORT

operators platform front

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

187716C1

SUPPORT ASSY.

SUPPORT ASSY, operators platform LH, Serial Range: -5948

1шт.

12

195520C3

SUPPORT

operators platform LH, Start Serial: 5949

1шт.

13

195558C8

PLATE

operators

1шт.

187797C1

BOLT,Hex Serr Flg, 1/4" - 20 x 1"

1/4 x 1 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

14

195800C1

GROMMET

plug

2шт.

14

198820C1

GROMMET

PLUG

1шт.

15

193029C2

PLATE

brake access rear

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4 x 1/2 h/hd tap

1шт.

16

187533C1

BAR

platform wiring hole

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

17

196969C4

SUPPORT

platform stiffener right side

1шт.

18

187717C1

SUPPORT ASSY.

SUPPORT ASSY, operator platform RH, Serial Range: -5948

1шт.

18

195518C6

SUPPORT

operators platform RH, Start Serial: 5949

1шт.

19

195519C4

SUPPORT

operators platform right center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

20

195521C3

SUPPORT

operators platform center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

21

195557C7

SUPPORT

operator platform left center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

22

195516C2

SUPPORT

operators platform rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

23

591070R1

SPACER,3/4" Pipe x 1 7/16"

front leveling eyebolt

2шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

3/4 x 4-1/4 type 5

1шт.

24

(Not used in this application)

1шт.

25

187885C1

SEALING STRIP

STRIP, cab sill to front support seal, use 2.0 in.

1шт.

26

187885C1

SEALING STRIP

STRIP, cab sill to front support seal, 26.1 in.

1шт.

27

183680C1

ANGLE

platform stiffener LH, Start Serial: 5949

1шт.

28

183668C2

PLATE

platform right front, Start Serial: 5949

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

29

183669C2

PLATE

platform left front, Start Serial: 5949

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

30

183678C1

PLATE

platform right rear, Start Serial: 5949

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

31

183679C1

PLATE

platform left rear, Start Serial: 5949

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

32

(Not used this application)

1шт.

Выбрано товаров: 89
