Запчасти Case IH 1440 (15-16) - WHEEL AND TRACTION, AXLE STA ROD, S/N 50025 AND ABOVE Wheels & Traction

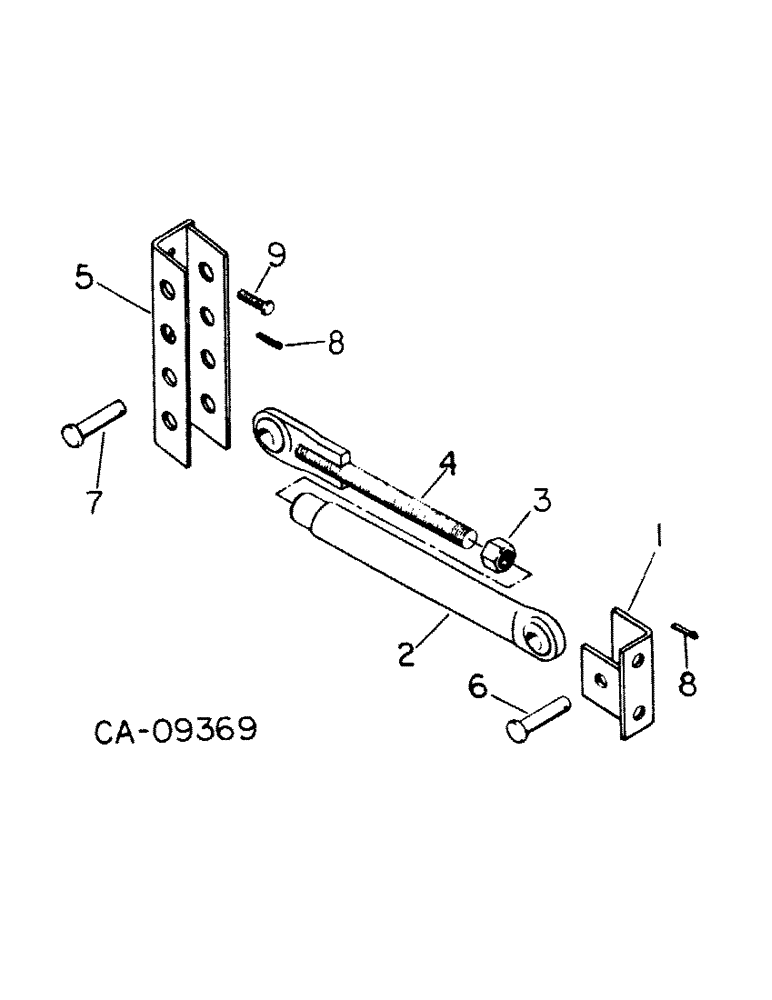

Схема запчастей Case IH 1440 - (15-16) - WHEEL AND TRACTION, AXLE STA ROD, S/N 50025 AND ABOVE Wheels & Traction
4
8
6
7
1
8
9
2
3
5

Артикул

Название

Примечание

Количество

1

183494C1

SUPPORT ASSY.

SUPPORT ASSY, rod rear

2шт.

2

181444C1

TIE-ROD,1" - 8

ROD ASSY, axle rear eye

2шт.

3

9849633

NUT,1"-8, G5

2шт.

4

181442C2

BOLT

axle front eye

2шт.

5

183491C1

SUPPORT ASSY.

SUPPORT ASSY, rod front, 1440 & 1460

2шт.

5

183151C1

SUPPORT

ASSY, rod front, 1480

2шт.

6

23313R1

HEADED PIN,7/8" x 3 1/2"

PIN, HEADED, 7/8" x 3 1/2"

1шт.

7

Q964

HEADED PIN,7/8" x 2.734"

PIN, 7/8 x 3 pln hd type 1

1шт.

8

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

9

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

6шт.

Выбрано товаров: 10
