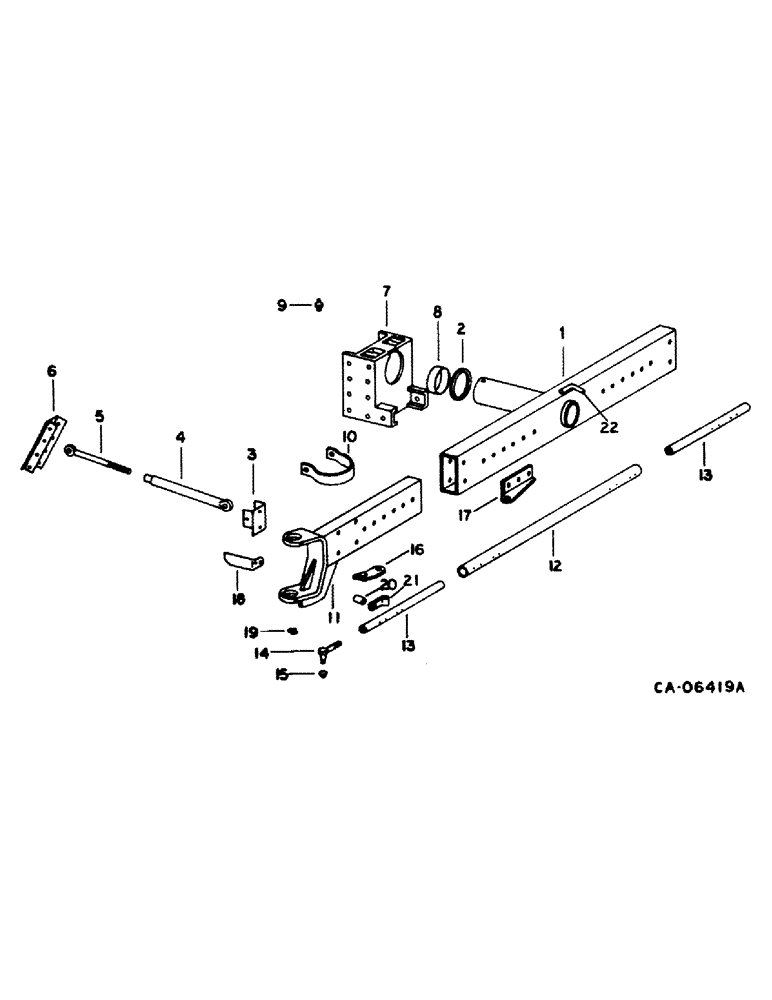

Запчасти Case IH 1440 (15-11) - WHEEL AND TRACTION, POWER GUIDE WHEEL AXLE AND CONNECTIONS, S/N 50024 AND BELOW Wheels & Traction

1

1302522C2

STEERING AXLE

AXLE ASSY, steering center

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT, 3/4 x 4-1/2 type 5

1шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 type 5

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

3/4 x 5-1/4 type 5

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 PHC flange lock type 8

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

steering axle pivot

4шт.

3

183494C1

SUPPORT ASSY.

SUPPORT ASSY, rod rear

2шт.

4

181444C1

TIE-ROD,1" - 8

ROD ASSY, axle rear eye

2шт.

23313R1

HEADED PIN,7/8" x 3 1/2"

PIN, HEADED, 7/8" x 3 1/2"

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

9849633

NUT,1"-8, G5

1шт.

5

181442C2

BOLT

axle front eye

2шт.

Q964

HEADED PIN,7/8" x 2.734"

PIN, 7/8 x 3 pln hd type 1

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

6

183491C1

SUPPORT ASSY.

SUPPORT ASSY, rod front

2шт.

7

186599C92

SUPPORT ASSY.

SUPPORT ASSY, axle pivot, includes ref. no. 8

1шт.

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

1шт.

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

3/4 x 5-1/2 PHC type 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 PHC flange lock type 8

1шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

8

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

pivot support

2шт.

9

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str lub, pivot support

2шт.

10

1302625C1

CHANNEL

combine tow

1шт.

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

1шт.

11

1310547C1

SUPPORT ASSY.

SUPPORT ASSY, extension

2шт.

12

1310568C1

TUBE

tie rod outer

1шт.

142680H

BOLT (SPREADER),Hex, 3/8"-16 x 2 1/2", G8

BOLT, Hex, 3/8"-16 x 2 1/2", G8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

13

1310569C1

ROD

TUBE, tie rod inner

2шт.

14

1310570C1

END

tie rod

2шт.

NLS

NO LONGER SERVICED

5/8-NF slt type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

25548R1

WASHER

.812 x 1.500 x .219 PHC hdn

1шт.

1310571C1

JAM NUT

tie rod end

1шт.

15

1310572C1

RUBBER SEAL

tie rod end

2шт.

16

1310573C1

SUPPORT ASSY.

SUPPORT, steering mount plate

1шт.

20105R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

5/8 x 2-3/4 type 8

1шт.

9412231

NUT

5/8 PHC P/T lock type 8

1шт.

17

1310574C1

SUPPORT ASSY.

SUPPORT, steering bracket

1шт.

18

1310567C1

BLADE

SCRAPER, mud LH

1шт.

18

1310557C1

SPACER

SCRAPER, mud RH

1шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

4шт.

20

27633R1

SPACER,3/8" X-Strng Pipe x 1 1/4"

3/8 x 1.250 pipe

2шт.

21

28149R1

CLAMP,1 1/4", Insul, 1/2" Bolt

1.250 dia znp coated

2шт.

25235R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

5/16 x 2-1/2 PHC type 8

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9413977

NUT

5/16 PHC P/T lock type 8

1шт.

22

182922C1

ROD

shield support, pin

1шт.
