(15-03) - WHEEL AND TRACTION, DRIVE SWITCH AND HARNESS, S/N 50025 AND ABOVE

Запчасти Case IH 1440 (15-03) - WHEEL AND TRACTION, DRIVE SWITCH AND HARNESS, S/N 50025 AND ABOVE Wheels & Traction

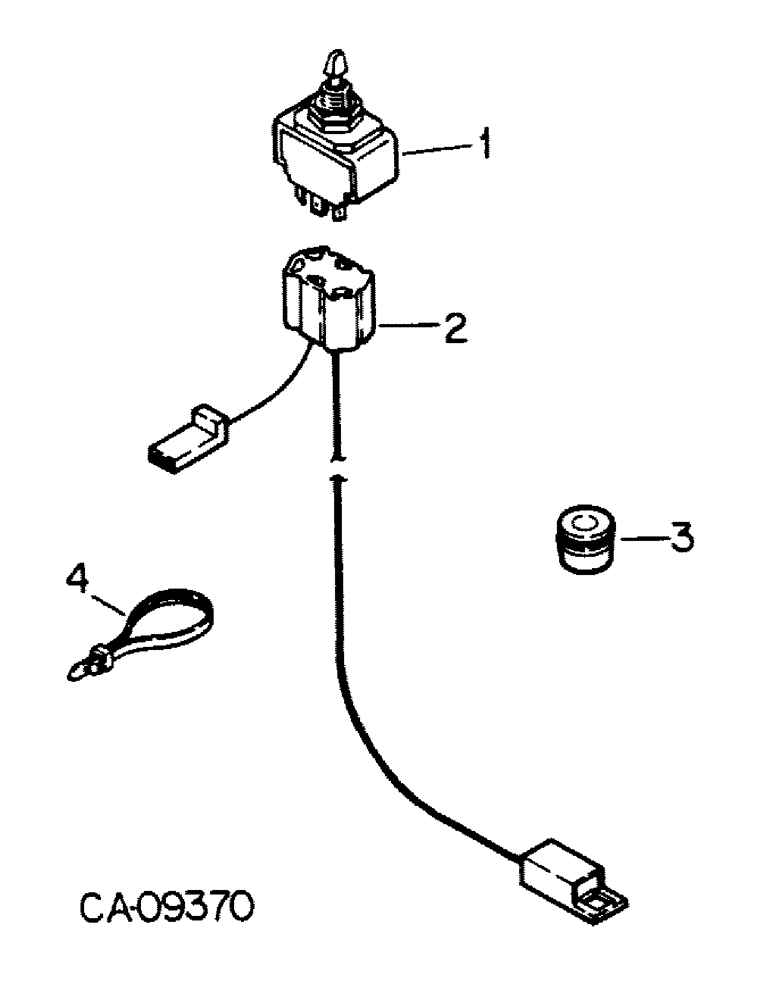

Схема запчастей Case IH 1440 - (15-03) - WHEEL AND TRACTION, DRIVE SWITCH AND HARNESS, S/N 50025 AND ABOVE Wheels & Traction
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1301521C1

SWITCH

ASSY, power guide drive

1шт.

2

1301523C1

HARNESS

ASSY, power guide drive

1шт.

3

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

1/4 ID

1шт.

4

702093C1

CABLE TIE

STRAP, tie

12шт.
