Запчасти Case IH 1440 (14-08) - SUSPENSION, STEERING AXLE SHIELD, OSCILLATING, S/N 20001 & ABOVE Suspension

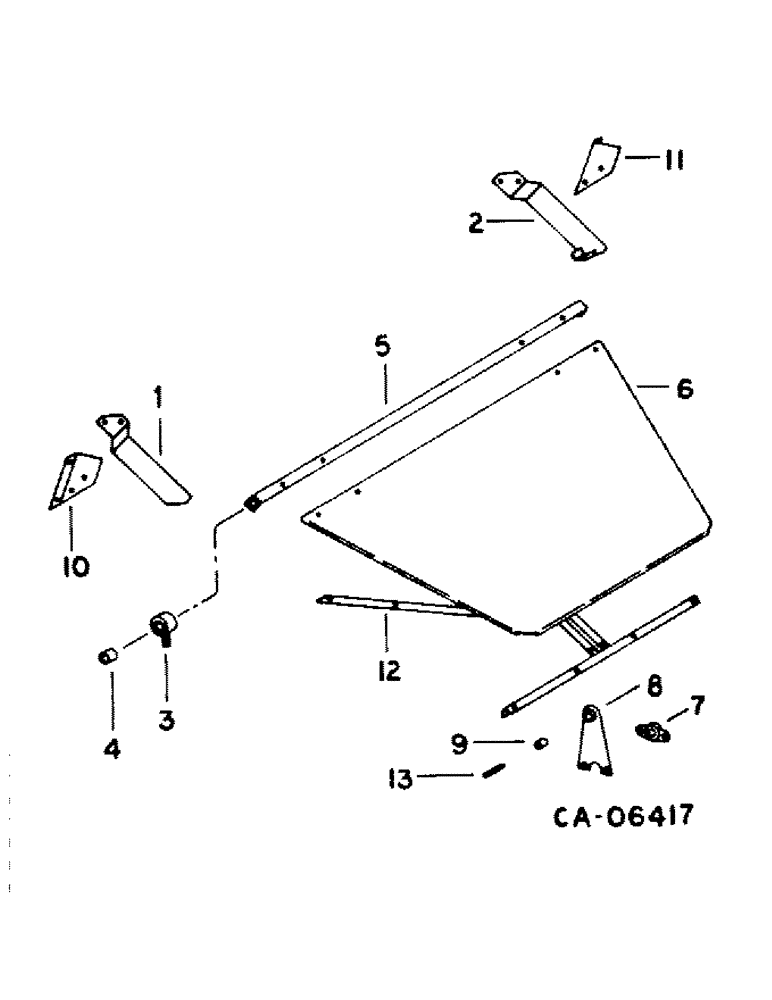

Схема запчастей Case IH 1440 - (14-08) - SUSPENSION, STEERING AXLE SHIELD, OSCILLATING, S/N 20001 & ABOVE Suspension
3
5
8
10
2
11
7
13
6
1
9
12
4

Артикул

Название

Примечание

Количество

1300097C92

STRIPPER PACKAGE

PACKAGE, oscillating steering axle shield, parts accessory, includes ref nos. 1 thru 13

1шт.

1

1302779C5

BRACKET

ARM ASSY, axle shield LH (Replaces 1302778C3)

1шт.

item #1 1302778c3 subs to which is the rh

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

2

1302778C5

BRACKET

ARM ASSY, axle shield RH(Replaces 1302779C3)

1шт.

item #2 1302779c3 subs to which is the lh

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

3

181342C91

END ASSY.

END ASSY, axle shield, includes ref. no. 4

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

564103R91

COMPOSITE RING

BUSHING, end assy

2шт.

5

1302765C1

SUPPORT ASSY.

SUPPORT ASSY, steering axle shield

1шт.

6

1302762C1

SHIELD

axle

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

A63366

SPHERICAL BEARING,19mm ID

BEARING, shield pivot

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

1302578C91

SUPPORT ASSY.

SUPPORT ASSY, shield pivot, includes ref. no. 9

1шт.

9

289588R1

BUSHING

shield pivot support

1шт.

10

1302044C2

SUPPORT

ASSY, hood extension LH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

11

1302045C2

SUPPORT

ASSY, hood extension RH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

1302550C1

SUPPORT ASSY.

SUPPORT ASSY, axle shield

1шт.

13

1302776C1

BUSHING,13.46mm ID x 19.05mm OD x 30.23mm L

pivot link upper support

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 PHC P/T flange type 8

1шт.

Выбрано товаров: 35
