Запчасти Case IH 1440 (14-01) - SUSPENSION, STEERING AXLE, SUPPORT AND TIE ROD, FIXED Suspension

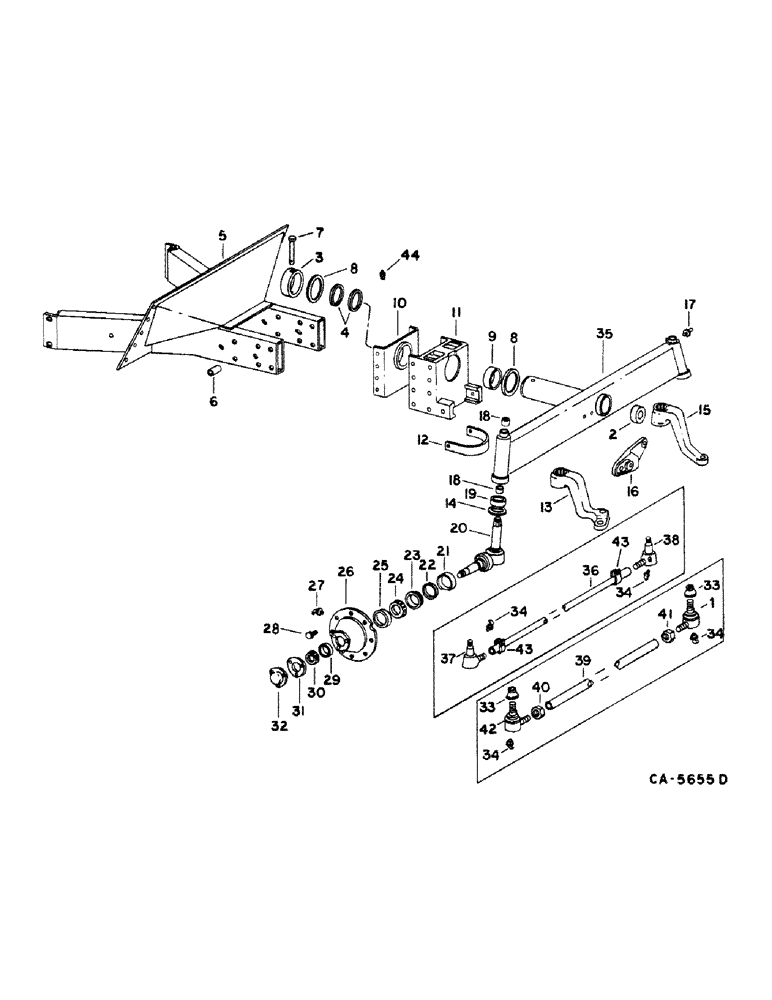

Схема запчастей Case IH 1440 - (14-01) - SUSPENSION, STEERING AXLE, SUPPORT AND TIE ROD, FIXED Suspension
26
27
20
37
30
33
43
24
32
43
33
18
8
11
3
6
14
18
8
44
41
13
38
10
2
34
23
9
4
5
19
34
12
15
29
34
42
31
35
1
25
17
28
36
22
39
40
7
21
34
16

Артикул

Название

Примечание

Количество

1

379551R92

END ASSY.

END ASSY, w/nut and seal RH, includes ref no. 33

1шт.

NLS

NO LONGER SERVICED

5/8-NF slt type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

2

167955C2

SEAL

steering hoses

1шт.

3

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

steering axle pivot tube, Start Serial: 5501

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

pivot, Serial Range: -5500

1шт.

4

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING, pivot, Start Serial: 5501

1шт.

5

194024C1

SUPPORT

ASSY, steering axle, Serial Range: -10727

1шт.

5

1308816C2

SUPPORT

ASSY, steering axle, Start Serial: 10728

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 type 8

1шт.

380916R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

3/4 x 1-1/2 type 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 znd flange lock

4шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

6

177748C1

SPACER

steering axle support 13/16 x 1-1/4 x 2-13/16

1шт.

7

177762C1

PIN

steering axle pivot tube, Serial Range: -5500

1шт.

7

28147R1

HEADED PIN,3/4" x 5 1/2"

PIN, 3/4 x 5-1/2 std. hd., Start Serial: 5501

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

8

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

steering axle pivot tube

3шт.

9

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

axle pivot

2шт.

10

177781C92

SUPPORT ASSY.

SUPPORT ASSY, steering axle front pivot, includes ref. no. 4, Serial Range: -5500

1шт.

10

182792C92

SUPPORT ASSY.

SUPPORT ASSY, steering axle front pivot, includes ref. no. 4, Start Serial: 5501

1шт.

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 PHC flange lock type 8

1шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

11

177749C92

SUPPORT ASSY.

SUPPORT ASSY, steering axle pivot, includes ref. no. 9

1шт.

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 znd flange lock

1шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

12

196084C2

CHANNEL

combine tow

1шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 PHC flange lock type 8

1шт.

13

193911C2

LEVER

steering knuckle LH

1шт.

14

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

15

193912C2

LEVER

ARM, steering knuckle RH

1шт.

16

193917C1

ANCHOR

steering cylinder

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 PHC flange lock type 8

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

3/4 x 5-1/4 type 8

1шт.

17

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub

2шт.

19

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

steering knuckle thrust

2шт.

20

196334C2

KNUCKLE

ASSY, steering, includes ref. nos. 21 and 22

2шт.

All combines with S/N 40192 and below. Combines with S/N 40193 and above except (A) Grain combines equipped with 11.00-16, 12.4-16, 18.4-16 and 11.2-24 steering tires (B) All corn combines.

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF slt type 5

1шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-NF jam type 5

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

1шт.

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

.89 x 1.88 x 5 ga hard

1шт.

22827R1

WASHER

1.406 x 2.750 x .042

1шт.

20

1315374C91

STEERING KNUCKLE

KNUCKLE ASSY, steering, includes ref. nos. 21 and 22

2шт.

Grain combines with S/N 40193 and above when equipped with 11.00-16, 12.4-16, 18.4-16.1, and 11.2-24 steering tires. All corn combines with S/N 40193 and above.

1шт.

934797R1

COTTER PIN,M6.3 x 63

PIN, 6.3 x 60mm pln cot.

1шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-NF jam type 5

1шт.

22827R1

WASHER

1.406 x 2.750 x .042

1шт.

1259683C1

NUT

M30 x 1.5 pln slt

1шт.

21

48701D

SHIELD

steering knuckle dust

2шт.

All combines with S/N 40192 and below. Combines with S/N 40193 and above except (A) Grain combines equipped with 11.00-16, 12.4-16, 18.4-16 and 11.2-24 steering tires (B) All corn combines.

1шт.

21

1259522C1

SHIELD

steering knuckle dust

2шт.

Grain combines with S/N 40193 and above when equipped with 11.00-16, 12.4-16, 18.4-16.1, and 11.2-24 steering tires. All corn combines with S/N 40193 and above.

1шт.

22

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

steering knuckle oil

2шт.

All combines with S/N 40192 and below. Combines with S/N 40193 and above except (A) Grain combines equipped with 11.00-16, 12.4-16, 18.4-16 and 11.2-24 steering tires (B) All corn combines.

1шт.

22

491641C1

SEAL

steering knucke oil, replaces 1259523C1

2шт.

Grain combines with S/N 40193 and above when equipped with 11.00-16, 12.4-16, 18.4-16.1, and 11.2-24 steering tires. All corn combines with S/N 40193 and above.

1шт.

23

48703D

RETAINER

steering hub seal

2шт.

All combines with S/N 40192 and below. Combines with S/N 40193 and above except (A) Grain combines equipped with 11.00-16, 12.4-16, 18.4-16 and 11.2-24 steering tires (B) All corn combines.

1шт.

23

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

RETAINER, steering hub seal

2шт.

Grain combines with S/N 40193 and above when equipped with 11.00-16, 12.4-16, 18.4-16.1, and 11.2-24 steering tires. All corn combines with S/N 40193 and above.

1шт.

24

G15215

ROLLER BEARING

BEARING ASSY, steering hub inner cone

2шт.

All combines with S/N 40192 and below. Combines with S/N 40193 and above except (A) Grain combines equipped with 11.00-16, 12.4-16, 18.4-16 and 11.2-24 steering tires (B) All corn combines.

1шт.

24

ST753B

BEARING ASSY,66.67mm ID x 22mm W

steering hub inner cone

2шт.

Grain combines with S/N 40193 and above when equipped with 11.00-16, 12.4-16, 18.4-16.1, and 11.2-24 steering tires. All corn combines with S/N 40193 and above.

1шт.

25

619387R1

BEARING CUP

BEARING, steering hub inner cup

2шт.

All combines with S/N 40192 and below. Combines with S/N 40193 and above except (A) Grain combines equipped with 11.00-16, 12.4-16, 18.4-16 and 11.2-24 steering tires (B) All corn combines.

1шт.

25

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

steering hub inner cup

2шт.

Grain combines with S/N 40193 and above when equipped with 11.00-16, 12.4-16, 18.4-16.1, and 11.2-24 steering tires. All corn combines with S/N 40193 and above.

1шт.

26

1323559C1

HUB

ASSY, steering, replaces 391824R11, includes ref. nos. 23, 25 and 29

2шт.

All combines with S/N 40192 and below. Combines with S/N 40193 and above except (A) Grain combines equipped with 11.00-16, 12.4-16, 18.4-16 and 11.2-24 steering tires (B) All corn combines.

1шт.

26

1259528C91

WHEEL

HUB ASSY, steering, includes ref nos. 23, 25 and 29

2шт.

Grain combines with S/N 40193 and above when equipped with 11.00-16, 12.4-16, 18.4-16.1, and 11.2-24 steering tires. All corn combines with S/N 40193 and above.

1шт.

27

19700R91

FITTING

3/16 45 deg drive type lub

2шт.

28

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

guide wheel hub

16шт.

29

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Steering hub outer

2шт.

All combines with S/N 40192 and below. Combines with S/N 40193 and above except (A) Grain combines equipped with 11.00-16, 12.4-16, 18.4-16 and 11.2-24 steering tires (B) All corn combines.

1шт.

29

130503H

BEARING CUP

BEARING, steering hub outer cup

2шт.

Grain combines with S/N 40193 and above when equipped with 11.00-16, 12.4-16, 18.4-16.1, and 11.2-24 steering tires. All corn combines with S/N 40193 and above.

1шт.

30

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, steering hub outer cone

2шт.

All combines with S/N 40192 and below. Combines with S/N 40193 and above except (A) Grain combines equipped with 11.00-16, 12.4-16, 18.4-16 and 11.2-24 steering tires (B) All corn combines.

1шт.

30

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

BEARING ASSY, steering hub outer cone

2шт.

Grain combines with S/N 40193 and above when equipped with 11.00-16, 12.4-16, 18.4-16.1, and 11.2-24 steering tires. All corn combines with S/N 40193 and above.

1шт.

31

369860R1

GASKET,0.79mm Thk

steering hub cap

2шт.

32

369859R1

CAP

steering hub

2шт.

All combines with S/N 40192 and below. Combines with S/N 40193 and above except (A) Grain combines equipped with 11.00-16, 12.4-16, 18.4-16 and 11.2-24 steering tires (B) All corn combines.

1шт.

32

189425C1

HUB CAP

CAP, steering hub

2шт.

Grain combines with S/N 40193 and above when equipped with 11.00-16, 12.4-16, 18.4-16.1, and 11.2-24 steering tires. All corn combines with S/N 40193 and above.

1шт.

30181R1

WASHER,M30 x 56.5 x 5, HT

32.8 x 56 x 5 mm PHC

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

382562R1

SEAL

tie rod stud, for use w/177774C91 tie rod

2шт.

34

16964R91

FITTING

1/4-28 90 deg lub, Columbus tie rods only

2шт.

34

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , All except Columbus tie rods 1/8"-27 x .66 lg

2шт.

35

195339C2

CENTER AXLE

AXLE ASSY, includes ref. no. 18, Serial Range: -5500

1шт.

35

182798C2

AXLE

ASSY, for corn, includes ref. no. 18, Serial Range: 5501-10000

1шт.

35

182798C2

AXLE

ASSY, for grain, includes ref. no. 18, Serial Range: 5501-20000

1шт.

35

1302521C2

AXLE

ASSY, for corn, includes ref no. 18, Start Serial: 10001

1шт.

35

1302521C2

AXLE

ASSY, for grain, includes ref no. 18, Start Serial: 20001

1шт.

36

177772C91

ROD ASSY.

ROD ASSY, axle tie, includes re. nos 37, 38 & 43, optional w/177774C91 tie rod

1шт.

37

180202C1

END ASSY.

END ASSY, tie rod LH

1шт.

NLS

NO LONGER SERVICED

5/8-NF slt type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

38

180203C1

END ASSY.

END ASSY, tie rod RH

1шт.

NLS

NO LONGER SERVICED

5/8-NF slt type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

39

177774C91

ROD

ASSY, axle tie, includes ref nos. 1, 40, 41 & 42, optional w/177772C91 tie rod

1шт.

40

374061R1

JAM NUT

1-16 tie rod LH

1шт.

41

374062R1

JAM NUT

NUT, 1-16 tie rod RH

1шт.

42

180201C91

END

ASSY, w/nut and seal LH, includes ref. no. 33

1шт.

NLS

NO LONGER SERVICED

5/8-NF slt type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

43

1300176C1

CLAMP,28.5mm ID

ASSY, tie rod

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 PHC p/t lock type 5

1шт.

44

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 hole 45 deg lub

2шт.

1323078C91

PACKAGE

steering knuckle and hub, consists of

2шт.

All grain combines with S/N 40192 and below when eqipped with 11.00-16, 12.4-16, 18.4-16.1 and 11.2-24 steering tires. All corn combines with S/N 40192 and below, refers to group 15 under main and steering wheel rims and disc for wheels that must be ordered for use withthis package

1шт.

1315374C91

STEERING KNUCKLE

KNUCKLE ASSY, steering

1шт.

934797R1

COTTER PIN,M6.3 x 63

PIN, 6.3 x 60mm pln cot.

1шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-NF jam type 5

1шт.

22827R1

WASHER

1.406 x 2.750 x .042

1шт.

1259522C1

SHIELD

dust

1шт.

491641C1

SEAL

hub

1шт.

1259683C1

NUT

M30 x 1.5 pln slt

1шт.

ST753B

BEARING ASSY,66.67mm ID x 22mm W

BEARING, inner cone, 2-5/8 inch ID

1шт.

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

BEARING, outer cone

1шт.

1259528C91

WHEEL

HUB ASSY, steering

1шт.

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

inner cup

1шт.

130503H

BEARING CUP

BEARING, outer cup

1шт.

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

WASHER, hub seal

1шт.

19700R1

FITTING

lube

1шт.

189425C1

HUB CAP

CAP, steering wheel hub

1шт.

30181R1

WASHER,M30 x 56.5 x 5, HT

32.8 x 56 x 5 mm

1шт.

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

9/16 x 1-1/2 h/hd flange

1шт.

INSTRUCTIONS (NSS)

1шт.

Выбрано товаров: 140
