(20-16[A]) - SEPARATOR, STRAW SPREADER PULLEY SHIELD AND BELT GUIDE

Запчасти Case IH 1440 (20-16[A]) - SEPARATOR, STRAW SPREADER PULLEY SHIELD AND BELT GUIDE Separation

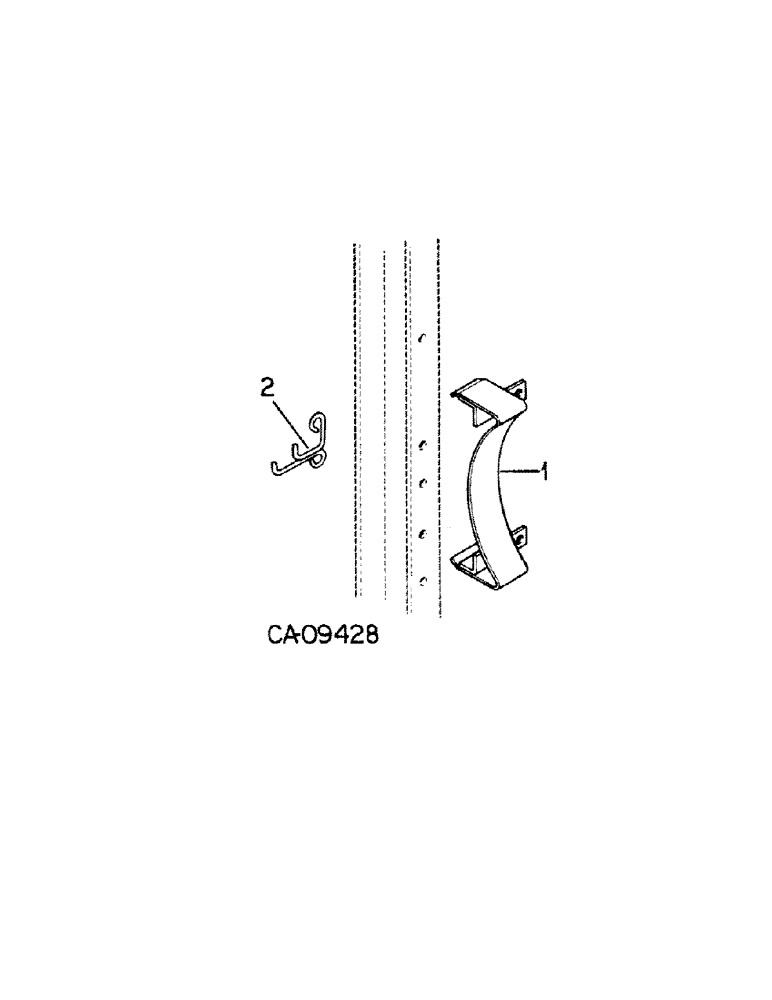

Схема запчастей Case IH 1440 - (20-16[A]) - SEPARATOR, STRAW SPREADER PULLEY SHIELD AND BELT GUIDE Separation
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1324423C1

GUARD

SHIELD ASSY, straw spreader pulley

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

2

1324419C1

GUIDE

ASSY, belt

1шт.

Выбрано товаров: 5
