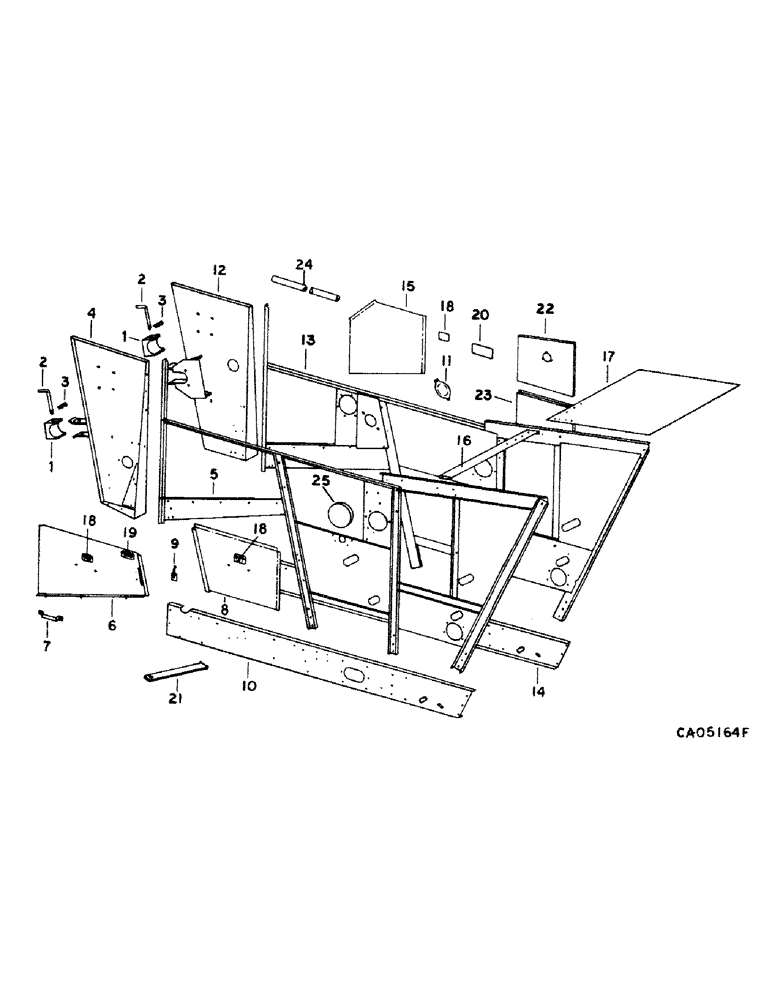

Запчасти Case IH 1440 (20-01) - SEPARATOR, SEPARATOR SIDES Separation

1

193834C1

BLOCK

feeder pivot

2шт.

2

192533C2

ROD

feeder pivot block

2шт.

3

486830R1

COTTER PIN

PIN, quick attachable cotter, replaces 520175R1

2шт.

4

193844C1

SUPPORT

POST ASSY, LH front, Serial Range: -1500

1шт.

4

185124C6

PLATE

POST ASSY, LH front, Start Serial: 1501

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 type 8

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 type 8

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 PHC flange lock type 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC hdn

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 x 1.25 x .120 gage znd

1шт.

5

191817C4

FRAME

SIDE ASSY, separator LH, Serial Range: -20714

1шт.

5

185256C2

SIDE ASSY.

SIDE ASSY, separator LH, includes ref. no. 20, Start Serial: 20715

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 type 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock type 8

1шт.

6

186178C91

DOOR

ASSY, separator LH front, includes ref. nos. 18 and 19

1шт.

7

160638C1

HANDLE

separator side and front door

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

8

186188C91

DOOR

separator LH side, includes ref. no. 18

1шт.

9

167800C1

CLIP

door retainer

15шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

10

192580C5

SUPPORT ASSY.

SUPPORT, separator LH side main, Serial Range: -10727

1шт.

10

1308817C2

SUPPORT ASSY.

SUPPORT, separator LH side main, Start Serial: 10728

1шт.

11

188315C1

DOOR

separator side RH, Start Serial: 1501

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 CAD P/T lock type 5

1шт.

935735R1

WING NUT

1/4 wing

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

12

193845C1

SUPPORT ASSY.

POST ASSY, RH front, Serial Range: -1500

1шт.

12

185125C2

PANEL

POST ASSY, RH front, Start Serial: 1501

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 type 8

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 type 8

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 PHC flange lock type 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC hdn

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

.641 x 1.25 x .120 gage znd

1шт.

13

185460C94

SIDE ASSY.

SIDE ASSY, separator RH, Serial Range: -20714

1шт.

13

1300267C91

PANEL

SIDE ASSY, separator RH, includes ref. no. 20, Start Serial: 20715

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 type 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock type 8

1шт.

432366

HOLE PLUG BUTTON,1 3/8"

PLUG, 1-3/8 button

1шт.

14

192581C5

BRACKET

SUPPORT, separator RH side main, Serial Range: -1077

1шт.

14

1308818C2

SUPPORT

separator RH side main, Start Serial: 10728

1шт.

15

186199C91

DOOR

ASSY, separator RH front, includes ref. no. 18

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

16

195316C1

SUPPORT ASSY.

SUPPORT ASSY, engine deck

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

17

192323C2

SUPPORT

engine deck

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

18

179749C2

PRODUCT GRAPHIC

danger

3шт.

19

185035C1

PRODUCT GRAPHIC

caution

1шт.

20

185442C1

DECAL

PRODUCT GRAPHIC, caution engine shut-off

1шт.

21

196315C2

BAR

separator frame diagonal

2шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-2/ type 8

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 PHC P/T flange

1шт.

22

181092C2

SUPPORT ASSY.

SUPPORT ASSY, beater, LH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

22

181093C2

SUPPORT

ASSY, beater, RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

23

181085C2

DOOR

separator side

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

24

1319395C1

CONDUIT

STRIP, seal, 11.8 in., replaces 191496C1

1шт.

25

406391C1

PLUG,1"

1.0 inch, used when machine is not equipped with rotor sensor harness

1шт.
