(12-18[A]) - POWER, ENGINE BELT DIAGRAM

Запчасти Case IH 1440 (12-18[A]) - POWER, ENGINE BELT DIAGRAM Power

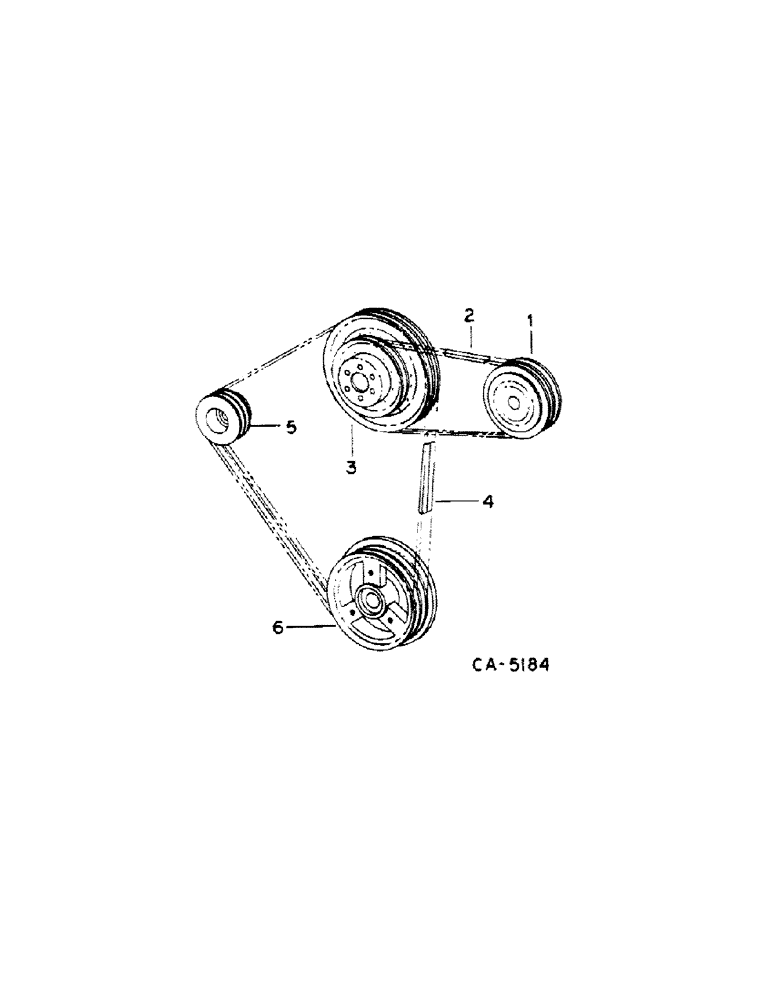

Схема запчастей Case IH 1440 - (12-18[A]) - POWER, ENGINE BELT DIAGRAM Power
4
1
6
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PULLEY ASSY, compressor, refer to group 13 under air conditioner compressor and condenser

1шт.

2

BELT, compressor drive, refer to group 13 under air conditioner compressor and condenser

1шт.

3

PULLEY, water pump, refer to Eng-5 engine catalog

1шт.

4

537072R91

SET OF BELTS

Matched, Fan

1шт.

5

PULLEY, alternator-generator, refer to group 8 under alternator-generator and mountings

1шт.

6

DAMPER ASSY, vibration, refer to Eng-5 engine catalog

1шт.
