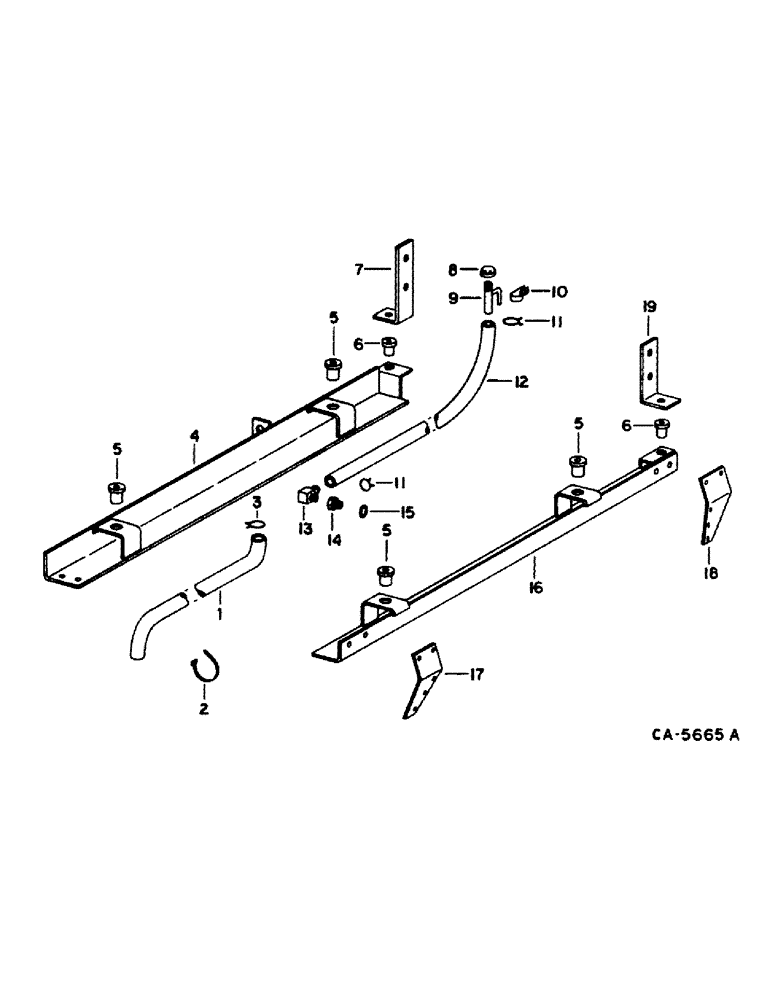

Запчасти Case IH 1440 (12-14) - POWER, ENGINE RAILS, S/N 6288 AND BELOW Power

1

183616C1

HOSE,38.1 mm ID x 1168.40 mm, SAE 20R1

crankcase breather, 46 in.

1шт.

2

306132C1

CABLE TIE,14.5" L

STRAP, hose lock (Replaces 291270R1)

1шт.

3

610320C1

CLAMP

hose

1шт.

4

182952C1

RAIL

ASSY, engine left

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

5

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR, engine front and rear

4шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 type 1

1шт.

9413969

NUT,5/8"-11, GB

5/8 CAD P/T lock type 5

1шт.

107813R1

WASHER

2-1/2 x 21/32 x .1793 PHC

1шт.

6

400159R1

BUMPER

ABSORBER

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2 crg type 1

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 CAD P/T lock type 5

1шт.

23043R1

WASHER

.469 x 2.000 x .105

1шт.

7

191365C1

SUPPORT

engine front

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 type 1

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 type 5

1шт.

8

221-1524

CAP,3/8" NPT

3/8 mall iron

1шт.

9

165203C91

FITTING

ASSY, crankcase drain

1шт.

10

587501R2

CLAMP

oil drain hose

1шт.

11

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, oil drain hose

2шт.

12

HOSE, crankcase oil drain, use 62 in. of 5/8 in. ID hose from 50 ft roll marked S118576

1шт.

13

864456R1

NIPPLE, LUBE

NIPPLE, oil drain hose

1шт.

14

165419C1

PLUG

oil pan drain

1шт.

15

3405H

GASKET

oil drain plug

1шт.

16

182958C2

RAIL

ASSY, engine right

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

17

191373C1

BRACKET

SUPPORT, engine rail LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

18

191374C1

SUPPORT ASSY.

SUPPORT, engine rail RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

19

191364C1

SUPPORT

BAR, front right

1шт.
