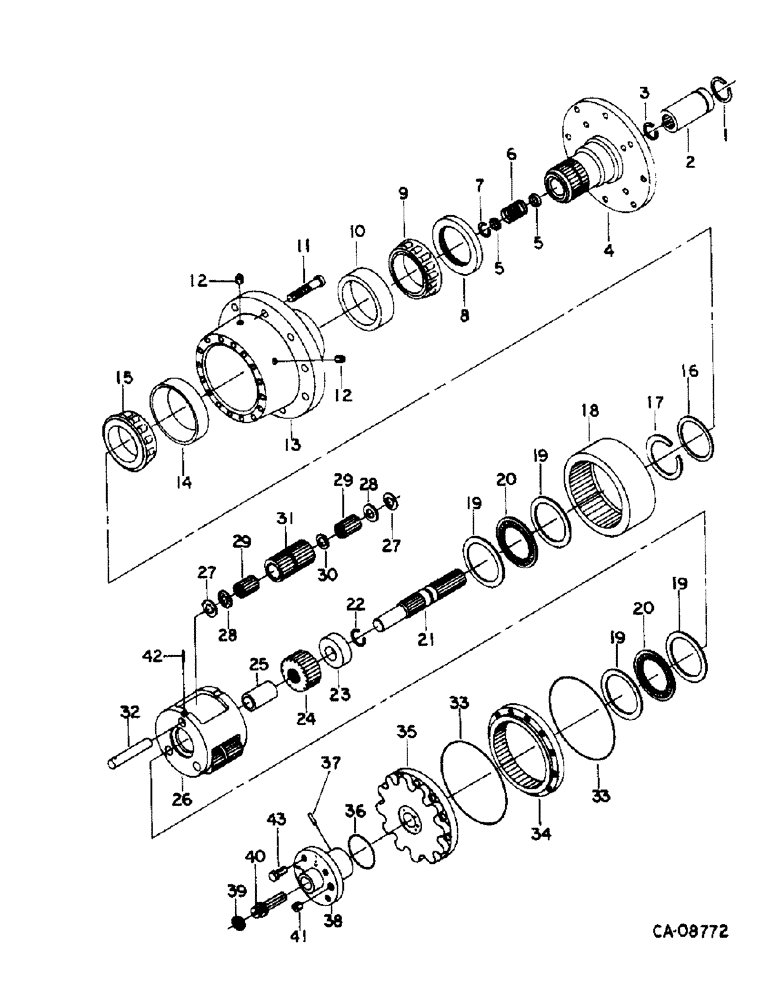

Запчасти Case IH 1470 (14-03) - SUSPENSION, GUIDE WHEEL DRIVE MOTOR Suspension

1314152C91

DRIVE

ASSY, torque hub, 24.4 to 1 ratio, replaces 1304139C91, includes ref. nos. 1 thru 43

2шт.

1304199C1

STUD

rear brake

1шт.

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

1шт.

25548R1

WASHER

.812 x 1.500 x .219 phc hdn

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

1

336000R1

SNAP RING,#175, 1.640", Ext

RING, 1.640 external retaining

2шт.

2

1304991C1

COUPLING

drive hub

2шт.

3

1304993C1

RING

hub retaining internal

2шт.

4

1304790C1

SPINDLE

hub drive

2шт.

5

1304796C1

WASHER

drive hub

4шт.

6

1304797C1

SPRING

drive hub

2шт.

7

1304994C1

RING

hub retaining internal

2шт.

8

SEAL, furnish kit 1304147C1

2шт.

9

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE, bearing

2шт.

10

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

CUP, bearing

2шт.

11

1304992C1

WHEEL BOLT

BOLT, hub drive

20шт.

12

444697

PLUG,Hex Soc, 3/8"-18

3/8 pln hex-skt pipe

4шт.

13

1304791C1

HUB

drive

2шт.

14

65721C1

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

CUP, bearing

2шт.

15

65720C91

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

CONE, bearing

2шт.

16

1304792C1

WASHER

hub drive

2шт.

17

RING, furnish kit, 1304147C1

2шт.

18

1304793C1

GEAR

drive hub internal

2шт.

19

WASHER, furnish kit, 1304147C1

8шт.

20

BEARING, furnish kit, 1304147C1

4шт.

426639

PLUG

3/4NF type 8

1шт.

21

1314153C1

DRIVE SHAFT

SHAFT, drive hub input

2шт.

22

583976R1

SNAP RING,#125, 1.179", Ext

RING, 1.179 external retainer

2шт.

23

1314154C1

SPACER

drive hub thrust

2шт.

24

1314156C1

GEAR

drive hub input

2шт.

25

1314155C1

SPACER

drive hub thrust

2шт.

26

1304794C1

CARRIER

ASSY, drive hub

2шт.

27

1314148C1

THRUST WASHER

thrust outer

12шт.

Ref #27 - Washer has one side steel, one side bronze. 10/23/95

1шт.

28

1314147C1

THRUST WASHER

thrust inner

12шт.

29

BEARING, furnish carrier assy, 1304794C1

12шт.

30

WASHER, furnish carrier assy, 1304794C1

6шт.

31

GEAR, furnish carrier assy, 1304794C1

6шт.

32

PIN, furnish carrier assy, 1304794C1

6шт.

33

O-RING, furnish kit, 1304147C1

4шт.

34

1304795C1

GEAR

drive hub ring

2шт.

35

COVER, furnish hub assy, 1314152C91

2шт.

631994R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

3/8 x 2-1/2 type 8

1шт.

1304990C1

STEP BOLT

BOLT, drive hub shoulder

1шт.

36

O-RING, furnish kit, 1304147C1 or 1304739C91

2шт.

37

PIN, furnish kit, 1304147C1 or 1304739C91

2шт.

38

COVER, furnish kit, 1304739C91

2шт.

39

SEAL, furnish kit, 1304147C1 or 130739C91

2шт.

40

ROD, furnish kit, 1304739C91

2шт.

41

444687

PLUG,Hex Soc, 1/8"-27

Pipe Hex Soc, 1/8"-27

2шт.

42

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

6шт.

43

897366R1

BOLT,Hex, 1/4"-20 x 3/4", G5, Full Thd

1/4 x 3/4 pln type 8

8шт.

1304147C1

SEAL KIT

torque hub seal, consists of seal (NSS), ring, retaining (NSS), (2) o-ring (NSS), o-ring (NSS), seal (NSS) (4) washer, thrust (NSS), (2) bearing, thrust (NSS), pin, spring (NSS)

2шт.

1304739C91

KIT

torque hub quick disconnect, consists of cap, cover (NSS), rod (NSS), seal (NSS), pin (NSS), o-ring (NSS)

2шт.
