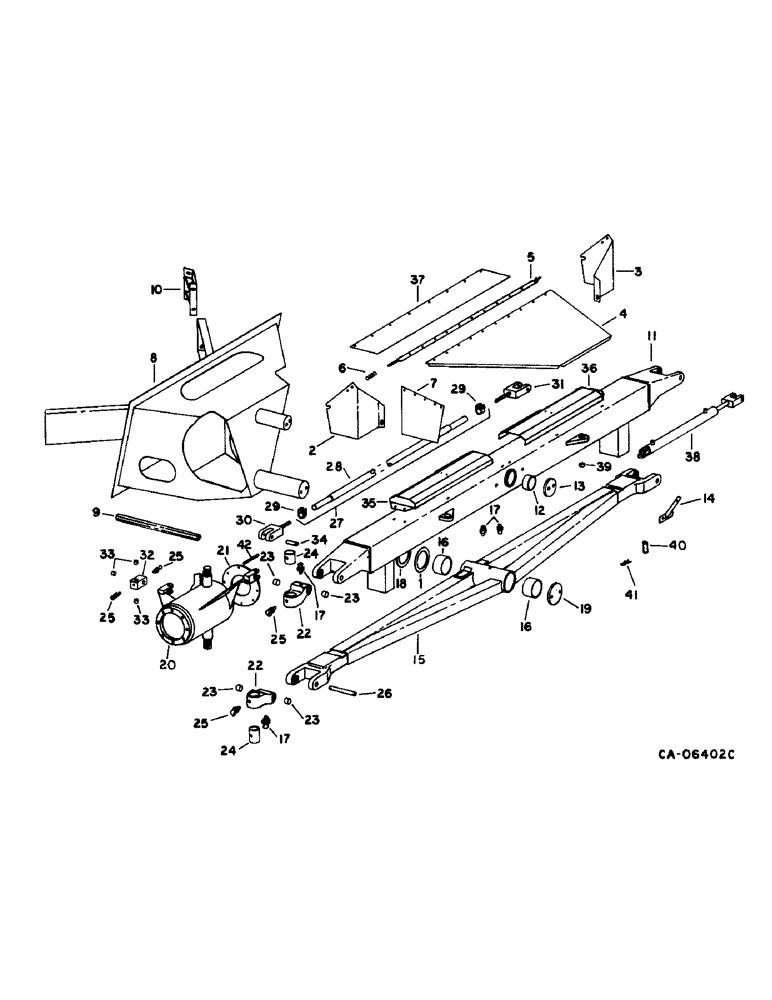

Запчасти Case IH 1470 (14-01) - SUSPENSION, STEERING AXLE, SUPPORT AND TIE ROD Suspension

1

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

pivot tube

1шт.

2

1304719C2

SUPPORT

shield LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

3

1304720C2

SUPPORT

shield RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

4

1304655C1

SHIELD

ASSY, steering axle

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

1304744C1

SUPPORT

ASSY, shield angle

1шт.

586591R1

COTTER PIN

PIN, 1/8 QA

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

6

203942C1

SPRING

shield pivot

1шт.

7

1304561C1

SEAL

tail box

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

8

1304122C1

SUPPORT

ASSY, steering axle

1шт.

380916R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

3/4 x 1-1/2 type 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 phc flange lock type 8

1шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 phc flange lock type 8

1шт.

9

1304129C1

STRIP

MOLDING, rubber

1шт.

10

1304985C1

SUPPORT

ASSY, tail box

2шт.

380916R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

3/4 x 1-1/2 type 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 phc flange lock type 8

1шт.

11

1304112C91

SUPPORT

BEAM ASSY, upper, Serial Range: -5500

1шт.

11

1304771C93

BEAM

ASSY, upper, includes ref. no. 12, Start Serial: 5501

1шт.

22210R1

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 C/PT znp hdl/s set

1шт.

12

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

upper beam

2шт.

13

1304124C1

RETAINER

CAP, upper rear pivot pin

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

14

1304656C1

SUPPORT

ASSY, shield

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16 x 1-3/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

15

1304118C92

SUPPORT

BEAM ASSY, steering axle lower, includes ref. no. 16

1шт.

16

1304117C1

BUSHING,127.71mm ID x 133.48mm OD x 63.5mm L

lower beam

2шт.

17

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

6шт.

18

1304111C1

WASHER

lower thrust nylon

1шт.

Ref #18 - I.D. = 5.06 O.D. = 7.0 Thick = .12

1шт.

19

1304126C1

RETAINER

CAP, lower rear pivot pin

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

20

1304176C92

HOUSING

ASSY, LH

1шт.

20

1304177C92

HOUSING

ASSY, RH

1шт.

1304152C1

NUT

housing slotted

1шт.

1304363C1

WASHER

2.01 x 3.50 x .38

1шт.

21654R1

PIN, SPLIT (COTTER),3/8" x 3"

1шт.

21

1304714C1

SEAL

COVER, steering housing

2шт.

172431

SCREW,Hex, 1/4" - 20 x 3/4"

1/4 x 3/4 h/hd tap

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

22

1304205C91

SUPPORT

BLOCK ASSY W/BUSHING, upper and lower, includes ref. nos. 23 and 24

1шт.

455184C1

PIN, slotted spring hvy

8шт.

1304121C1

THRUST WASHER

1-1/4 x 2-1/4 x .095 thrust

8шт.

1304609C1

THRUST WASHER

2-1/2 x 3-1/2 x .179 thrust

4шт.

23

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

8шт.

24

1304120C1

BUSHING

8шт.

25

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 ptf short 90D lub

8шт.

26

1304144C1

PIN

parallelogram

4шт.

27

1304478C1

TURNBUCKLE

ROD ASSY, tie, includes ref. nos. 28 and 29

1шт.

28

1304565C1

TURNBUCKLE

ROD ASSY, tie

1шт.

29

1304579C1

CLAMP

1.5 in. ID tie rod

2шт.

20105R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

5/8 x 2-3/4 type 8

1шт.

9413999

LOCK NUT,5/8"-11, GC

NUT, 5/8 cad P/T lock type 8

1шт.

30

1304600C1

YOKE

ASSY, LH thread

1шт.

31

1304601C1

YOKE

ASSY, RH thread

1шт.

32

1304607C91

BAR

BLOCK ASSY, connecting link, includes ref. no. 33

2шт.

1304589C2

STEP BOLT,Hex, 1/2" - 13 x 3.38", Gr 5

BOLT, link block

1шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 slt type 5

1шт.

119120

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32 x 1 1/4"

1шт.

33

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

connecting link block

8шт.

34

1304482C1

PIN

tie rod

2шт.

576484R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, 3/16" x 1 3/4", Slotted

1шт.

35

1304574C1

SHIELD

ASSY, beam LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 h/hd tap

1шт.

36

1304575C1

SHIELD

ASSY, beam RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 h/hd tap

1шт.

37

1304658C1

SEAL

axle shield

1шт.

38

CYLINDER ASSY, steering, refer to group 10 under steering cylinder

2шт.

39

1304603C1

BUSHING

self adjusting

2шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lube

2шт.

40

1304195C1

PIN

steering cylinder clevis

2шт.

41

1304197C1

PIN

retainer spring

4шт.

42

1304199C1

STUD

1/2 x 7-1/2 rear brake

16шт.

188617

NUT, 1/2 phc type 5

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.
