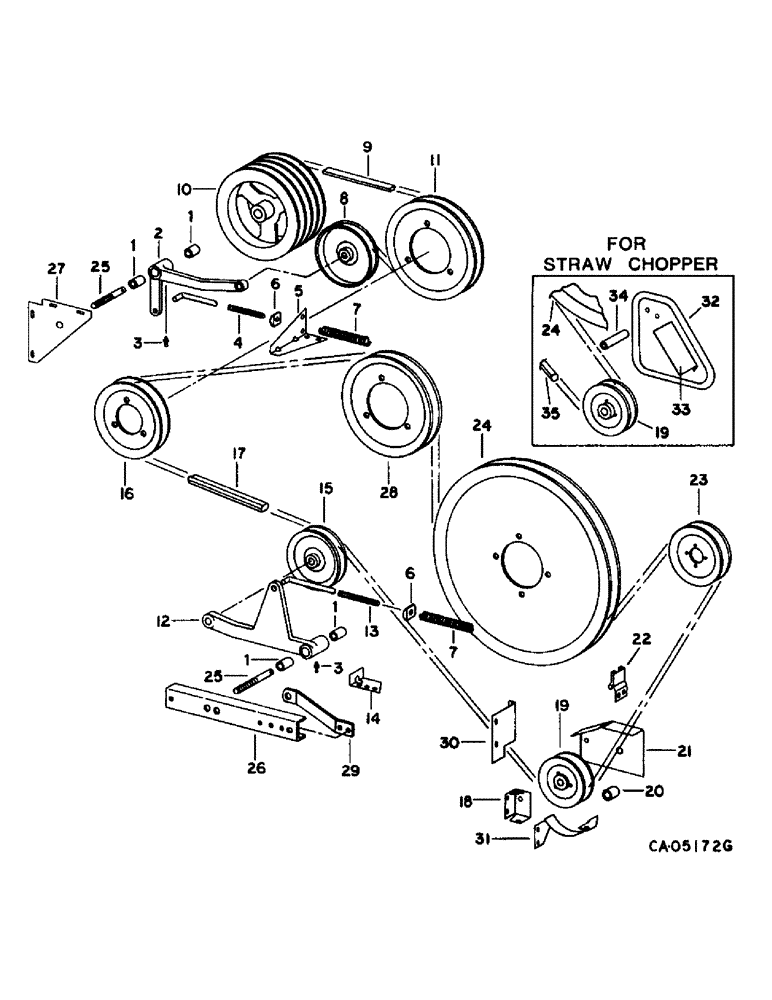

Запчасти Case IH 1470 (20-18) - SEPARATOR, BELT DRIVE - RH SIDE Separation

1

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

fan jackshaft drive and elevator drive

4шт.

2

191529C91

LEVER ASSY.

LEVER ASSY, fan jackshaft drive, includes ref. no. 1

1шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

2шт.

4

174520C2

ROD

fan jackshaft drive arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

21375R1

WASHER

.531 x 1.250 x .164

1шт.

5

1304718C1

SUPPORT

fan jackshaft drive rod

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

6

194652C1

PIVOT

BAR, pivot arm

2шт.

7

155311C1

SPRING

arm rod

2шт.

8

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

fan jackshaft drieve idler, 8 in. OD, 203.2 mm OD

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5

1шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

9

191305C1

V-BELT,0.879" W x 112.19" L

Fan jackshaft drive, OC 0.879" W x 112.19" L

1шт.

10

191603C2

PULLEY

feeder drive, 12 in. OD, 304.8 mm OD

1шт.

11

194777C1

PULLEY

ASSY, cleaning unit drive, 13.00 in. OD, 330.2 mm OD, Serial Range: -1179

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

183325C1

PULLEY

ASSY, cleaning unit drive, 13.00 in. OD, 330.2 mm OD, Start Serial: 1180

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 znd type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad P/T lock type 5

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

12

193447C91

ARM

LEVER ASSY, elevator jackshaft idler, includes ref. no. 1

1шт.

131017

WASHER

.812 x 1.469 x .108

1шт.

13

191531C2

ROD

elevator drive idler lever

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

21375R1

WASHER

.531 x 1.250 x .164

1шт.

14

193450C2

BRACKET

SUPPORT, elevator drive bar

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

673214R91

PULLEY

elevator idler, 7-5/16 in. OD, 186 mm OD

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

16

193948C1

PULLEY,39.61mm W x 254mm OD

ASSY, jackshaft drive, 9.75 in. OD, 247.7 mm OD

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21843R1

WASHER

.406 x 1.000 x .209

1шт.

17

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Elevator drive, OC 0.879" W x 255.99" L

1шт.

18

188253C2

SUPPORT

elevator drive fixed idler, replaces 1309455C1

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

19

673214R91

PULLEY

elevator drive fixed idler, 7-5/16 in. OD, 186 mm OD

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 x 2-1/4 type 5

1шт.

124847

COLLAR

5/8 jam type 5

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

20

(Not used this application)

1шт.

21

188254C1

SUPPORT

drive fixed idler, Serial Range: -5500

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

21

1302350C1

SHIELD

SUPPORT, drive fixed idler, Start Serial: 5501

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

22

(Not used this application)

1шт.

23

195161C1

PULLEY

ASSY, beater drive, 8-3/8 in. OD 212.9 mm OD

1шт.

120376

NUT,5/16"-18, G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

24

193682C1

PULLEY

ASSY, shaker shaft driven, 25 in. OD, 635.0 mm OD

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120419

WASHER, .344 x .688 x .051

1шт.

25

188298C2

STUD

jackshaft pivot arm

2шт.

280954

NUT,3/4"-10, G5

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

26

186588C2

CHANNEL

pivot arm support, replaces 186669C2

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

27

192011C1

SUPPORT

fan jackshaft idler drive

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

28

183325C1

PULLEY

ASSY, fan and elevator jackshaft driven, 13.00 in. OD, 330.2 mm OD (Replaces 182325C1)

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad P/T lock type 5

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

29

182676C2

SUPPORT

elevator pivot

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

30

1302067C1

GUIDE

elevator belt upper, Serial Range: -10000

1шт.

30

1302352C1

GUIDE

elevator, Start Serial: 10001

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

31

1302353C1

GUARD

SUPPORT, elevator fixed idler, used w/straw chopper

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

33

1302351C1

DEFLECTOR

SUPPORT, elevator rear shield, used w/straw chopper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

34

564737R1

SPACER,7/8" Tube x 2 1/16"

.656 x .88 x 2.06, used w/straw chopper

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

50115K

WASHER

.656 x 2.5 x .105 pln

1шт.

35

181055C1

BELT,0.879" W x 200.99" L

V-BELT , Cleaning unit drive, OC, Used w/straw chopper 0.879" W x 200.99" L

1шт.
