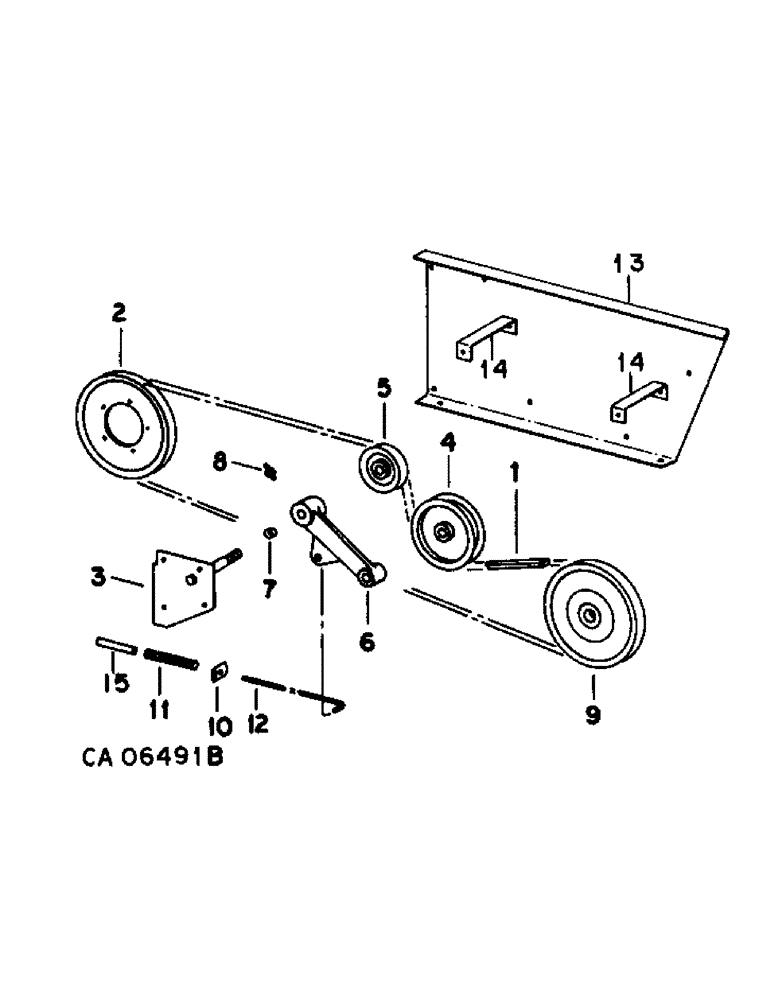

Запчасти Case IH 1470 (20-14) - SEPARATOR, STRAW SPREADER DRIVE, SERIAL NO. 10060 AND ABOVE W/STRAW CHOPPER Separation

1

196371C1

BELT,0.630" W x 222.59" L

V-BELT , Drive, OC 0.630" W x 222.59" L

1шт.

2

566516R91

PULLEY ASSY.

PULLEY ASSY, drive, 9.75 in. OD, 247.7 mm OD

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

1315275C1

SUPPORT ASSY.

SUPPORT ASSY, drive tightener, replaces 1302354C1

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

.531 x 1.062 x .074

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

181126C91

PULLEY

drive tightener, 6.75 in. OD, 171.5 mm OD

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

5

181127C1

PULLEY

idler, with .635 ID bearing, used with support 1302354C1

1шт.

5

1315269C1

PULLEY

idler, with .510 ID bearing, used with support 1315275C1

1шт.

6

181153C91

LEVER ASSY.

LEVER ASSY, tightener arm, includes ref. no. 7

1шт.

7

165704C1

BUSHING

tightener lever

2шт.

25548R1

WASHER

.812 x 1.500 x .219 phc hdn

1шт.

8

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str lub

1шт.

9

181196C2

PULLEY

driven, 10 in. OD, 254.0 mm OD

1шт.

25234R1

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

5/16 x 2-1/4 phc type 8

1шт.

9413977

NUT

5/16 phc P/T lock type 8

1шт.

25543R1

WASHER,.344" x 11/16" x .098", HDN

.344 x .688 x .098 phc hdn

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

194652C1

PIVOT

BAR, tightener rod

1шт.

11

1315223C1

SPRING

tightener rod, replaces 523677R1

1шт.

12

181152C1

ROD

drive idler

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

495-11053

WASHER,1/2", SAE

.531 x .1.062 x .074

1шт.

13

1303034C1

SHIELD

drive, Serial Range: -10059

1шт.

13

1309121C3

SUPPORT

SHIELD, drive, Start Serial: 10060

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

14

1309354C1

SUPPORT

CHANNEL, drive shield

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

1315197C1

SPACER

spreader drive

1шт.

1315271C91

PACKAGE

support assy, drive tightener, consists of

1шт.

1315275C1

SUPPORT ASSY.

SUPPORT ASSY, drive tightner

1шт.

1315269C1

PULLEY

idler

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

.531 x 1.062 x .074

1шт.
