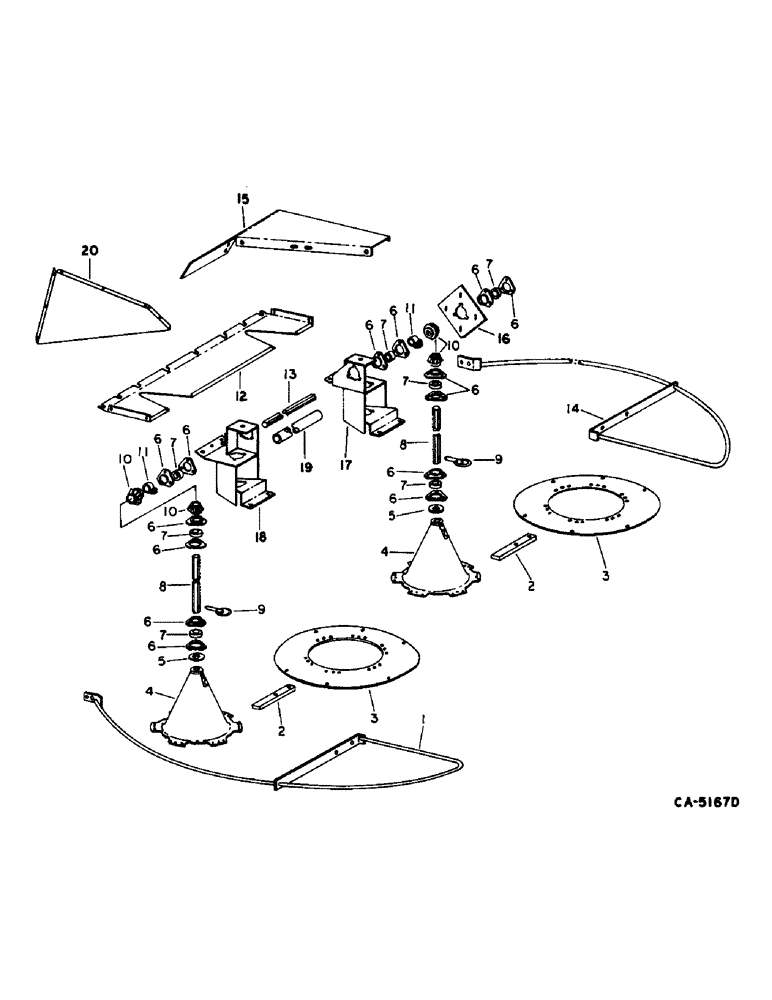

Запчасти Case IH 1470 (20-11) - SEPARATOR, STRAW SPREADER Separation

1

1304593C1

SHIELD

ASSY, straw spreader LH, Serial Range: -10000

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

194198C2

SKID/SHOE

STRIP, straw spreader

12шт.

180082

BOLT (SPREADER),Hex, 5/16" - 18 x 1 3/8", Gr 5

BOLT, 5/16 x 1-3/8 type 5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

3

192252C1

RETAINER

straw spreader bats

2шт.

4

188218C2

SUPPORT ASSY.

SUPPORT ASSY, straw spreader

2шт.

5

183041C1

WASHER

WASHER, straw spreader cone

2шт.

6

571424R1

FLANGE

straw spreader bearing

14шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flg lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd lock

1шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING, straw spreader

7шт.

8

192240C1

SHAFT

BAR, straw spreader

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

9

1319303C1

PIN

straw spreader, replaces 192235C2

2шт.

10

185410C1

GEAR-SET

GEAR SET, spreader drive, 14T

2шт.

11

104226H

CLAMP

spreader drive gear

2шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

195138C5

SUPPORT

spreader dust

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

13

192242C4

SHAFT

BAR, straw spreader cross, shaft

1шт.

14

1304594C1

SHIELD

ASSY, straw spreader RH, Serial Range: -10000

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

15

(Not used this application)

1шт.

16

186506C1

SUPPORT

BAR, spreader bearing

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

1317897C1

SUPPORT

ASSY, spreader drive, LH, replaces 186551C2

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 znd type 5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

18

1317898C1

SUPPORT

ASSY, spreader drive, RH, replaces 186550C2

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 znp type 5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

19

(Not used this application)

1шт.

20

1302105C1

DEFLECTOR

corner LH

1шт.

20

1302106C1

DEFLECTOR

corner RH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
