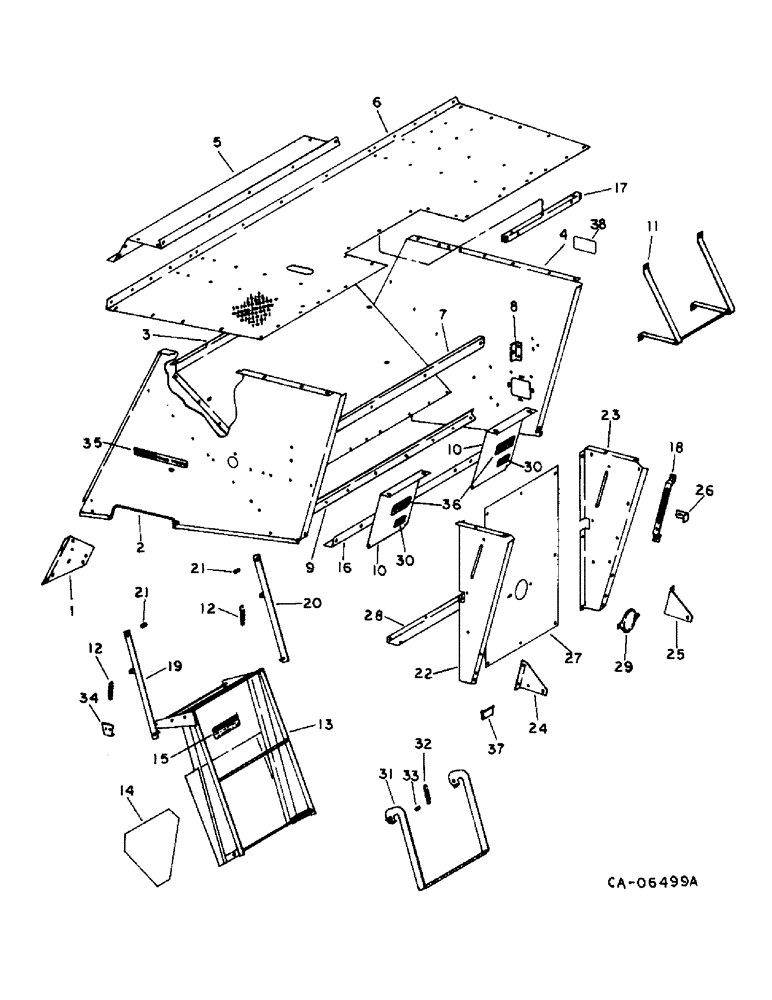

Запчасти Case IH 1470 (20-04) - SEPARATOR, SEPARATOR HOOD AND SERVICE LADDER Separation

1

186912C1

SUPPORT

separator hood LH

1шт.

1

186913C1

SUPPORT

separator hood RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

2

1304456C2

SUPPORT

separator hood side LH, includes ref. no. 35

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

3

192313C5

SUPPORT

straw discharge

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

1309439C91

SUPPORT

separator hood side RH, includes ref. no. 38

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

191315C1

SUPPORT

engine deck

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, 5/16 x 3/4 self tap

1шт.

541310R1

SPRING NUT

5/16 type n speed

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

6

193102C3

SUPPORT

service deck

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

7

185399C2

CHANNEL

ASSY, service ladder support

1шт.

8

194311C1

ANGLE

upper service ladder

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

9

194305C1

ANGLE

deflector stiffner

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

186190C93

SUPPORT

hood rear, not used w/straw chopper

2шт.

10

1300294C91

SUPPORT

ASSY, hood rear access panel, used w/straw chopper, includes ref. nos. 30 and 36

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

541310R1

SPRING NUT

5/16 N-type speed

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

12

165

SPRING

service ladder pivot

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

13

1314033C91

LADDER

ASSY, rear service, includes ref. nos. 14 and 15

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

14

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

SMV emblem

1шт.

15

2754442R1

PRODUCT GRAPHIC

danger

1шт.

16

192309C2

ANGLE

hood support rear

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

488837C1

SPRING NUT

rear hood support

1шт.

176978C1

THUMB SCREW,5/16" - 18 x 0.75"

rear hood access thumb

1шт.

17

186971C1

ANGLE

service deck rear support

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

18

186980C1

SUPPORT

ladder pivot

2шт.

19

185223C1

LEVER ASSY.

LEVER ASSY, ladder slip LH

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

179374R1

WASHER, .531 x 1.250 x .054

1шт.

20

185224C1

LEVER ASSY.

LEVER ASSY, ladder slip RH

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

21

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

ladder slip lever

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad P/T lock type 5

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

22

185404C3

PLATE

SUPPORT, rear service ladder vertical LH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

488837C1

SPRING NUT

5/16 speed

1шт.

23

185405C3

PLATE

SUPPORT, rear service ladder vertical RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

488837C1

SPRING NUT

5/16 speed

1шт.

24

185227C3

BAR

rear service ladder pivot LH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

25

185228C3

SUPPORT

rear service ladder pivot RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

26

186606C2

BAR

PLATE, ladder stop

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

27

186970C2

PLATE

SHEET, ladder opening front

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1/4 x 1/2 flange lock

1шт.

92068R1

NUT

ladder sheet

1шт.

28

186972C2

SUPPORT

ladder opening bottom

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

29

188315C1

DOOR

fuel tank shut-off access, Serial Range: -20000

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

24488R1

NUT, 1/4 P/T lock type 5

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

935735R1

WING NUT

1/4 wing

1шт.

30

2754446R1

PRODUCT GRAPHIC

caution

2шт.

31

181181C1

LADDER

STEP ASSY, service ladder extension

1шт.

23042R1

WASHER

.531 x 1.000 x .027

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

32

472179R1

SPRING

over center ladder extension

1шт.

33

SPACER, spring pivot, use 7/8 in. length from roll marked 417200C2

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

34

1304722C1

SUPPORT

ANCHOR, ladder spring

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

35

174797C1

DECAL

PRODUCT GRAPHIC, danger

2шт.

36

1302722C1

PRODUCT GRAPHIC

danger chopper

2шт.

37

1338021C1

PIN,7.94mm OD

service ladder

1шт.

38

185442C1

DECAL

PRODUCT GRAPHIC, caution engine

1шт.
