Запчасти Case IH 1470 (20-03) - SEPARATOR, MAIN SILL AND BEAM BOX Separation

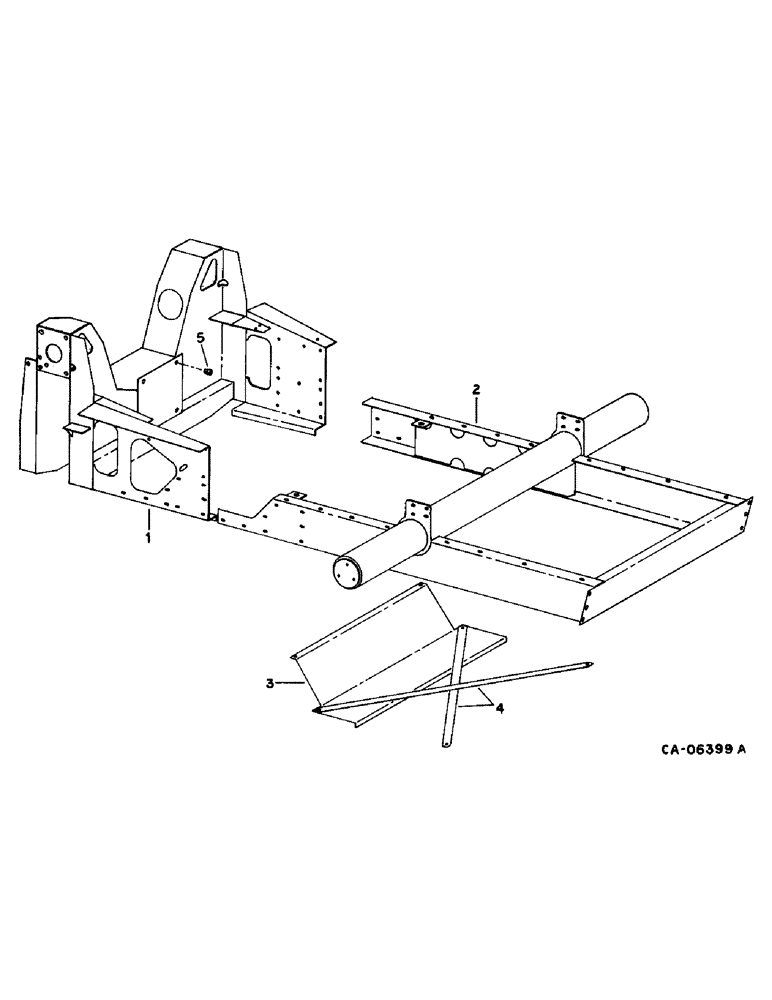

Схема запчастей Case IH 1470 - (20-03) - SEPARATOR, MAIN SILL AND BEAM BOX Separation
1
3
2
4
5

Артикул

Название

Примечание

Количество

1

1304155C2

SUPPORT

BOX ASSY, beam

1шт.

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 phc flange lock type 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 phc hdn

1шт.

2

1304110C1

SUPPORT

FRAME ASSY, sub

1шт.

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

1шт.

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 phc flange lock type 8

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

.406 x 1.125 x .134 phc hdn

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 phc hdn

1шт.

1304135C1

SUPPORT

WASHER, 5/8 clipped hdn

1шт.

3

1304135C1

SUPPORT

SHIELD, sub frame bottom

1шт.

4

1304331C1

BAR

sill cross brace

2шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2-13 prevailing torque

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

5

54700R1

DOWEL

BUSHING, tapered split dowel

2шт.

Выбрано товаров: 22
