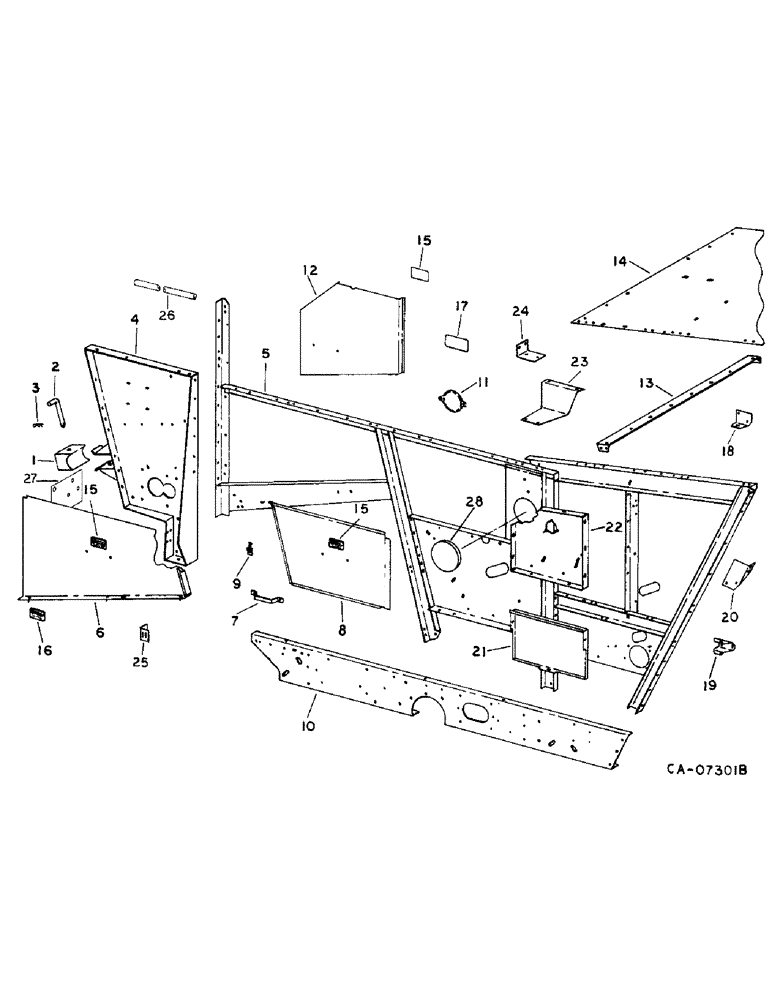

Запчасти Case IH 1470 (20-01) - SEPARATOR, SEPARATOR SIDES Separation

1

193834C1

BLOCK

feeder pivot

2шт.

2

192533C2

ROD

feeder pivot block

2шт.

3

486830R1

COTTER PIN

PIN, quick attachable cot

2шт.

4

1304100C4

POST

ASSY, LH front

1шт.

4

1304101C4

POST

ASSY, RH front

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 type 8

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 type 8

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 phc flange lock type 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 phc flange lock type 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 phc hdn

1шт.

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

21/32 x 1-1/4 x 11 GA znd

1шт.

5

1304040C1

SIDE ASSY.

SIDE ASSY, separator LH, Serial Range: -10000

1шт.

5

1304167C1

SIDE PLATE

SIDE ASSY, separator LH, Start Serial: 10001

1шт.

5

1304733C91

SIDE ASSY.

SIDE ASSY, separator RH, Serial Range: -10000

1шт.

5

1304762C91

SIDE PLATE

SIDE ASSY, separator RH, includes ref. no. 17, Start Serial: 10001

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 type 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 phc flange lock type 8

1шт.

432366

HOLE PLUG BUTTON,1 3/8"

PLUG, 1-3/8 hole dia. znp button

1шт.

406391C1

PLUG,1"

1 in. diameter button

1шт.

6

186178C91

DOOR

ASSY, separator LH front, includes ref. nos. 15 and 16

1шт.

7

160638C1

HANDLE

separator side and front door

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

8

186188C91

DOOR

ASSY, separator LH side, includes ref. no. 15

1шт.

9

167800C1

CLIP

door retainer

15шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

10

1304102C1

RESTRICTOR

SUPPORT, separator LH side main

1шт.

10

1304103C1

RESTRICTOR

SUPPORT, separator RH side main

1шт.

11

188315C1

DOOR

separator side RH

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

273924

SNAP RING

NUT, 1/4 cad P/T lock type 5

1шт.

935735R1

WING NUT

1/4 wing

1шт.

12

186199C91

DOOR

ASSY, separator RH front, includes ref. no. 15

1шт.

13

195316C1

SUPPORT ASSY.

SUPPORT ASSY, engine deck

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

14

192323C2

SUPPORT

engine deck

1шт.

15

179749C2

PRODUCT GRAPHIC

danger

3шт.

16

185035C1

PRODUCT GRAPHIC

caution

1шт.

17

185442C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

18

1304617C1

ANGLE

fast leveling valve

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

19

1304929C1

SUPPORT

BRACKET, filter

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

20

1304638C1

SUPPORT

BRACKET, reel start valve

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

21

181085C2

DOOR

separator side

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

22

181092C2

SUPPORT ASSY.

SUPPORT ASSY, beater LH

1шт.

22

181093C2

SUPPORT

ASSY, beater RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

23

1301426C1

SUPPORT

BRACKET, 4 wheel drive valve

1шт.

24

1304922C1

ANGLE

BRACKET, rear brake valve

1шт.

25

1304988C3

ANGLE

level limit switch mounting

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

26

191496C1

SEALING STRIP

seal, 11.8 in., 299.7 mm

1шт.

27

1310779C2

BAR

flow divider and reel drive valve, Serial Range: 10001-12000

1шт.

27

1310779C2

BAR

flow divider and reel drive valve, Start Serial: 12001

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16 x 3 znd type 5

1шт.

108122

SPARE PART

BOLT, 3/8 x 1 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

27

1314087C1

BAR

flow divider and reel drive valve, see note, Serial Range: 12001-20000

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1/4 x 2-1/4 type 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

28

406391C1

PLUG,1"

1 inch, used when machine is not equipped with rotor sensor harness

1шт.
