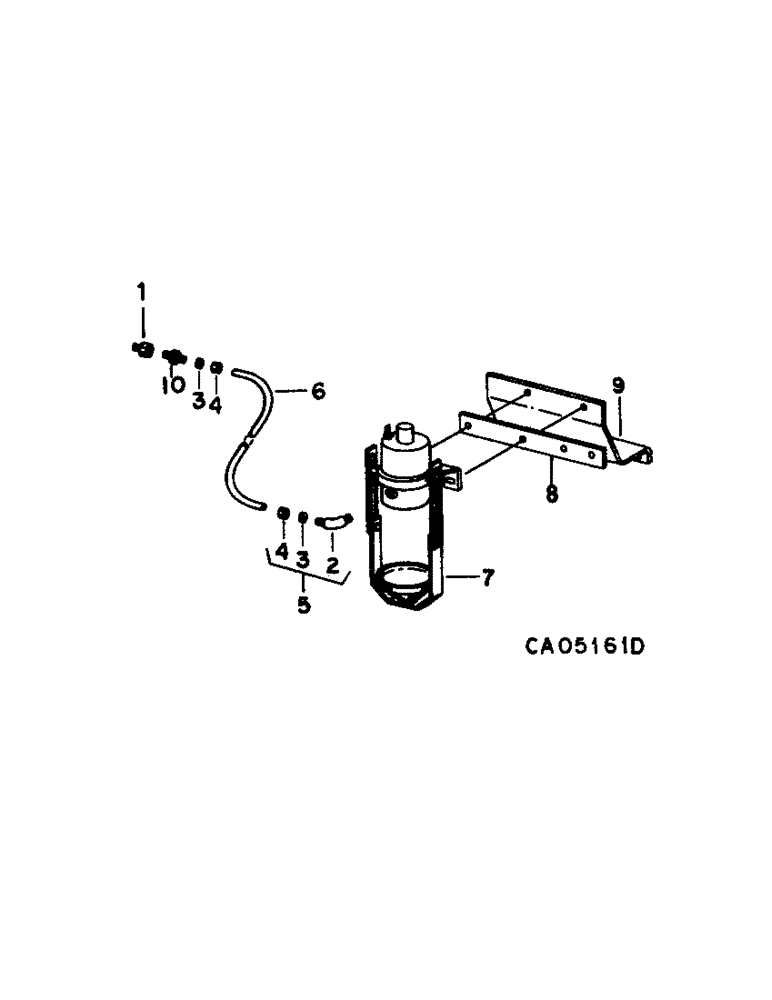

Запчасти Case IH 1470 (12-12) - POWER, ETHER STARTING Power

1

269635R91

NOZZLE CAP

NOZZLE, ether

1шт.

2

140303

ELBOW

ball sleeve

1шт.

3

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

2шт.

4

121220

TUBE NUT

NUT, tube connector

2шт.

5

140304

ELBOW

1/8-27 90 deg ball sleeve tube, includes ref. nos. 2,, 3 and 4

1шт.

6

TUBE, ether start, use 20 in. of 1/8 copper tubing from 60 ft. roll marked 995059R1, 2 nuts 121220 and 2 sleeves 121322

1шт.

121220

TUBE NUT

NUT, 1/8 pln ball sleeve tube

2шт.

121322

SLEEVE,Ball Type, 1/8" tube

1/8 pln ball

2шт.

7

121842C91

SOLENOID SWITCH

SOLENOID ASSY, ether injection, composed of

1шт.

395686R1

GASKET

ether starting injector

1шт.

121851C1

RETAINER

injector

1шт.

8

107607C2

BAR

relay mounting

1шт.

120376

NUT,5/16"-18, G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

104412C2

BRACKET

ether solenoid mounting

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

NLS

NO LONGER SERVICED

CONNECTOR, tube

1шт.

385064R91

FLUID

starting, 12 oz. can, not illustrated

1шт.
