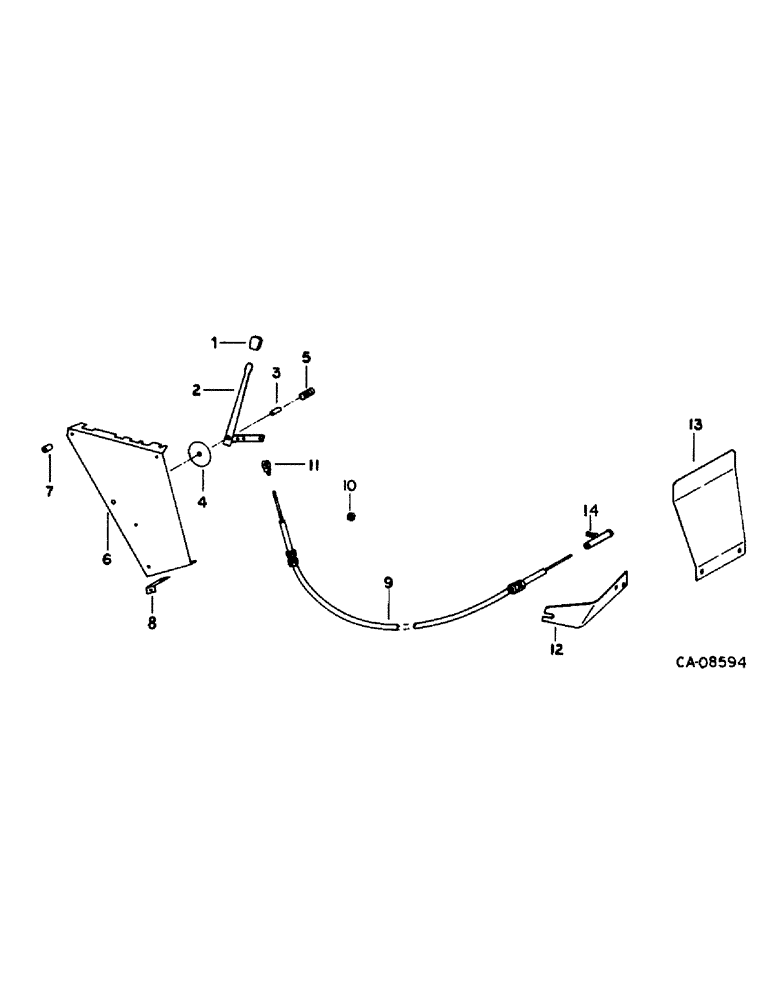

Запчасти Case IH 1470 (12-11) - POWER, THROTTLE CONTROLS, SERIAL NO. 10001 AND ABOVE Power

1

120197C2

KNOB

lever

1шт.

2

1301183C92

LEVER

ASSY, throttle control, or

1шт.

2

1322187C1

LEVER

ASSY, throttle control

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

3

154397C1

SPACER,5/8" Tube x 1 1/4"

.407 x .625 x 1.25 pipe

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

941133C1

WASHER

lever

1шт.

5

PO22

SPRING

lever

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

6

1301185C1

SUPPORT

control

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 crg type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

7

SA10227

SPACER,3/8" Pipe x 1 1/8"

.493 x .675 x 1.125

2шт.

8

1301242C1

BRACKET

ANGLE, support

1шт.

9

1329389C1

CABLE

ASSY, throttle, replaces 196506C1

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

10

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

grain tank

2шт.

10

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

cable seal

1шт.

11

110322

CLEVIS, adj rod end, 1, Start Serial: 12001

2шт.

11

NLS

NO LONGER SERVICED

CLEVIS, adj rod end, 2, Serial Range: -12000

2шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

20155R1

CLEVIS PIN,3/16" x .719"

PIN, 3/16 x .719 clevis

1шт.

12

187534C2

SUPPORT

rear, Serial Range: -12000

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

13

183777C2

SUPPORT

SHIELD, cable rear, Serial Range: -12000

1шт.

13

1265673C1

SHIELD

cable rear, Start Serial: 12001

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

120319C2

BALL JOINT

JOINT, ball, Start Serial: 12001

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.
