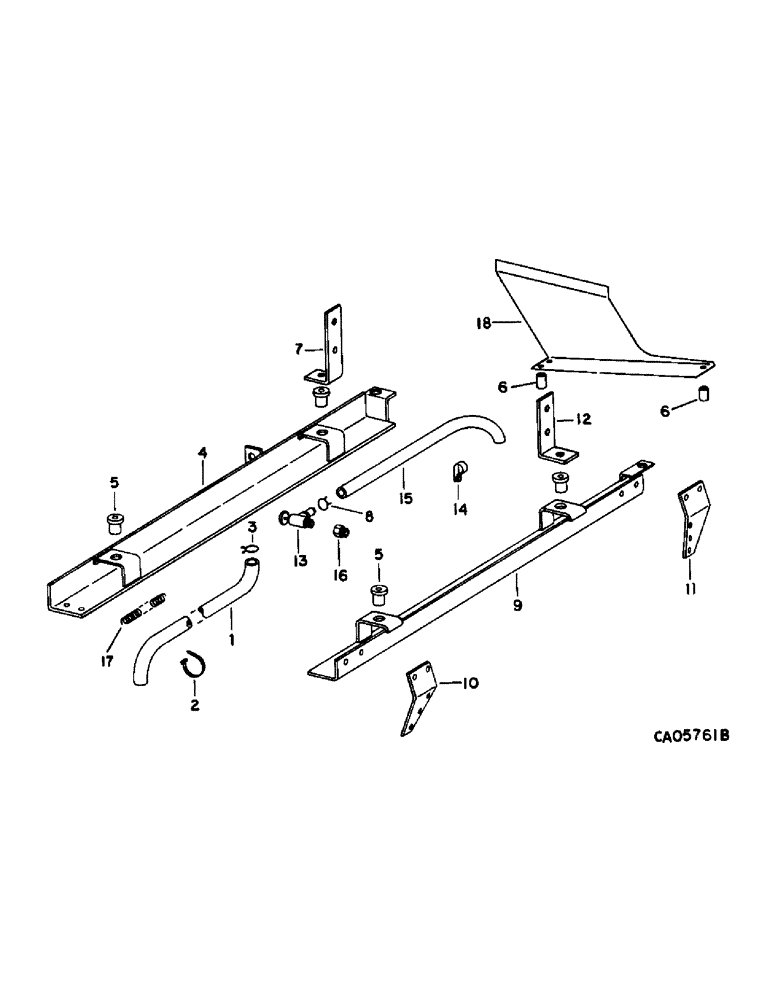

Запчасти Case IH 1470 (12-09) - POWER, ENGINE RAILS Power

1

183616C1

HOSE,38.1 mm ID x 1168.40 mm, SAE 20R1

crankcase, 46 in., 1168.4 mm

1шт.

2

291207C1

CLAMP

STRAP, breather hose

2шт.

3

610320C1

CLAMP

hose

1шт.

4

182951C2

RAIL ASSY.

RAIL ASSY, engine left, replaces 195407C1

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

5

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR, engine front and rear

4шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 type 5

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8 cad P/T lock type 5

1шт.

107813R1

WASHER

21/32 x 2-1/2 x 3/16 C-Z

1шт.

6

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

5/8 x 1.000 tube

3шт.

7

191365C1

SUPPORT

engine front

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 type 1

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 x 3-3/4 type 5

1шт.

8

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, oil drain hose

1шт.

9

182957C3

RAIL ASSY.

RAIL ASSY, engine right, replaces 195408C1

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

10

182912C3

SUPPORT

engine rail LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

11

1304707C2

SUPPORT

engine rail RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

12

191364C1

SUPPORT

front right

1шт.

13

301803R1

SHUT-OFF VALVE

VALVE ASSY, crankcase drain shut-off

1шт.

14

299606C1

CLIP

oil drain hose

2шт.

15

HOSE, crankcase oil drain, use 36 in. of 5/8 ID hose from 25 ft. roll marked S118576

1шт.

16

175778H1

ADAPTER

ADAPTOR, 1/2 x 1/4 reducing

1шт.

17

1301436C1

SPRING

vent hose internal support

1шт.

18

1324762C1

DEFLECTOR

lower air

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 znd type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.
